Maintenance
5-9

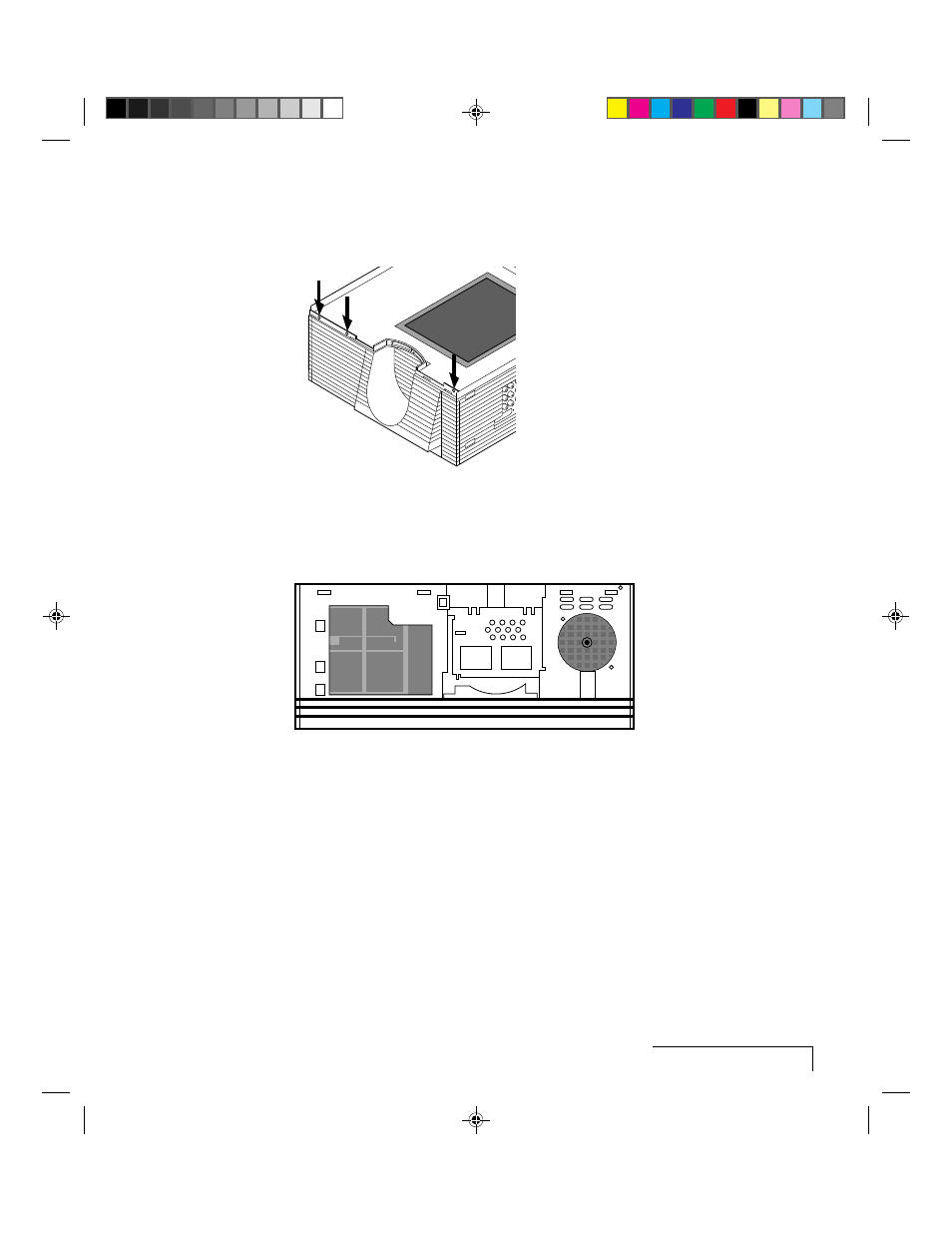

6 Locate the three screws at the top of the right side panel. Remove the
screws and unsnap the panel, from the rear first.
Figure 5-10, The screws at the top of the right side panel
7 The filters are now exposed (see Figure 5-11). Remove the retaining screw
to access the rear filter. Pull the front filter out.
Figure 5-11, The two right side filters
To replace the covers, reverse steps one through five, taking care to align the
top and side covers. Make sure to reattach the ribbon cable before you
replace the top cover. The ribbon cable is keyed, so it will only reattach on
one side. Also, make sure that the arm release lever is in the release position
(fully to the left) before you replace the top cover.
