Ask Proxima 9100 User Manual
Page 26
Setting Up Your Projector
1-13
Workstations
13C3 Video Connections (except Silicon Graphics workstations)
If your workstation has a 13C3 connector at the computer video port:
1 Disconnect your computer-to-monitor cable at the computer end.
2 Connect the free end of the monitor cable to the projector’s COMPUTER
OUT connector.
3 Use the Proxima 13C3 to LCD Connector Cable (C801-6) between the
projector and the computer. Connect the end marked “LCD” to the
projector’s COMPUTER IN connector, and the end marked “COMPUTER”
to the computer’s video output connector.
Proxima Cable
Monitor Cable

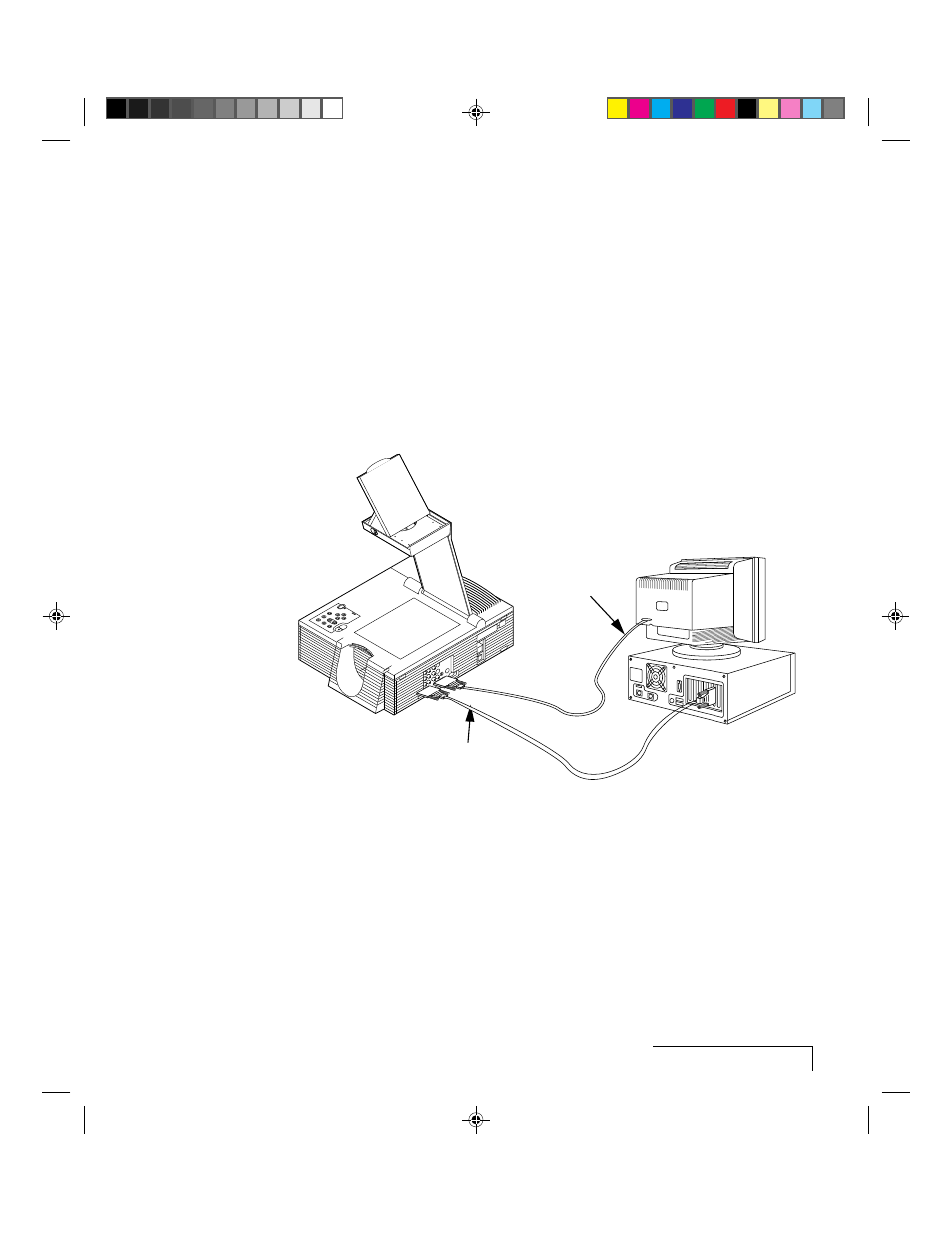

Figure 1-17, Workstation video out connection to projector
