Chapter Three
The Input Source menu
Source Select
SourceMode
Input Measurements
Video 1
EWS1 (140 MHz)
HSync: 0.00 KHz
Current Mode:
S-Video 1
Computer
VSync: 0.00 Hz
Lines: 0 Sense: HHHH
Video 2
S-Video 2
Select
Cancel
EWS2 (130 MHz)
EWS3 (135 MHz)
1280 x 1024 81.25 KHz 76 Hz
1280 x 1024 81.97 KHz 76 HZ
1280 x 1024 80 KHz 76 Hz
Menus
Cyclops
Tools
Advanced
Projector
Input Source
Audio
Preferences
MediaExpress

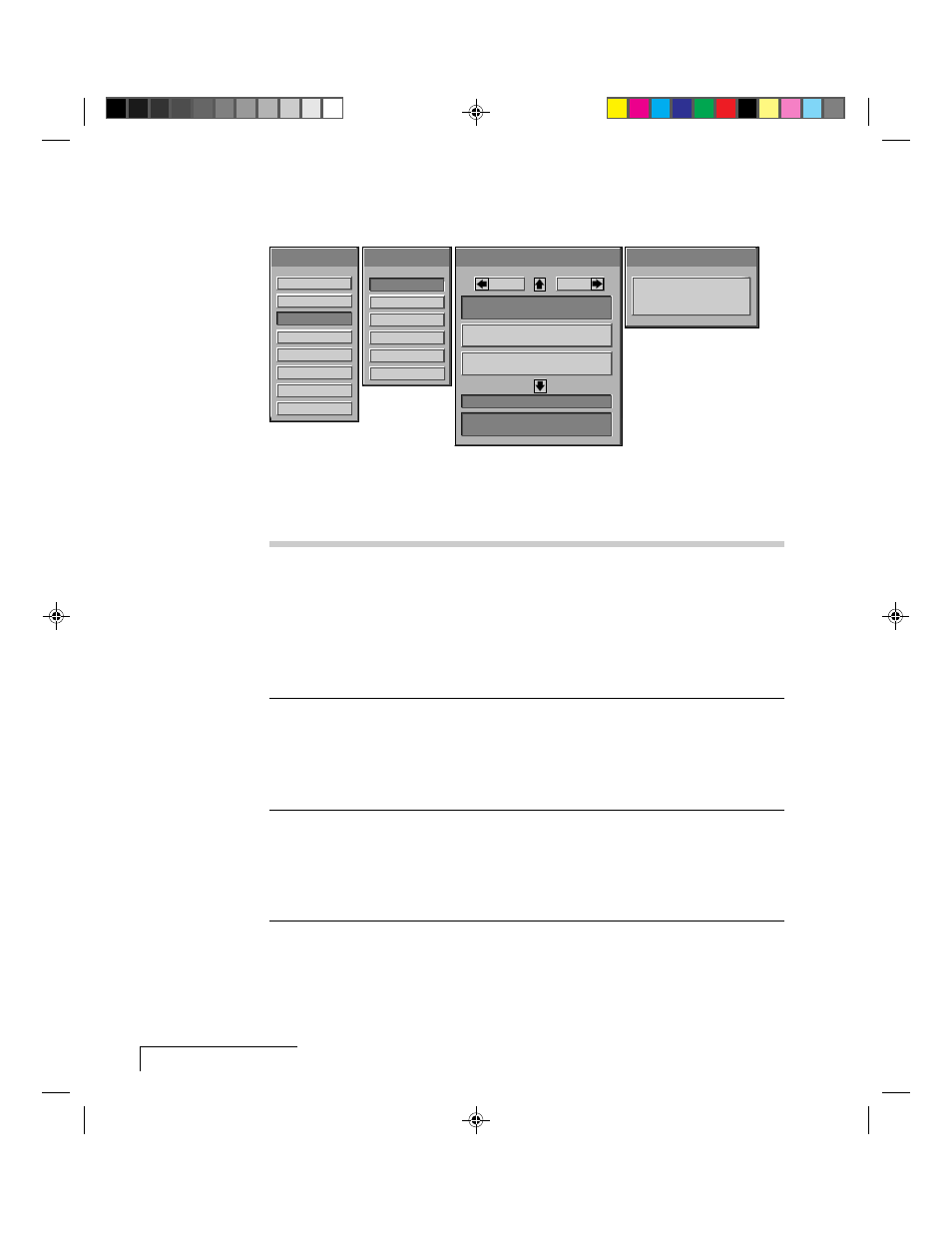

Figure 3-4, The Input source menu
USE THIS
...TO DO THIS:
OPTION...
Source Select
Select the input source:
• Computer
• Video 1
• S-Video 1
• Video 2
• S-Video 2
• MediaExpress (optional)
Source Mode
Select from a list of video or computer standards:
• NTSC
• PAL
• SECAM
• Computer compatibility
Input
View projector readings for the selected input source:
Measurements
• VSync (vertical sync frequency)
• HSync (horizontal sync frequency)
• Lines (number of h-sync pulses per v-sync)
• Sense (monitor input sense line levels)
