1-14 Chapter One
Silicon Graphics 13C3 Video Connections
If you have a Silicon Graphics workstation with 13C3 connectors at the
computer and monitor video ports:
1 Disconnect your computer-to-monitor cable at the computer end.
2 Connect the free end of the monitor cable to the Proxima
SGI to LCD adapter (C947-12).
3 Connect the free end of the SGI to LCD adapter to the projector’s
COMPUTER OUT connector.
Note: SGI workstation users who do not connect an external monitor will
need to set DP9100 sense lines to achieve the desired display resolution.
Refer to Appendix C: Sense Lines for more information.
4 Use the Proxima SGI 13C3 to LCD connector cable (C943-6) between the
projector and the computer. Connect the end marked “LCD” to the
projector’s COMPUTER IN connector, and the end marked “COMPUTER”
to the SGI workstation’s video output connector.
MAC II CPU
SGI to LCD Adapter
Proxima SGI Cable
Monitor Cable
WORKSTATION

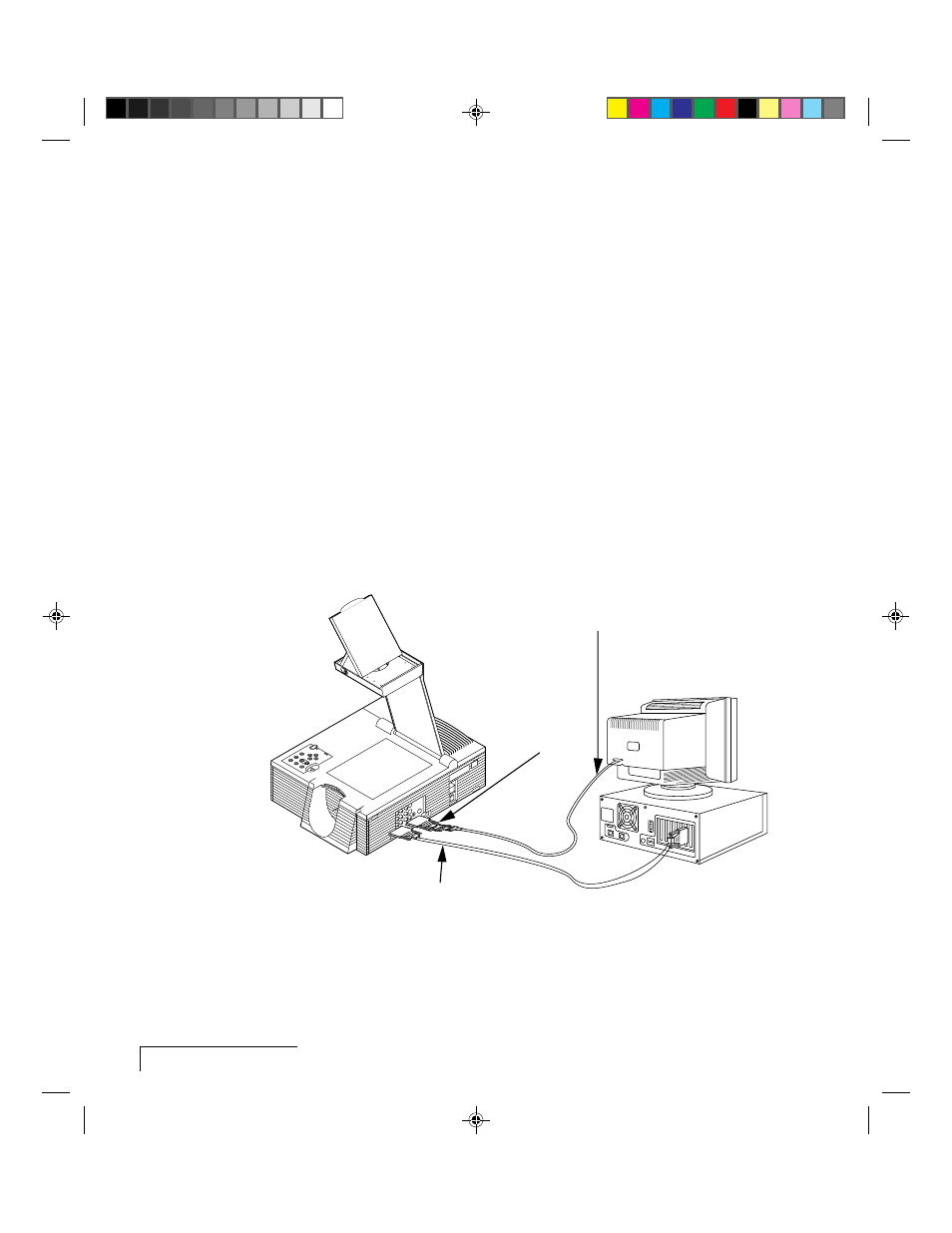

Figure 1-18, Silicon Graphics workstation connections
