Ask Proxima 9100 User Manual
Page 16
Setting Up Your Projector
1-3
5 The arm pops up. Gently lift the arm. It raises automatically until it is
fully extended. Do not force the arm further.

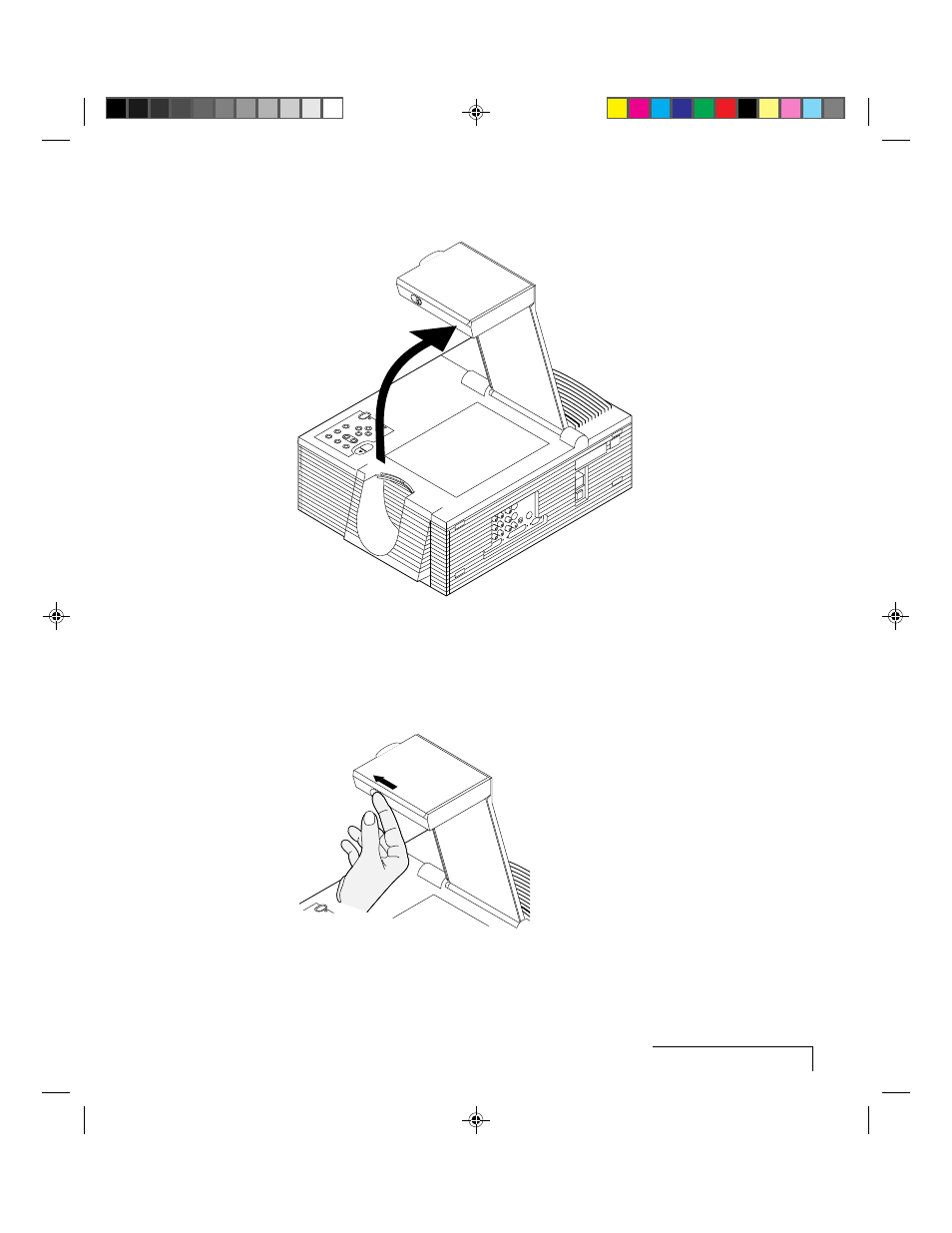

Figure 1-4, The arm pops up
6 Locate the flip mirror release lever on the top of the arm. Press it in the
direction of the arrow while pulling up on the lift tab. This releases the
mirror.
Figure 1-5, The flip mirror release lever
