Setting Up Your Projector
1-19
Connecting external speakers
The Desktop Projector 9100 contains an internal stereo system consisting of
an amplifier and two speakers. Although this system provides high-quality
stereo output, a multimedia presentation may require external powered
speakers or an external sound system.
When connecting external speakers, use the optional Proxima Powered
Loudspeaker System (A55) or a similar system. References in the following
procedure are to Figure 1-24.
1 Insert the two RCA plugs on the Mini-jack to RCA cable adapter (C5105)
into the projector’s AUDIO OUT ports.
2 Connect the other end of the Mini-jack to RCA cable adapter (C5105) to
the speaker cable (included with your speakers).
3 Connect speaker A to speaker B using the cables supplied with the
speaker system.
Mini-jack to RCA
Cable Adapter

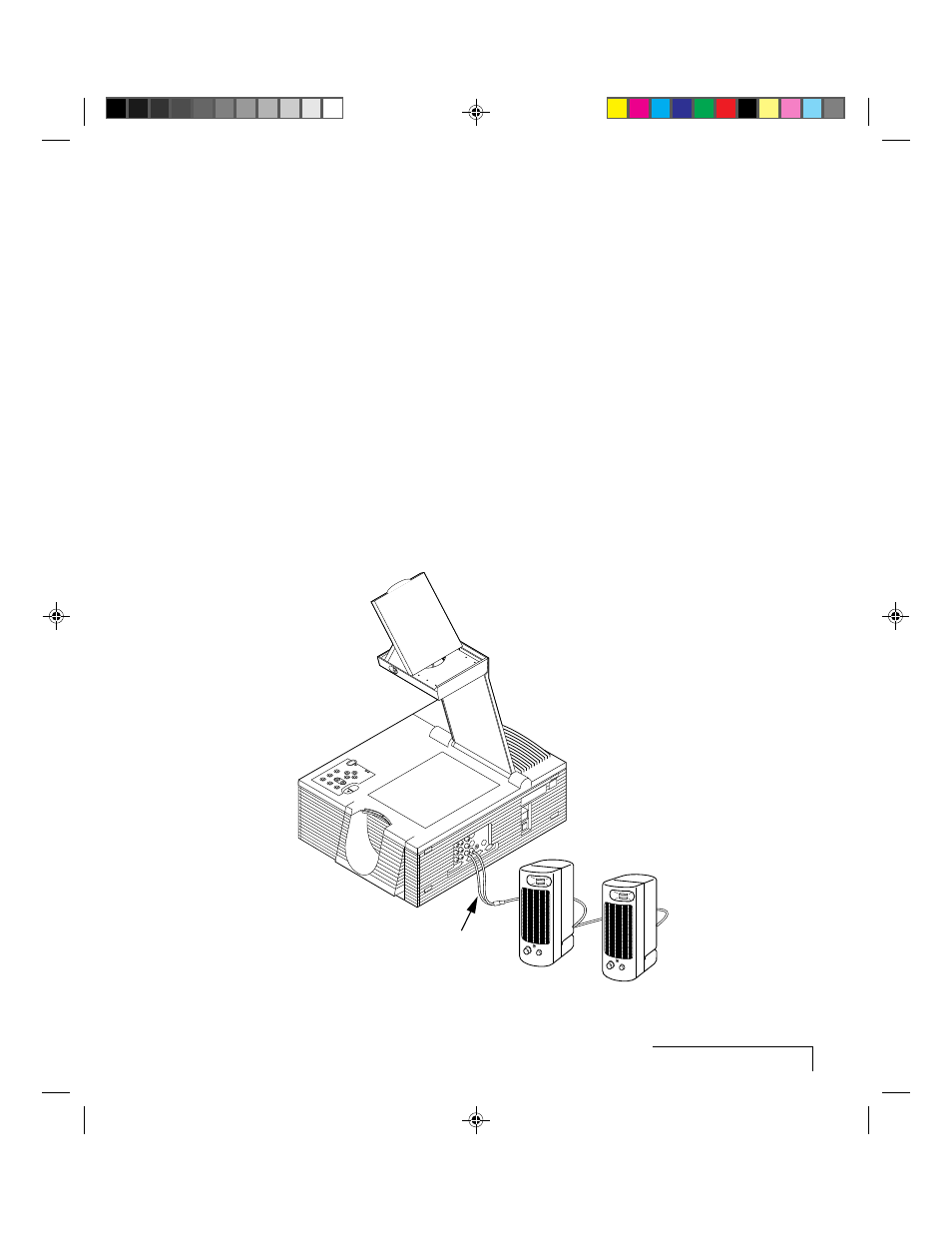

Figure 1-24, Connecting external speakers
