Red Lion PAXLA - Manual

1
3.60 (91.4)
(96.5)
3.80
1.95
(49.5)
(2.5)
.10
(104.1)
4.10
(44.5)
1.75
PAR
9 1 3 2 4 5 6 7 8 10 13 11 12 14 15
SEL RST
P S 1 P S 2
8.8.8.8.8 X MA
I M N
V
GENERAL DESCRIPTION
The PAXLA is a versatile meter available as a DC volt, current, or process
meter with scaling and dual Form C relay outputs. The meter is programmed
through the front panel buttons and the use of jumpers. The RST Key will also
function as a front panel display reset.
Once the front panel programming is complete, the buttons can be disabled
by a user input setting. The meter has been specifically designed for harsh
industrial environments. With a NEMA 4X/IP65 sealed bezel and extensive
testing to meet CE requirements, the meter provides a tough yet reliable
application solution.
SAFETY SUMMARY
All safety regulations, local codes and instructions that appear in this and
corresponding literature, or on equipment, must be observed to ensure personal
safety and to prevent damage to either the instrument or equipment connected to
it. If equipment is used in a manner not specified by the manufacturer, the
protection provided by the equipment may be impaired.
ORDERING INFORMATION
MODEL NO. DESCRIPTION PART NUMBER
PAXLA
Volt/Current/Process Meter with Dual Relay Output PAXLA000
UL Listed Volt/Current/Process Meter with Dual
Relay Output
PAXLA0U0
PAXLBK Unit Label Kit Accessory PAXLBK10
SPECIFICATIONS
1. DISPLAY: 5 digit, 0.56" (14.2 mm) intensity adjustable Red LED (-19999 to
99999)
2. POWER REQUIREMENTS:
AC POWER: 50 to 250 VAC 50/60 Hz, 12 VA
Isolation: 2300 Vrms for 1 min. to all inputs and outputs
DC POWER: 21.6 to 250 VDC, 6 W
DC Out: +24 VDC @ 100 mA if input voltage is greater than 50 VAC/VDC
+24 VDC @ 50 mA if input voltage is less than 50 VDC
3. INPUT RANGES: Jumper Selectable
D.C. Voltages: 200 mV, 2 V, 20 V, 200 V, 10 V
INPUT
RANGE
ACCURACY @
23 ° C LESS
THAN 85% RH
INPUT
IMPEDANCE
MAX
INPUT
SIGNAL
RESOLUTION
TEMP.
COEFFICIENT
200 mV 0.1% of span 1.033 M Ω 75 VDC 10 µV 70 ppm /°C
2 V 0.1% of span 1.033 M Ω 75 VDC 0.1 mV 70 ppm /°C
10 V 0.1% of span 1.033 M Ω 250 VDC 1 mV 70 ppm /°C
20 V 0.1% of span 1.033 M Ω 250 VDC 1 mV 70 ppm /°C
200 V 0.1% of span 1.033 M Ω 250 VDC 10 mV 70 ppm /°C
D.C. Currents: 200 µA, 2 mA, 20 mA, 200 mA
INPUT
RANGE
ACCURACY @
23 ° C LESS
THAN 85% RH
INPUT
IMPEDANCE
MAX
INPUT
SIGNAL
RESOLUTION
TEMP.
COEFFICIENT
200 µΑ 0.1% of span 1.111 K Ω 15 mA 10 nA 70 ppm /°C
2 mA 0.1% of span 111 Ω 50 mA 0.1 µA 70 ppm /°C
20 mA 0.1% of span 11 Ω 150 mA 1 µA 70 ppm /°C
200 mA 0.1% of span 1 Ω 500 mA 10 µA 70 ppm /°C
D.C. Process: 4 to 20 mA, 1 to 5 VDC, 0/1 to 10 VDC
INPUT RANGE SELECT RANGE
4 - 20 mA Use the 20 mA range
1 - 5 VDC Use the 10V range
1 - 10 VDC Use the 10V range
 5 DIGIT, 0.56" HIGH RED LED DISPLAY
 PROGRAMMABLE SCALING AND DECIMAL POINTS
 PROGRAMMABLE USER INPUT
 DUAL 5 AMP FORM C RELAY
 UNIVERSALLY POWERED
 NEMA 4X/IP65 SEALED FRONT BEZEL
 OPTIONAL CUSTOM UNIT OVERLAY W/ BACKLIGHT
 MINIMUM AND MAXIMUM DISPLAY CAPTURE

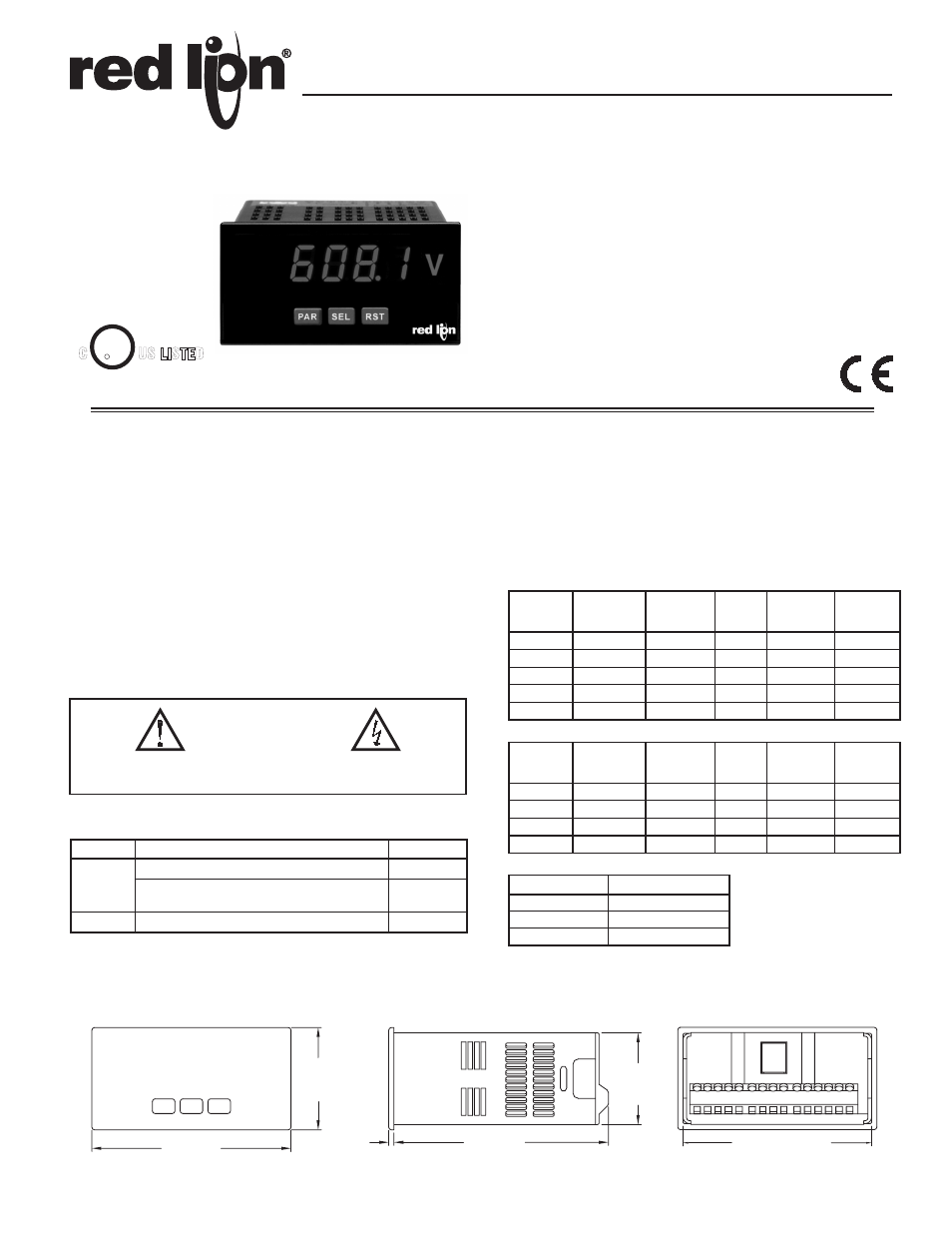

MODEL PAXLA - PAX LITE DC VOLT/CURRENT/PROCESS METER
DIMENSIONS In inches (mm)
Bulletin No. PAXLA-D
Drawing No. LP0722
Released 04/14
Tel +1 (717) 767-6511
Fax +1 (717) 764-0839
www.redlion.net
CAUTION: Risk of Danger.
Read complete instructions prior to
installation and operation of the unit.
CAUTION: Risk of electric shock.
C US LISTED
UL
R
51EB
IND. CONT. EQ.
For Model No. PAXLA0U0 Only
