Displaying and Creating Graph Files
Vaisala Veriteq vLog 4.5 69
4 Select the channels you want to display in the graph.
5 Click OK .

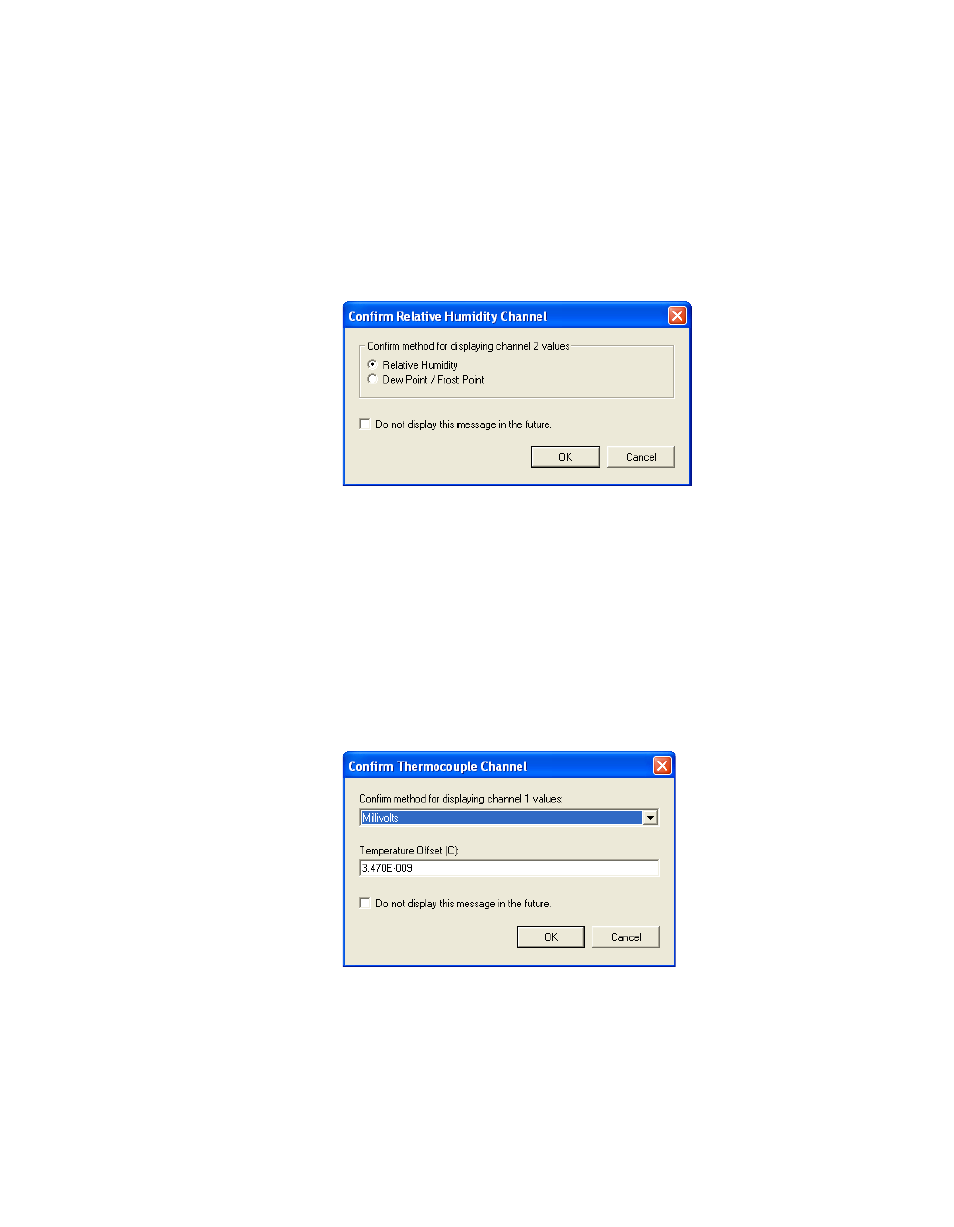

6 If you are inserting a file with temperature and humidity,
and the option for confirming display method for relative
humidity has been set to yes, the Confirm Relative
Humidity Channel window opens, prompting you to
choose a display method for relative humidity.
Confirm the method for displaying values, then click OK .
If you do not want to see this window every time you
work with humidity logger files, do one of the following:
• Select the Do not display this message again check
box before clicking OK , or,
• Select Tools | Options , choose the Insert tab, and
clear the Confirm display method for relative humidity
channels check box.
7 If you are inserting a file with a thermocouple channel,
confirm the method to display the channel, and, if
required, the temperature offset:
The logger file is displayed in the graph. If the logger file has
more than one channel, vLog automatically selects distinct
colors for each graph line.
