Overview
Vaisala Veriteq vLog 4.5 5
Understanding the vLog Window

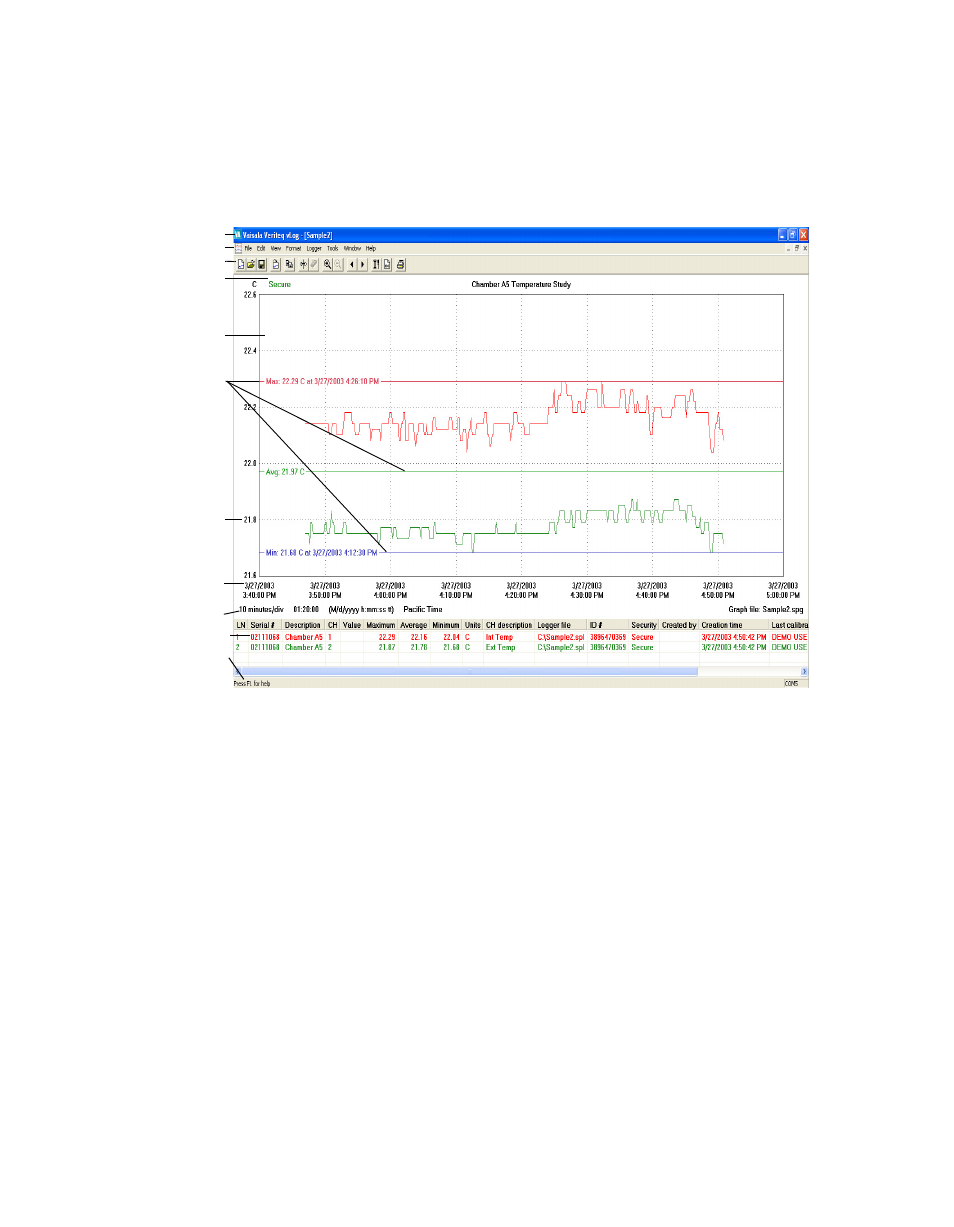

The following illustration shows the main sections of the vLog
window, with items described in Table 1:
Graph plot area
1
2
3
4
5
6
7
8
9
10
11
Table 1: Items in the vLog Window
1 - Title bar Shows the name of the active Graph file
2 - Menu bar Allows access to the various software functions
3 - Toolbar Allows quick access to the most used software functions
4 - File security
status vLog VL: Shows the security level of the Graph file (note: If the check-
sum in a logger file or graph file is invalid, vLog will not open the file).
Tampered means at least one logger is a VL-Series logger but one of
the loggers has an invalid checksum.
Secure means each logger is a VL-Series logger and all data and
graphs have valid checksums.
Not Secure means there are security problems, such as one SP-
Series logger shown in the graph, or one of the graphs or logger files
does not have a checksum.
