Page 23: Chapter 3
Chapter 3 _______________________________________________________________ Installation
VAISALA _______________________________________________________________________ 21
CHAPTER 3
INSTALLATION
This chapter provides you with information that is intended to help you
install the HMP60 and HMP110 series probes.

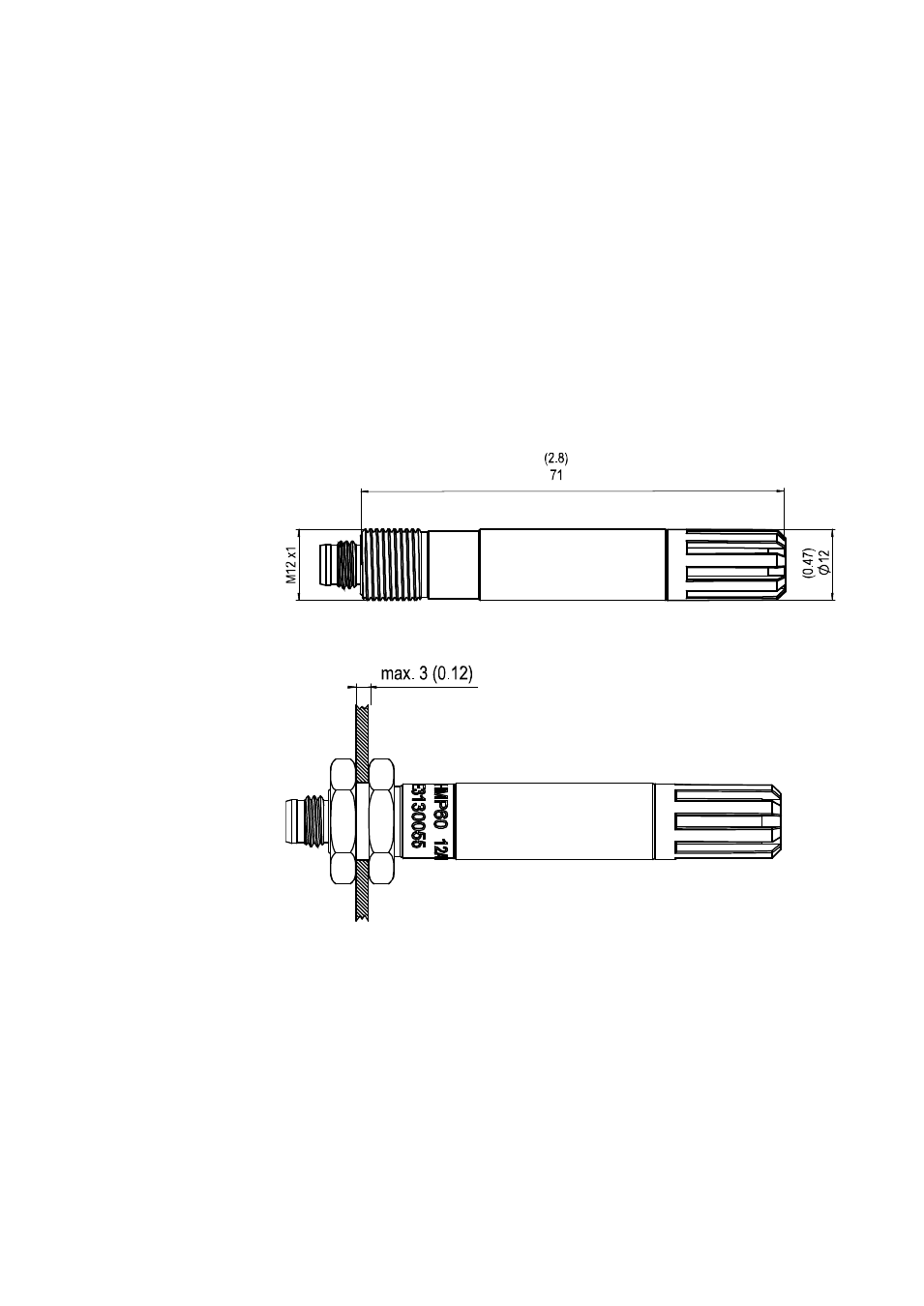

Dimensions for HMP60, HMP110 and HMP110T
0912-103
Figure 14
HMP60, HMP110, and HMP110T Dimensions
0912-102
Figure 15
Installation with Plastic M12 Nuts, Dimensions
