Chapter 2 __________________________________________________________ Product Overview
VAISALA _______________________________________________________________________ 17

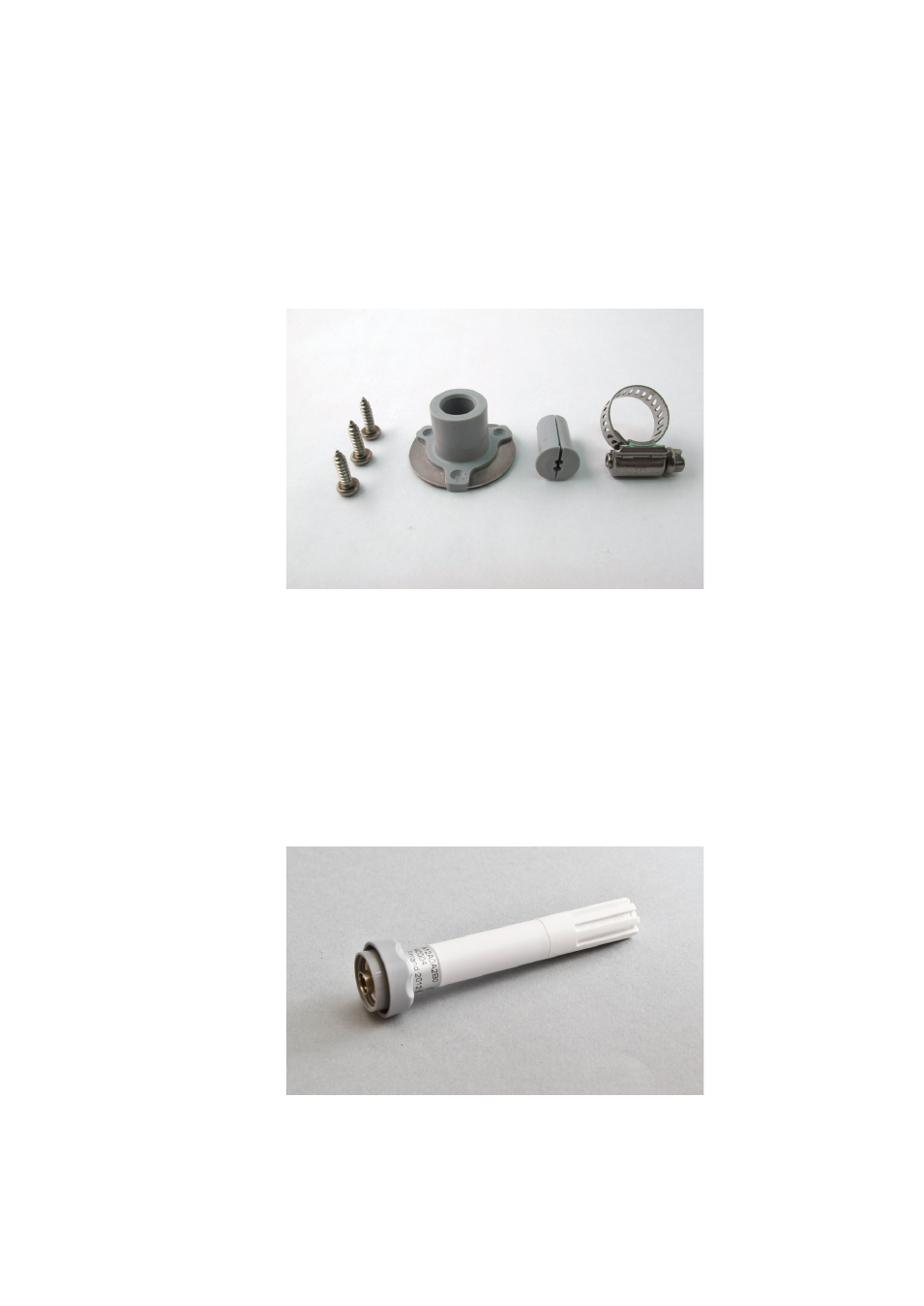

Probe Mounting Flange
The probe mounting flange is a silicone flange that can be used to hold
the probe in a through-wall installation. The flange is a general purpose
mounting accessory for Ø 12mm probes, and comes with a sealing plug
for coaxial cables that is not needed when the flange is used with HMP60
and HMP110 series probes.
0911-109
Figure 8
Probe Mounting Flange
Plastic Locking Bushing for HMP63 and
HMP113
HMP63 and HMP113 can be connected to compatible Vaisala
instruments using a plastic locking bushing that is placed over the probe.
The bushing has a M15x1 thread. It is compatible with the HMT120 and
HMT130 transmitters, and the HM40 hand-held meter.
1210-029
Figure 9
HMP113 with Plastic Locking Bushing
