User's Guide ______________________________________________________________________
16 __________________________________________________________________ M211060EN-E

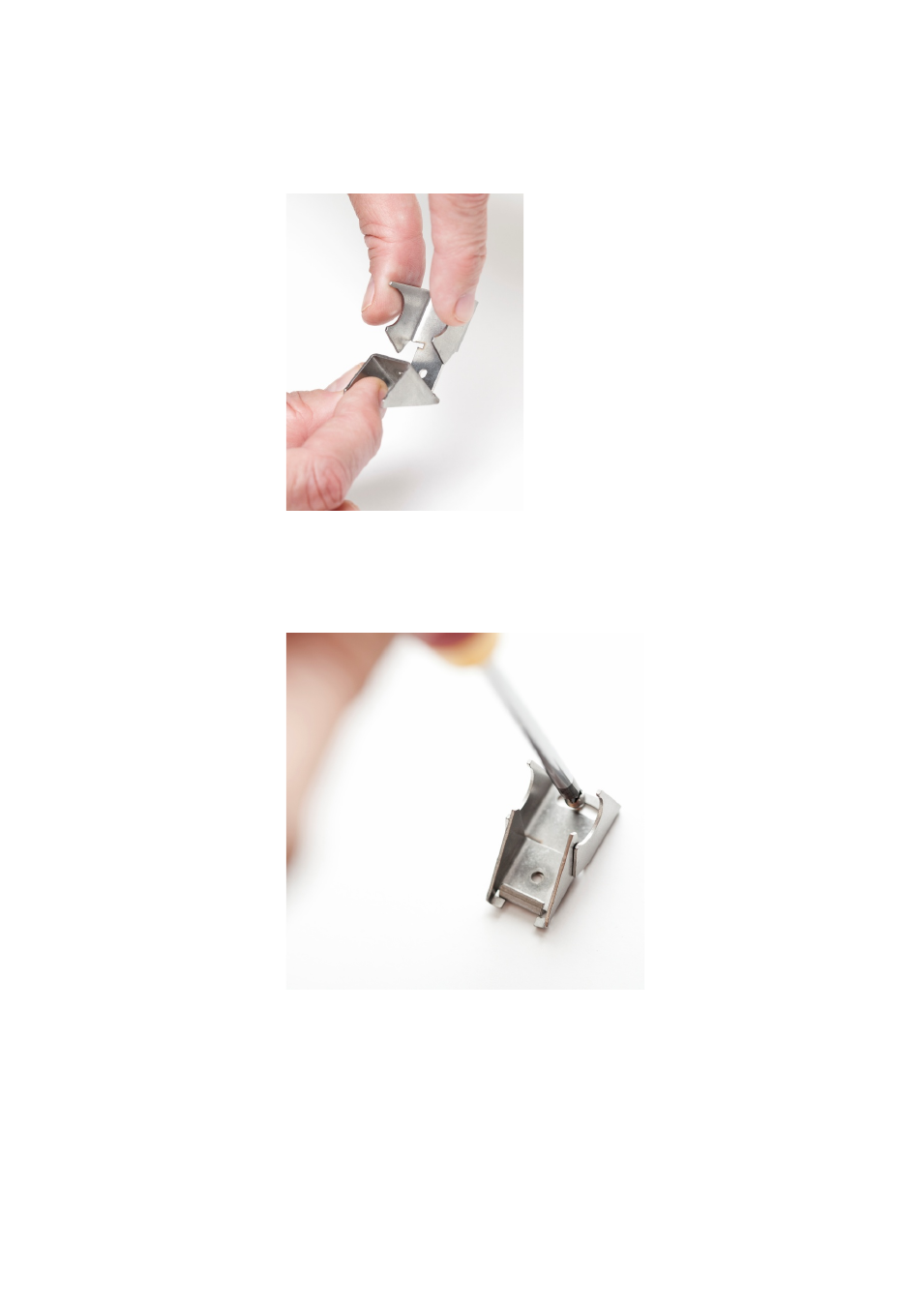

2. Slide the lower clamp part over to the bottom end of the upper part
as shown in Figure 6 below.
1209-002
Figure 6 Sliding the Lower Clamp Part
3. Place the clamp to the intended location and secure the upper
clamp part with a screw. See Figure 7 below.
1209-003
Figure 7 Securing the Upper Clamp Part
4. Place the probe in the clamp.
5. Tighten the lower clamp part with a screw.
