Angled shank holders
Intended for profiling and shallow undercut-
ting applications. Available in 7°, 45° and 70°,
right and left hand style versions. Developed
specifically for aluminium rim machining.

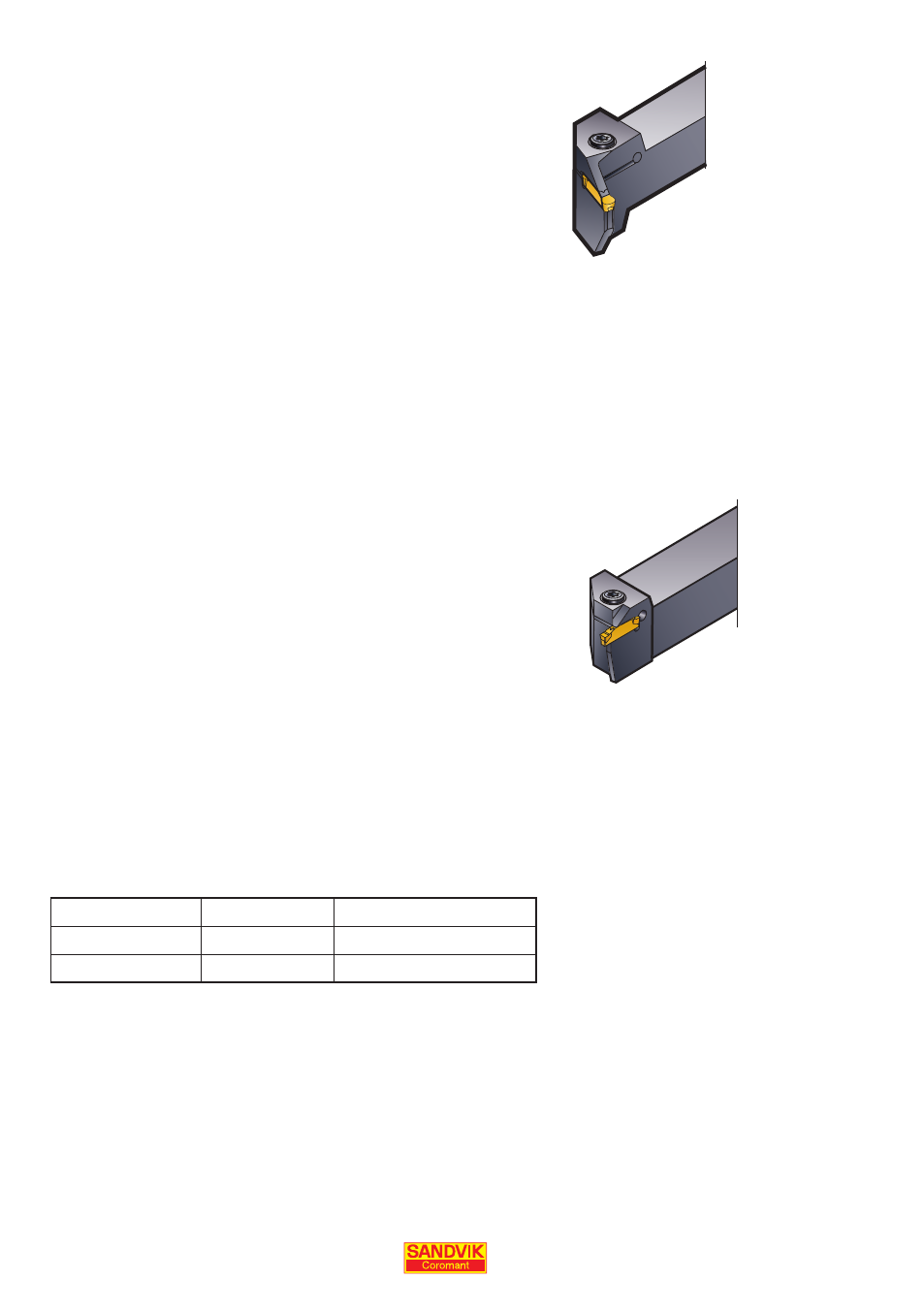

70° angled holder.
Shallow grooving
holder.
Holder seat size Insert seat size Max depth of cut a
r
, mm
G E, F, G 3.5
K H, J, K 4.5
Shank holders for
shallow grooving
These holders are universal for all shallow
grooving and face grooving applications.
They are often the only solution when Tailor
Made inserts with complicated shapes are
used. One seat size can take inserts which
normally have other seat sizes up to a limited
cutting depth (a
r
).
Available in 0° and 90°, right and left hand
style holders.
