20

The FX connected to Port
01 is always programmed
as the Master

AC Breakers Off

DC Breakers Off

COMPONENTS AND CONNECTIONS:

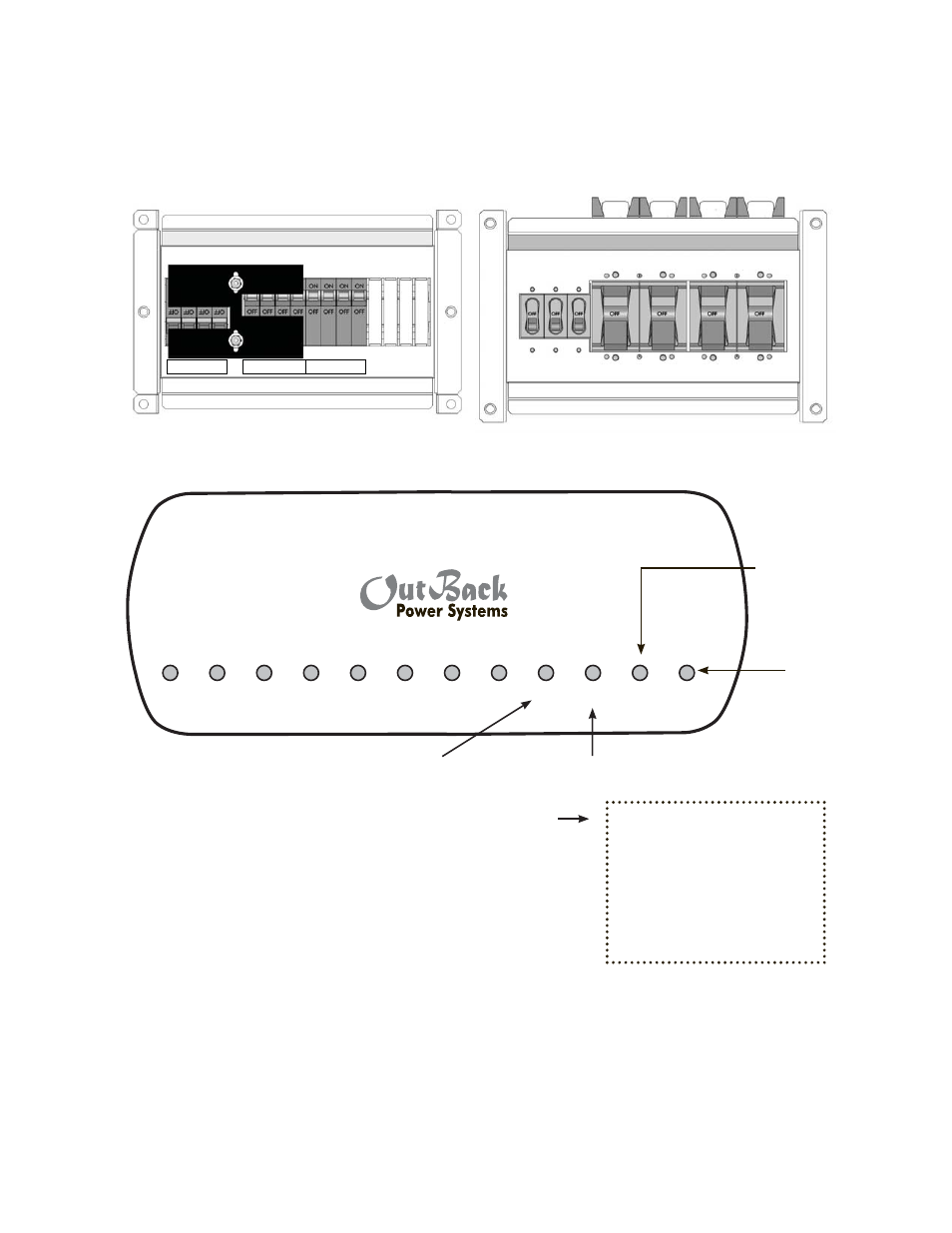

1. With all AC and DC breakers OFF, connect all FXs to the HUB with individual lengths of CAT5 cable.

a) Connect the OutBack MATE after all other components, including

any OutBack Charge Controllers, have been connected and

powered up.

b) Components installed after powering up the system will require

repolling the MATE (please see page 22).

c) With the MATE, a user assigns a status and stacking value to the FX

on each Port. These status and value assignments can be changed

at anytime as long as the Master FX is plugged into HUB Port 01.

• “1-2ph Master” for one and two-

phase systems

• “3ph Master” for a 3-phase

system

• The Master FX is always

considered to be the leg one
phase.

POWER

HUB

10

9

8

7

6

5

4

3

2

1

2

ND

Mate

1

st

Mate

Slave FXs plug into Ports 02 and higher

OutBack Series Charge Controllers plug into
any ports after the last FX is connected

2

nd

MATE

Port is not

operable

MATE

connects at

1st MATE Port

BYPASS

OUTPUT

INPUT

NOTE: Pay attention to the Port number on the screen! Be sure the FX whose status and stacking value

you’re changing is the one you mean to change.
