Mounting the Repeater

Page 9

Mounting the Solar-Powered Repeater

1. Mount the shelter against a wall or post, or on a pipe.

CAUTION: Remember to face the solar panel south in the Northern Hemisphere and north in the

Southern Hemisphere for maximum sun exposure.

Wall or Post

Attach the shelter to the mounting surface in the desired location using
the lag screws and 1/4" flat washers as shown below.

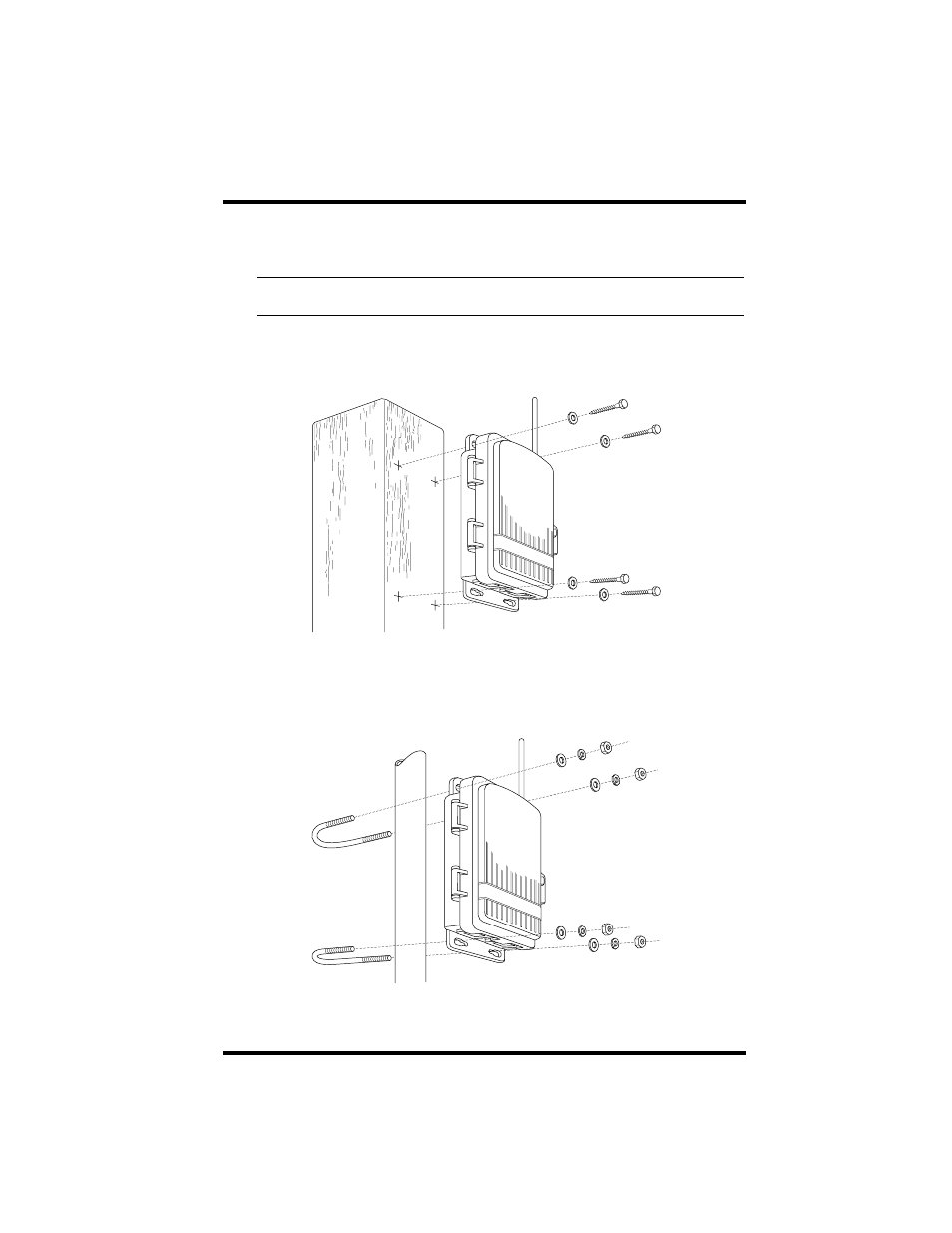

Mounting Repeater on a Wall or Post

Pipe - 3/4” to 1-1/4” (19 cm to 31 cm)

Use the 1-1/2" U-bolts and saddles, and the 1/4" washers and hex nuts
as shown below.

Mounting Repeater on a Small Pipe

2. Apply power (see step 3 on page 5) and close the shelter door.

Flat

Washer

Lag

Screw

Flat

Washer

Lock

Washer

Hex
Nut

U-Bolt
