Advanced Installations
Page 11
So, for example, the second (B) repeater’s DIP switches will be set to OFF, OFF,
ON, while the third (C) will be set to OFF, ON, OFF, as shown below.

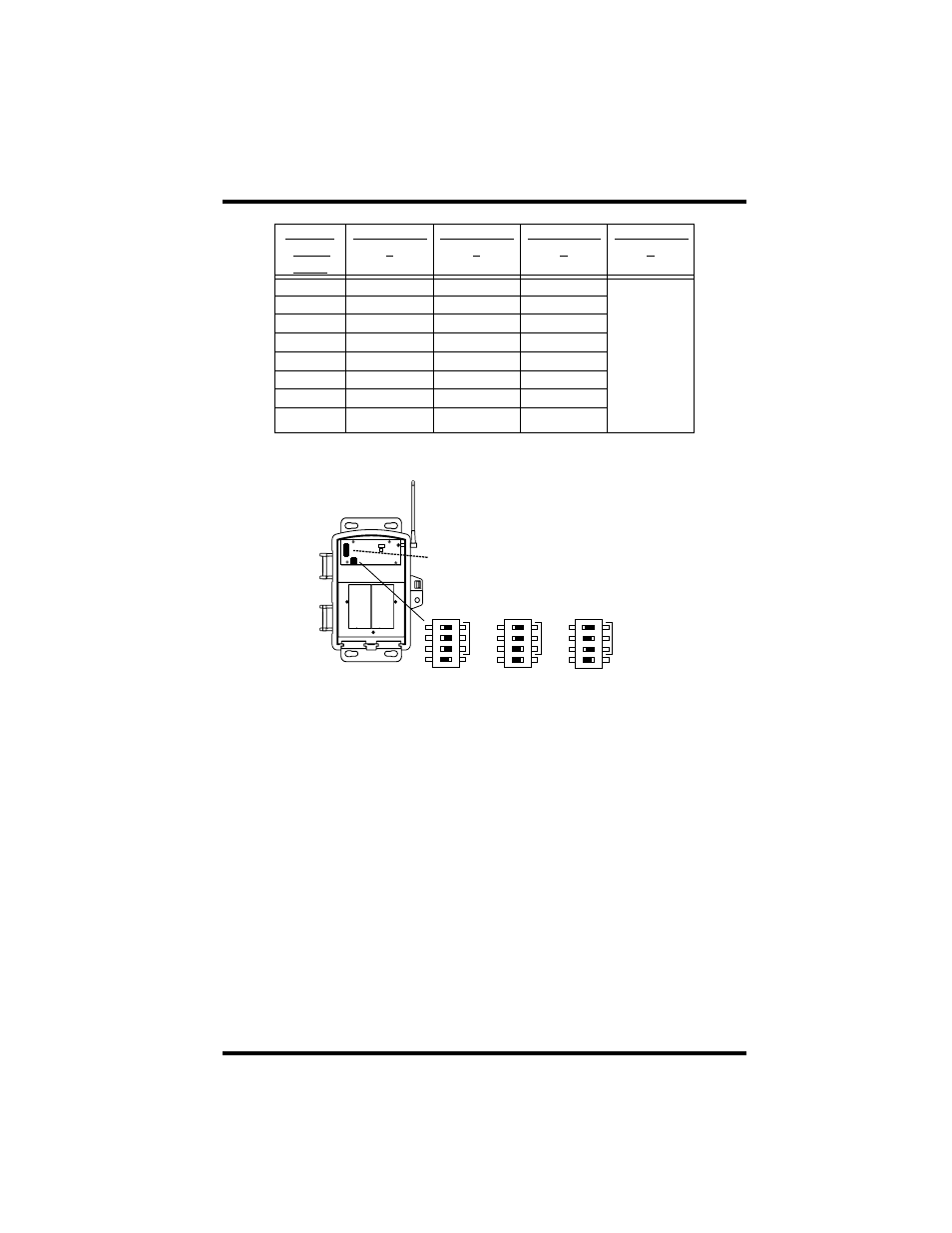

DIP Switches on Repeaters A, B, and C
Setting the Transmitter ID Codes on the Repeater
Once you have set the Repeater ID codes, determine whether you need to set
Transmitter ID codes. If you have only one transmitter and its DIP switches are set
to the default ID code (#1), then you do not need to set any transmitter ID codes on the
repeater closest to the transmitter. All other repeaters must have all transmitter ID
DIP switches turned off.
If the transmitter’s DIP switches are set to some code other than the default
(#1), then the closest repeater to a transmitter is the only repeater that should
have its transmitter DIP switch set to that transmitter’s ID code (see “Quick
Install Instructions” on page 3 for details). All other repeaters in the chain
should have their transmitter DIP switches set to OFF because there is only one
transmitter in this chain and its signal is already being picked up.
If you have more than one transmitter, see “Network Installation (Multiple
Transmitters)” on page 12. Otherwise, simply continue with the installation
where you left off (see “Choosing a Location” on page 4).
