Preparing the Envoy

4

3. Carefully insert the data logger into the connector.

Note:

Be sure to push down firmly on the data logger to seat the connection.

4. Rejoin the case halves, making sure the data logger cable passes through the

cable channel.

5. Fasten using the three screws you previously removed.

Installing the Batteries

CAUTION: The WeatherLink Data Logger must be installed before you install the

backup batteries!

1. Find the battery cover on the back side of the Envoy case.

2. Remove the battery cover by pressing on the arrow embossed on the cover

and sliding the cover away from the case.

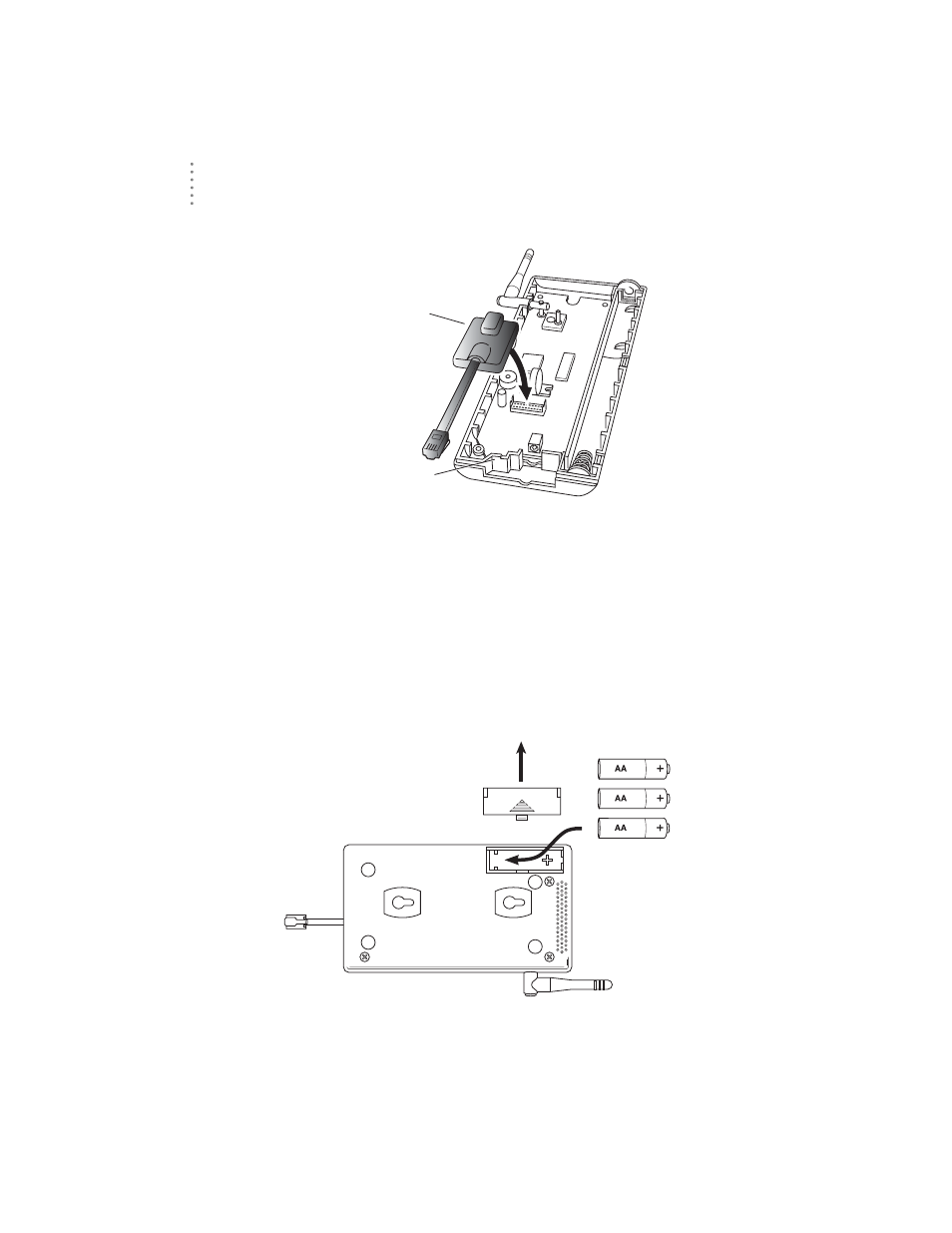

Data Logger Cable Channel

Data Logger

Installing the Data Logger

Installing the Batteries
