DAVIS Fan-Aspirated Radiation Shield User Manual
Page 5
Installing a Sensor or Probe
Page 5
3.
Remove the sensor board and discard the “old” cover and shell.
4.
Fit the new sensor cover on the front of the sensor board as shown below.
5.
Insert and tighten the #4 x 3/8” (9.5 mm) screw in the back of the sensor
board.
6.
You are now ready to install the sensor board.
Main
Cover
Sensor
Board
Base
#4 x 3/8"
Screw
#4 x 3/8"
Screw
#4 x 3/8"
Screw
Shell

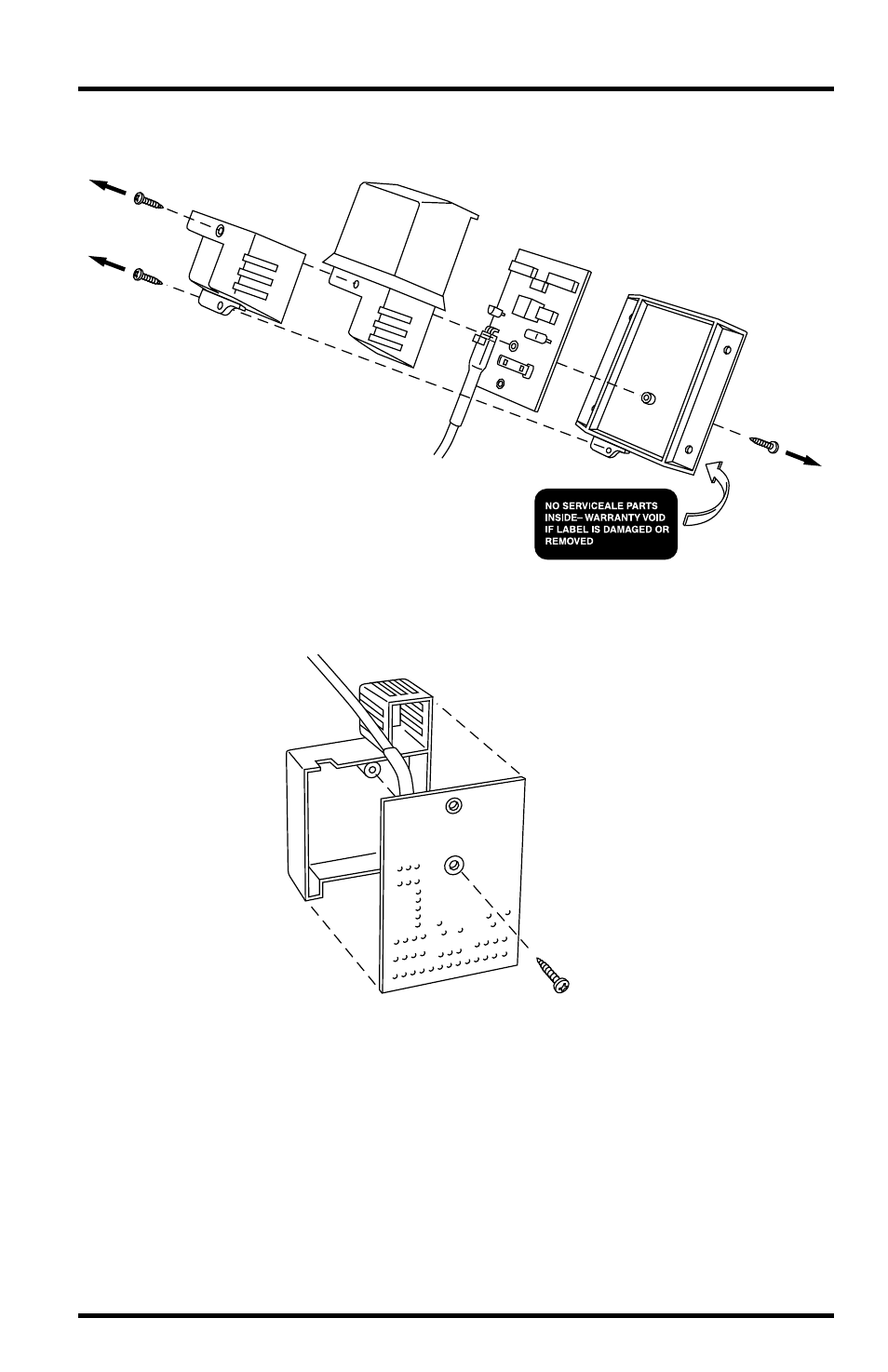

Removing the “Old” Temp/Hum Housing
Sensor
Cover
Board removed from
Davis #7859 or #7860
Temp/Humidity
Sensor
#4 x 3/8"
Screw
Attaching a New Sensor Board Cover
