Page 18 Fan-Aspirated Radiation Shield
Mounting to a Pipe or Mast
Use this procedure to mount the Fan-Aspirated Radiation Shield to a metal
pipe with outside diameter between 1” (2.5 cm) and 1 1/4” (3.1 cm). To mount
to a pipe you need:
✦ A Mounting Bracket for Fan Aspirated Shield (part # 7994-not supplied)
✦ Two 1 1/2” (3.8 cm) U-bolts (supplied with part # 7994)
✦ Four 1/4” (6.3 mm) flat washers (supplied with part # 7994)
✦ Four 1/4” (6.3 mm) hex nuts (supplied with part # 7994)
✦ Three # 8-32 x 2” (5.1 cm) screws (supplied with your radiation shield)
✦ A 7/16” (1.1 cm) wrench
Pipe Mounting Requirements
Note: You can mount the Fan-Aspirated Radiation Shield on any pipe to a maximum diameter of 2 1/2”
(6.35cm). However, you will need to drill additional holes and obtain the larger U-bolts.

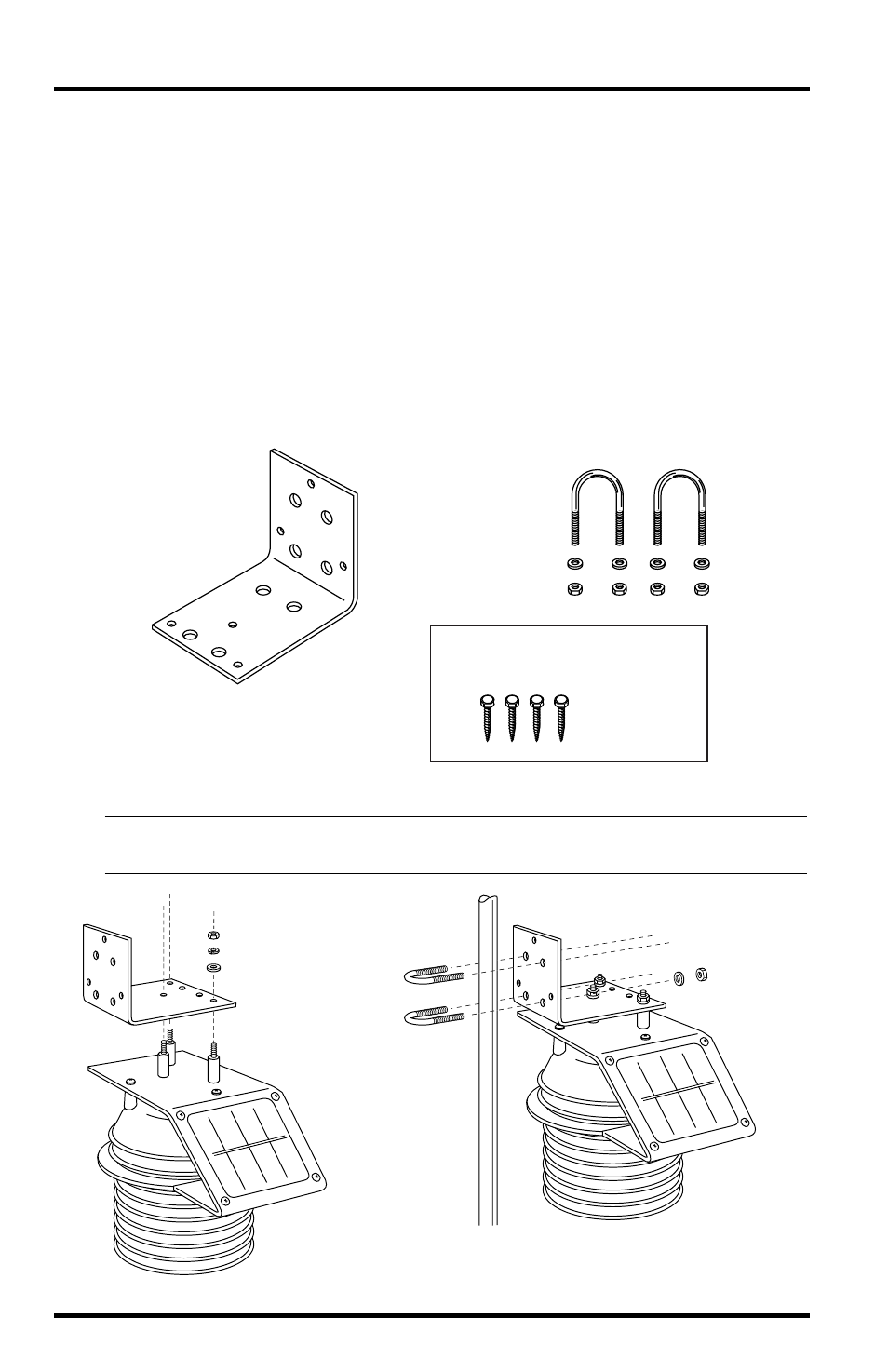

Mounting the shield to a Pipe or Mast
1/4" x 1-1/2"
Lag Screws (4)
Supplied by customer
for wall or post mounting:
Bracket
1-1/2" U-Bolts (2)
1/4" Flat Washers (4)
1/4" Hex-Nuts (4)
#8 Hex Nuts
#8 Lock Washers 1/4" Flat Washers
1/4" Hex Nuts
#8 Flat Washers
1-1/2" U-Bolts
Wall Mount
Bracket
