Fan-Aspirated Radiation Shield
Routing the Sensor and Power Cables
To route the cables do the following:
1.
Loosen the cable clamp screws on the top of the unit core, remove the cable
clamps.
2.
Route the sensor cable and AC or solar power cable through the clamp.
3.
Secure the clamp to the unit using the screw provided.
4.
Connect the sensor cable to the appropriate connector on the junction
box/sensor interface. Consult your station installation manual for more
information.
5.
For AC-powered models, route the power-adpater cable to an AC outlet

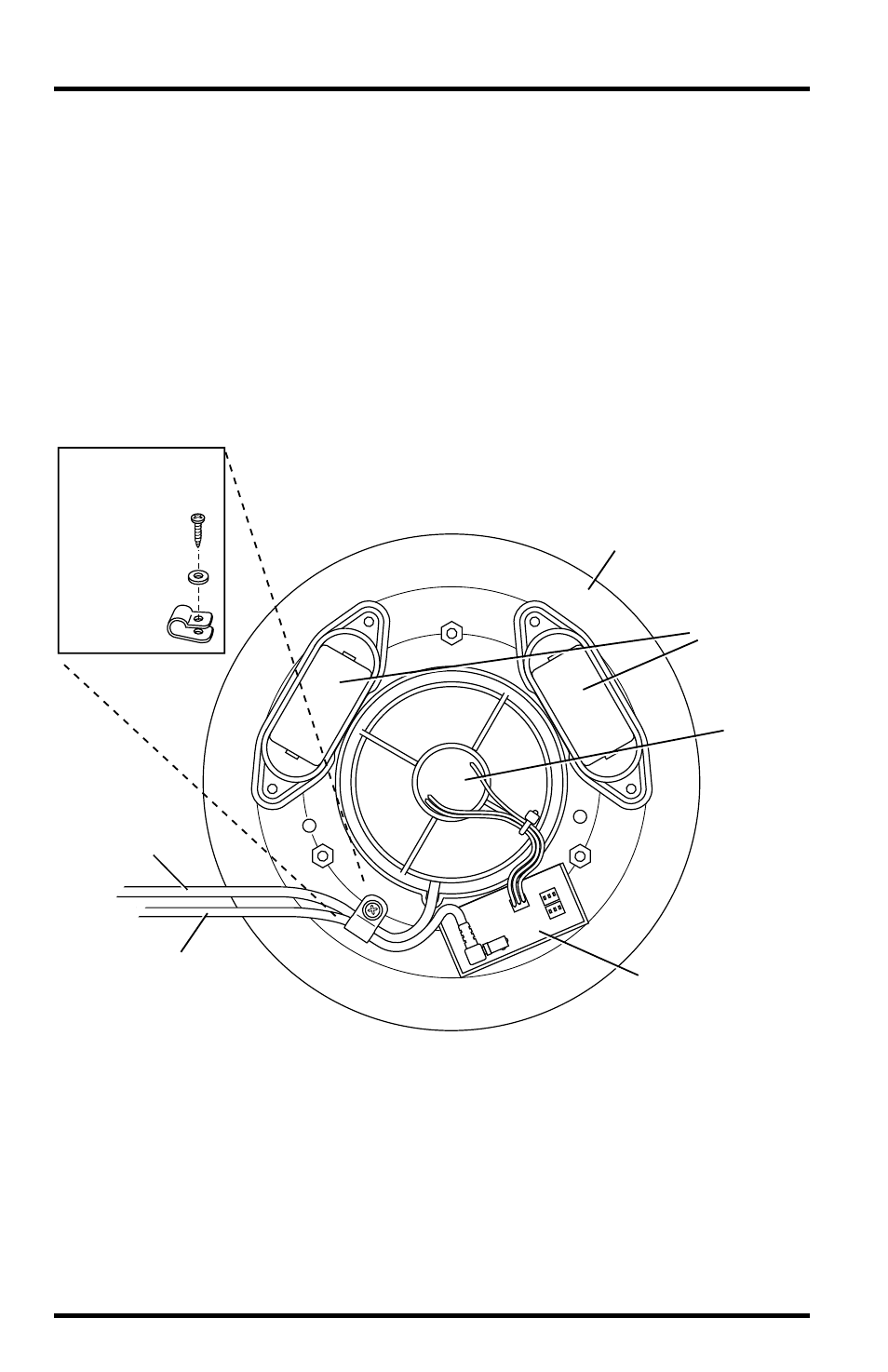

AC Cable Routing
#4 x 1/2" Screw
#4 Flat Washer
Cable Clamp
Power Adapter
Cable
Battery
Compartments
(not used in
AC Models)
Fan Motor
Sensor Cable
Fan Plate
Junction
Board
Use Cable Clamp to
Attach Cables
