DAVIS Fan-Aspirated Radiation Shield User Manual
Page 13

Reassembling the Radiation Shield
Page 13
5.
Place the open shield plates on top of the three threaded spacers as shown
below, making sure to line up the screw holes. Add the closed plate.
Use the plastic ridges on the underside of the plates as a guide.
6.
Secure the two shield plates to the radiation shield mounting bracket using
the three 2” screws and washers.
Tighten until the radiation shield attaches firmly to the mounting bracket.
7.
You are now ready to mount the shield. (See page 14.)
Note:
If you want to extend the length of the power cable, you will need to connect the cables using splice
connectors before mounting the shield. (See page 14.)

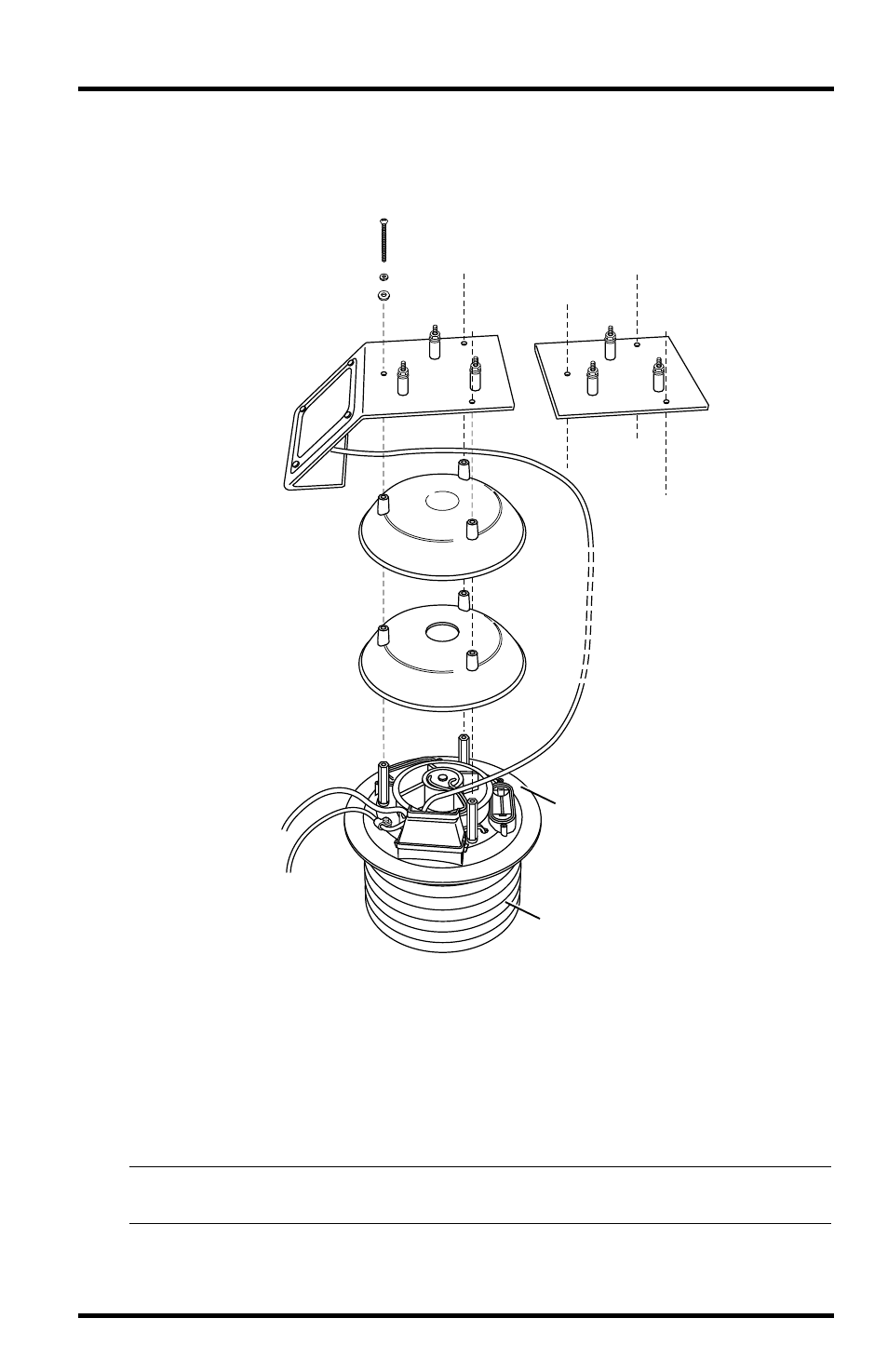

Mounting Bracket
with Solar Panel
SOLAR MODELS
Mounting
Bracket
AC MODELS
2" Screws (3)
Lock Washers
Flat Washers
Closed Plate
(no hole in center)
Open Plate
(hole in center)
Solar Power Cable
SOLAR MODELS
Fan Plate
Power Cable
AC MODELS
Sensor Cable
Passive Shielding
Reassembling the Fan-Aspirated Radiation Shield
