Installation

Installing the storage device into an HP Computer Cabinet

Your storage device can be installed into the following Computer Cabinets:

■

C2785A Computer Cabinet (1.10M; 21U)

■

C2786A Computer Cabinet (1.60M; 32U)

■

C2787A Computer Cabinet (1.96M; 41U)

Caution

To ensure proper installation, only use the instructions in this
manual for installing the storage device in the HP Computer
Cabinet. Do not use the instructions enclosed in the rail kit box.

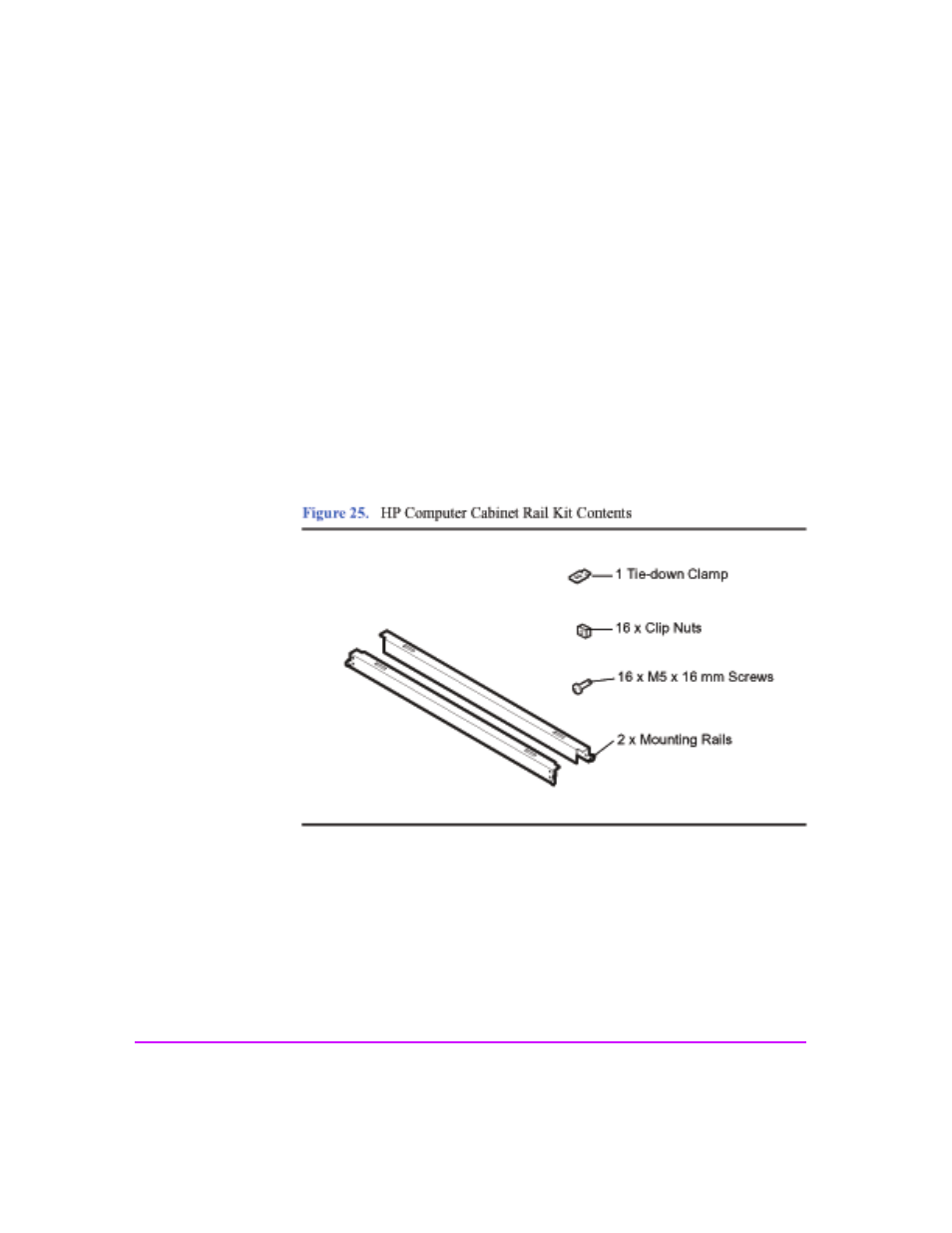

1. Check the rail kit contents (see

Figure 25

). If any parts are missing, call your

nearest HP sales office. The tie-down clamp is not used and may be discarded.
