BCCs and BCC Filler Panels

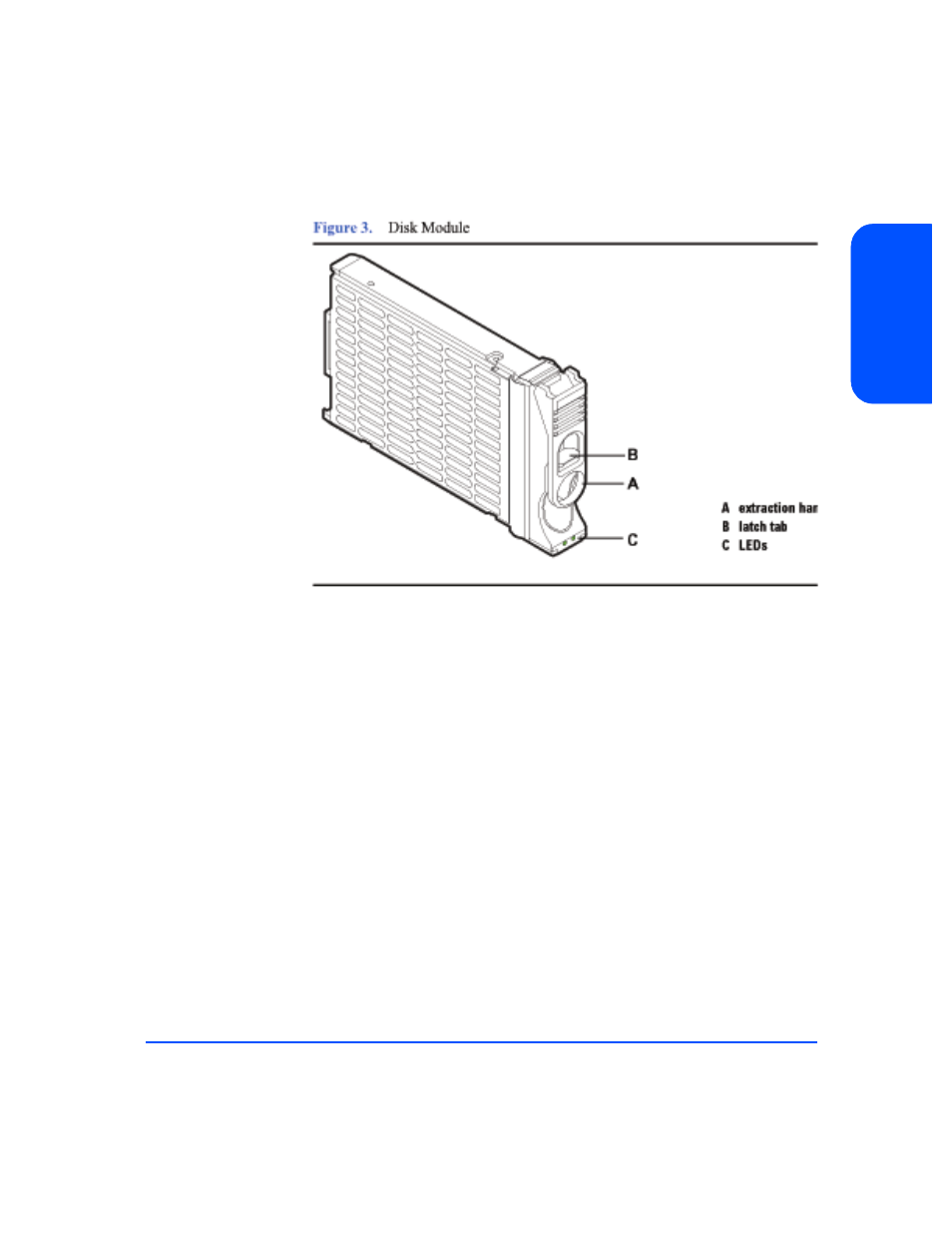

BCCs (Bus Control Cards) plug into two slots in the back of the disk system.
Each BCC connects to both LVD (low voltage differential) buses inside the disk
system. In full bus mode (DIP switch 1 set to “|”), both BCCs have access to all
installed disks. The two SCSI buses are bridged. If either BCC fails and LVM
primary and alternate paths are defined, data can be accessed through the other
BCC. In split bus mode (DIP switch 1 set to “0”), the left BCC (as viewed from
the rear of the disk system), is on the high numbered bank (with disk slots 8, 9,
10, 11,12, 13, and 14) and the right BCC is on the low numbered bank (with disk
slots 0, 1, 2, 3,4, 5, and 6) of disk slots. See Figure 1.
Two SCSI ports (B in Figure 4) on each BCC provide dual LVD connections to
the same or separate hosts. If a host is connected to one of the BCC ports, an
LVD terminator must be connected to the other port on that BCC.
