Description Item
Number of mapped external volumes using the external path group. Number of External Volumes
Total capacity of mapped external volumes using the path group. External Volume Capacity
Mapped Volumes tab

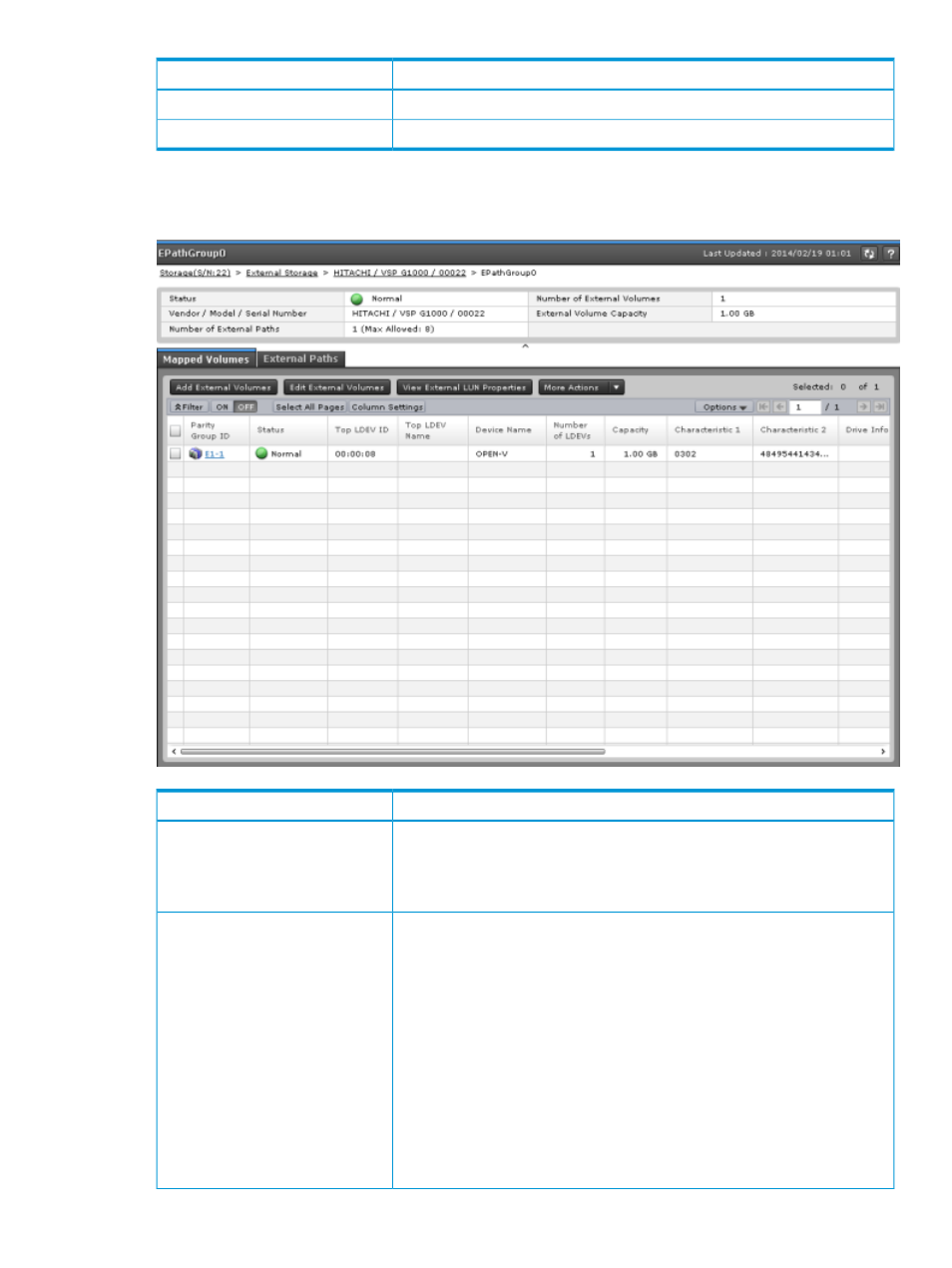

Displays the external volumes mapped to the HP XP7 Storage using the selected path group.
Description Item
Displays parity group numbers for the mapped external volumes. When the link
is clicked, a list of LDEVs in the mapped volume and parity group displays. Parity Group ID
When the link is clicked, a list of LDEVs in the mapped volume and parity group
displays.
Status of the external volume Status
• Normal: There are no problems, the volume is usable.
•
Disconnect: The external system or one of its mapped volumes has been
intentionally disconnected.
• Checking: The system is checking the mapping path status
•
Unknown: The status of the mapping path is not known.
• Cache Destage: Writing of data from cache memory to the volume is in
progress.
•
Warning: There are mapping paths whose status is not normal. You can check
their status in the View External LUN Properties window.
• Blockade: The mapping path is blocked.
•
Destage Failed: The writing of data from cache memory to the volume failed.
Selected external path group window 105
