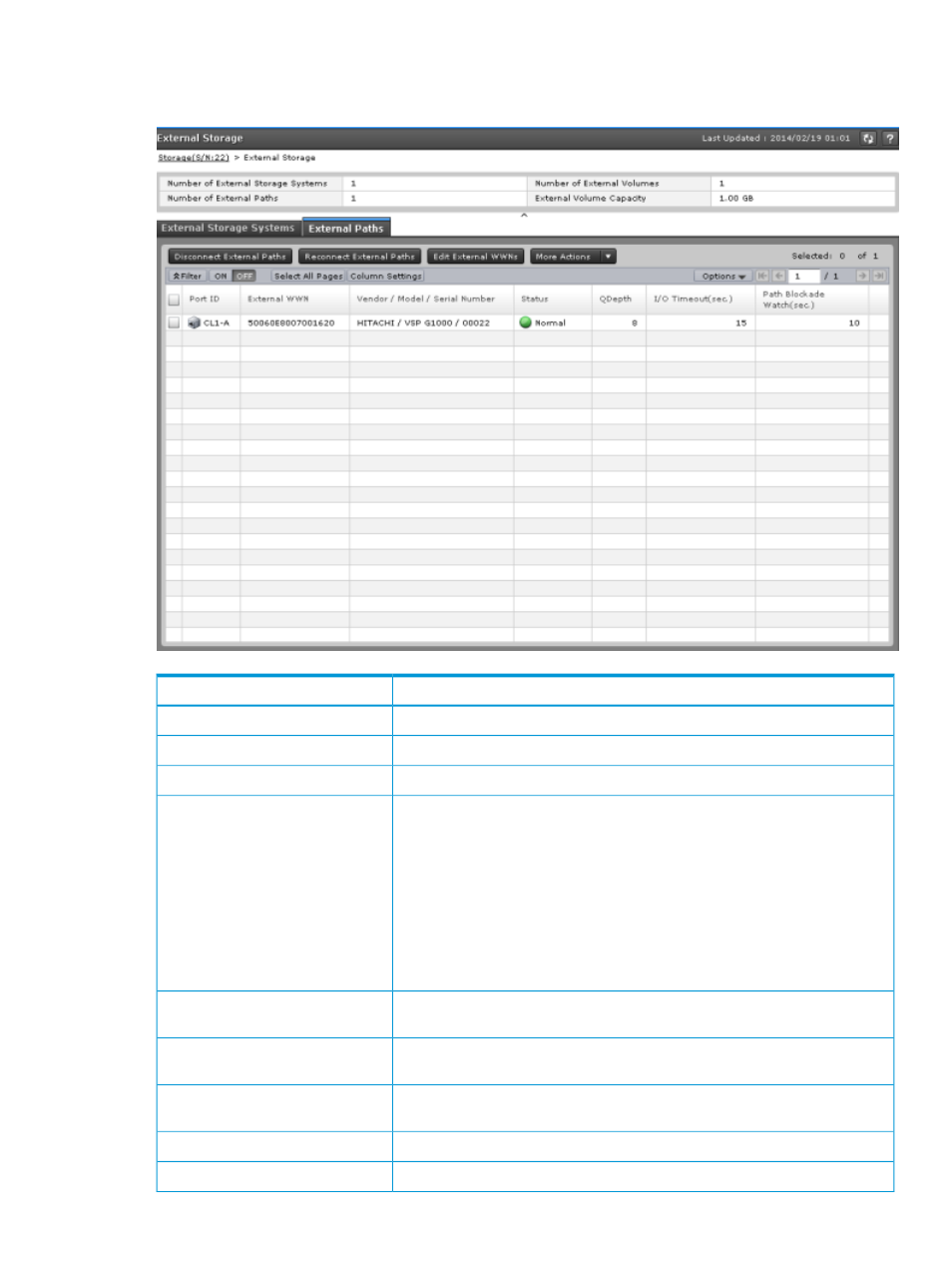

External Paths tab
Displays the paths connecting mapped external volumes in the external system to HP XP7 Storage.
Description Item
Local system port number. Port ID
External system port identification number. External WWN
Identifying information for the external system. Vendor / Model / Serial Number
Status of external paths. Status
•
Normal: There are no problems, the system is usable.
•
Disconnect: The path has been intentionally disconnected.
• Checking: The system is checking the external path status.
•
Unknown: The status of the external path is not known.
• Warning: There are external paths whose status is not normal. You can check
their status in the View External LUN Properties window.
•
Blockade: The external path is blocked.
Number of Read/Write commands that can be queued to the external volume.
8 is set by default. QDepth
Number of seconds that should pass before I/O to the external volume times
out. 15 seconds is the default. I/O Timeout (sec.)
Time that will elapse from the time that a path goes down to the time when the
external volume is blocked. 10 seconds is the default. Path Blockade Watch(sec.)
When clicked, launches the Disconnect External Paths window. Disconnect External Paths
When clicked, launches the Reconnect External Paths window. Reconnect External Paths
