Interface Manager card

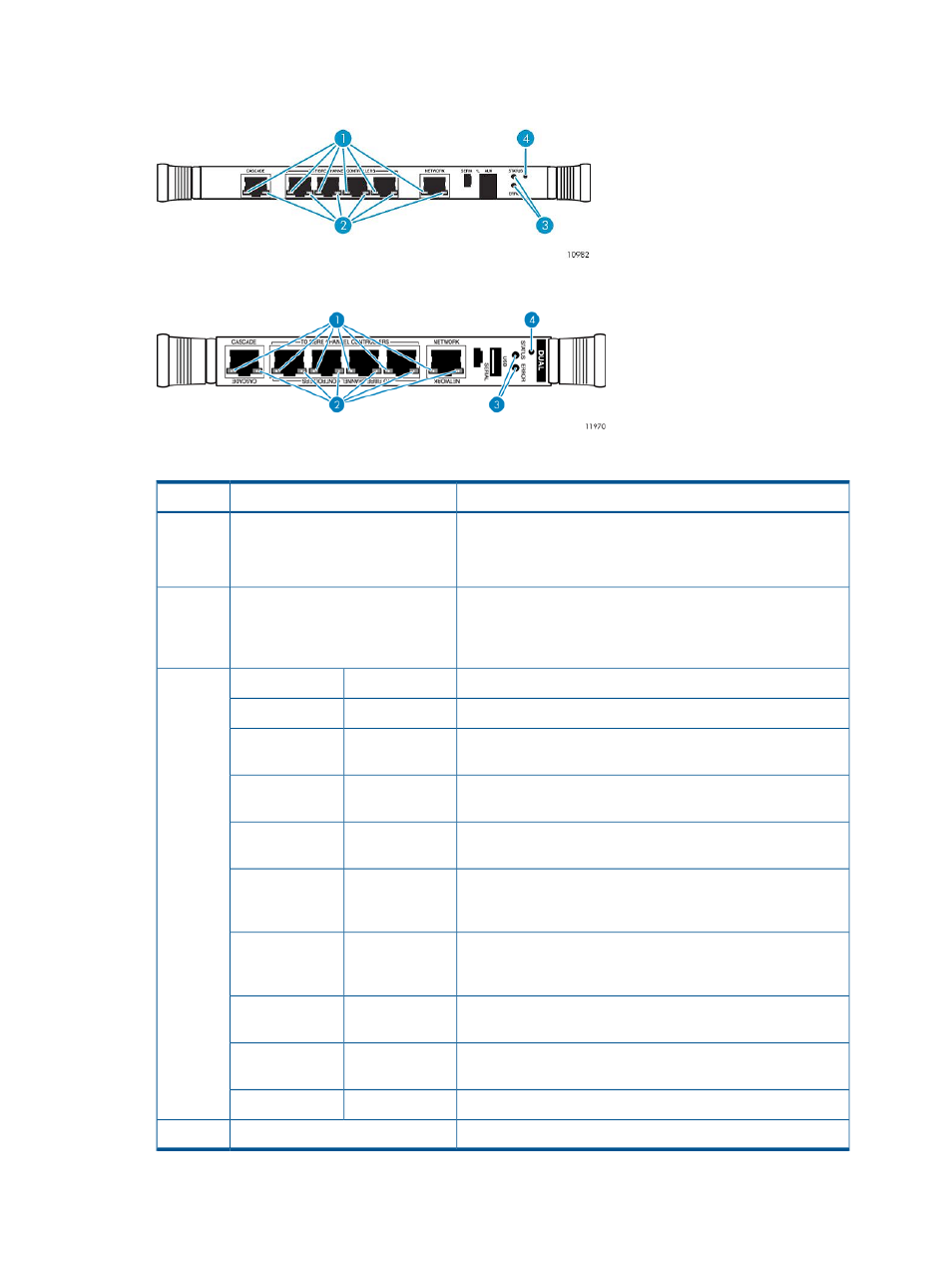

Figure 37 Indicators and reset on the Interface Manager card 342213–001 or 393531–001
Figure 38 Indicators and reset on the Interface Manager card 480240-001
Table 9 Indicators and reset on the Interface Manager cards
Function Control/indicator Index No.
On—Port operating at 100 Mbps. Green link speed
LED 1
Off--Port is operating at 10 Mbps, or port is not connected (see
link activity LED).
Off--Port disconnected/no link. Green link
activity LED 2
On--Port connected to another Ethernet device.
Flashing--Data is being transmitted or received.
Green LED Red LED 3
BIOS code failed to run. Off On
Either: 1) Hardware POST failed; no firmware images are
loaded. 2) There is no DHCP connection. Off Blinks 1x per 5
second interval
No CompactFlash disk or valid boot sector image found. Off Blinks 2x per 5
second interval
Specified firmware image files cannot be found. Neither the
current nor the previous image was found. Off Blinks 3x per 5
second interval
Load or execute command failed (boot code remains at end
of process). This indicates that load, decompress, or execution
failed on both the current and previous image files. Off Blinks 4x per 5
second interval
Normal state. Load or execute command succeeded. Boot code
successfully loaded, decompressed, and initiated one of the
image files. Blinks 1x per 5
second interval Off
Normal state. Application software is initializing. Blinks 2x per 5
second interval Off
Normal state. Application is identifying all library components. Blinks 3x per 5
second interval Off
Normal state. Application has identified all library components. On Off
To reset the card, insert a paper clip into the hole. Reset hole 4
Controls and indicators 43
