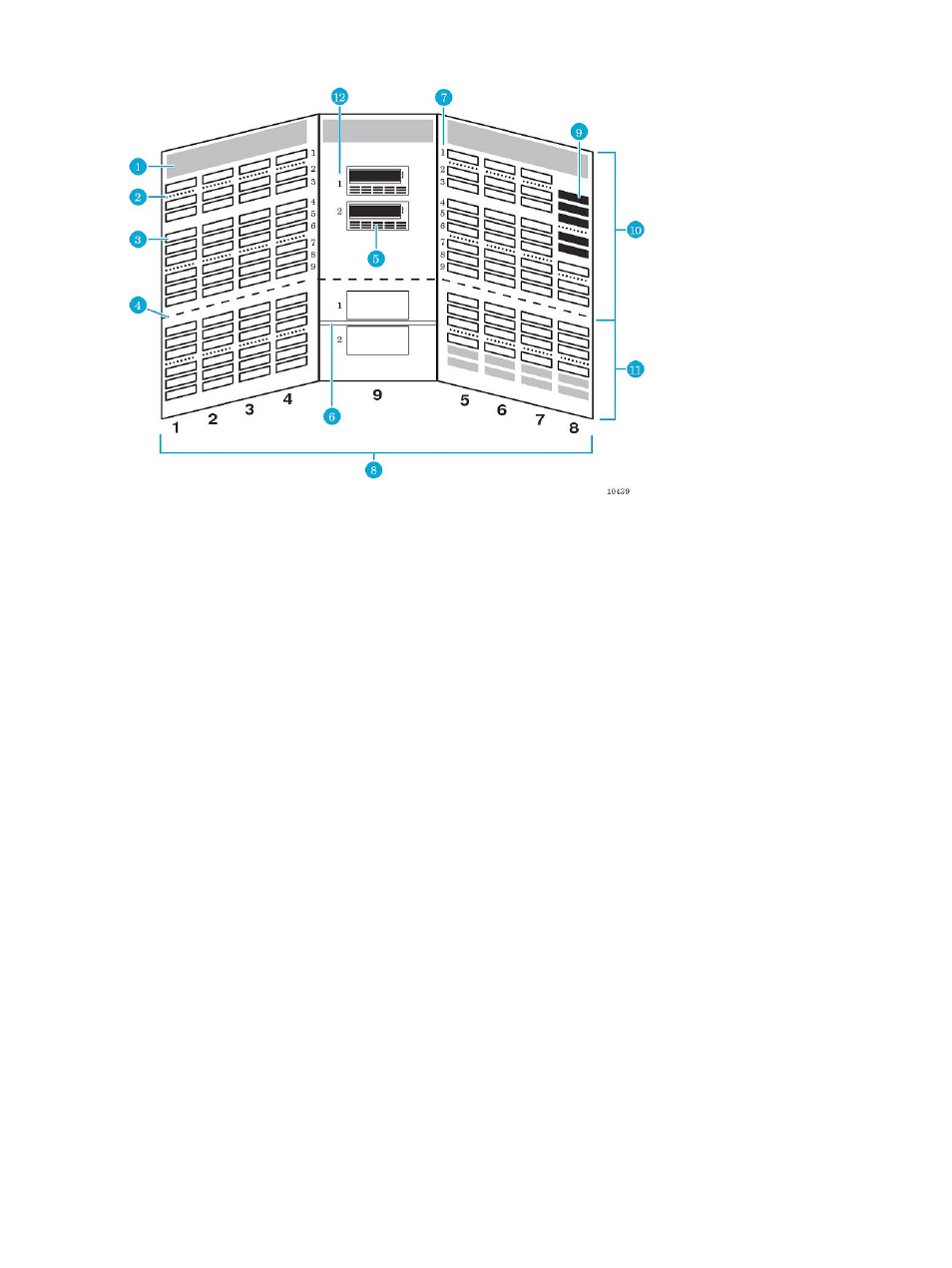

Figure 19 Slot numbering in the base module for the EML 71e

2. Array targets for the barcode scanner

1. Robot park zone

4. Software demarcation between upper and lower modules
for slot counting purposes

3. Slots available for data cartridges

6. Expansion identification label

5. Tape drives

8. Column numbering

7. Row numbering

10. 8U base module

9. Load port slots

12. Tape drive numbering

11. 4U base module

Library overview
