Use the control panel
The control panel has a VGA touchscreen that provides access to all device functions. Use the
buttons and numeric keypad to control jobs and the device status. The LEDs indicate overall device
status.
Control-panel layout

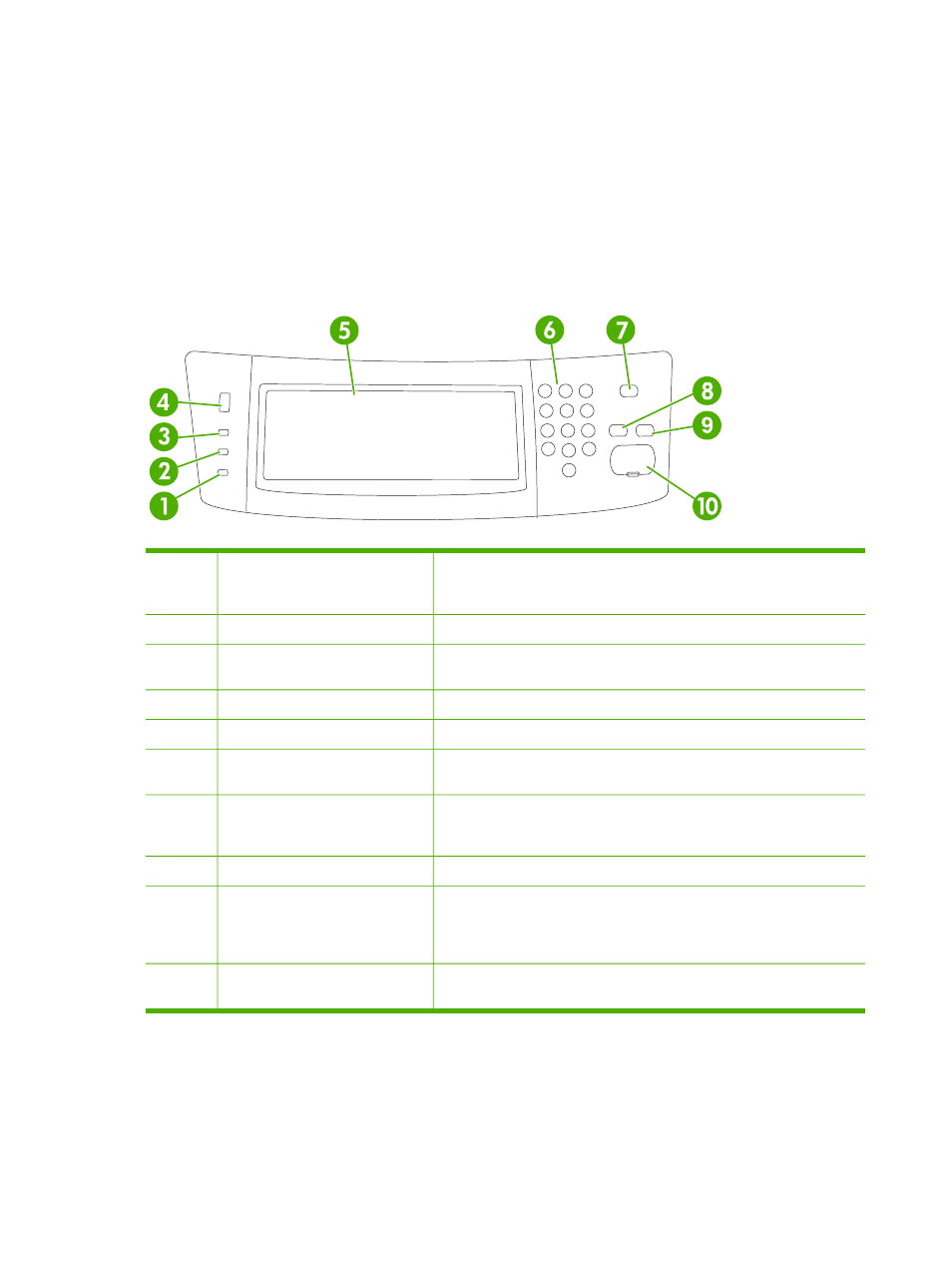

The control panel includes a touchscreen graphical display, job-control buttons, a numeric keypad,
and three light-emitting diode (LED) status lights.
1 Attention light The Attention light indicates that the device has a condition that requires
intervention. Examples include an empty paper tray or an error message
on the touchscreen.
2 Data light The Data light indicates that the device is receiving data.
3 Ready light The Ready light indicates that the device is ready to begin processing
any job.
4 Brightness-adjustment dial Turn the dial to control the brightness of the touchscreen.
5 Touchscreen graphical display Use the touchscreen to open and set up all device functions.
6 Numeric keypad Allows you to type numeric values for number of copies required and
other numeric values.
7 Sleep button If the device is inactive for a long period of time, it automatically enters a
sleep mode. To place the device into sleep mode or to reactivate the
device, press the
Sleep button.
8 Reset button Resets the job settings to factory or user-defined default values.
9 Stop button Stops the active job. While stopped, the control panel shows the options
for the stopped job (for example, if you press the Stop button while the
device is processing a print job, the control panel message prompts you
to cancel or resume the print job).
10 Start button Begins a copy job, starts digital sending, or continues a job that has been
interrupted.
