Component identification 7

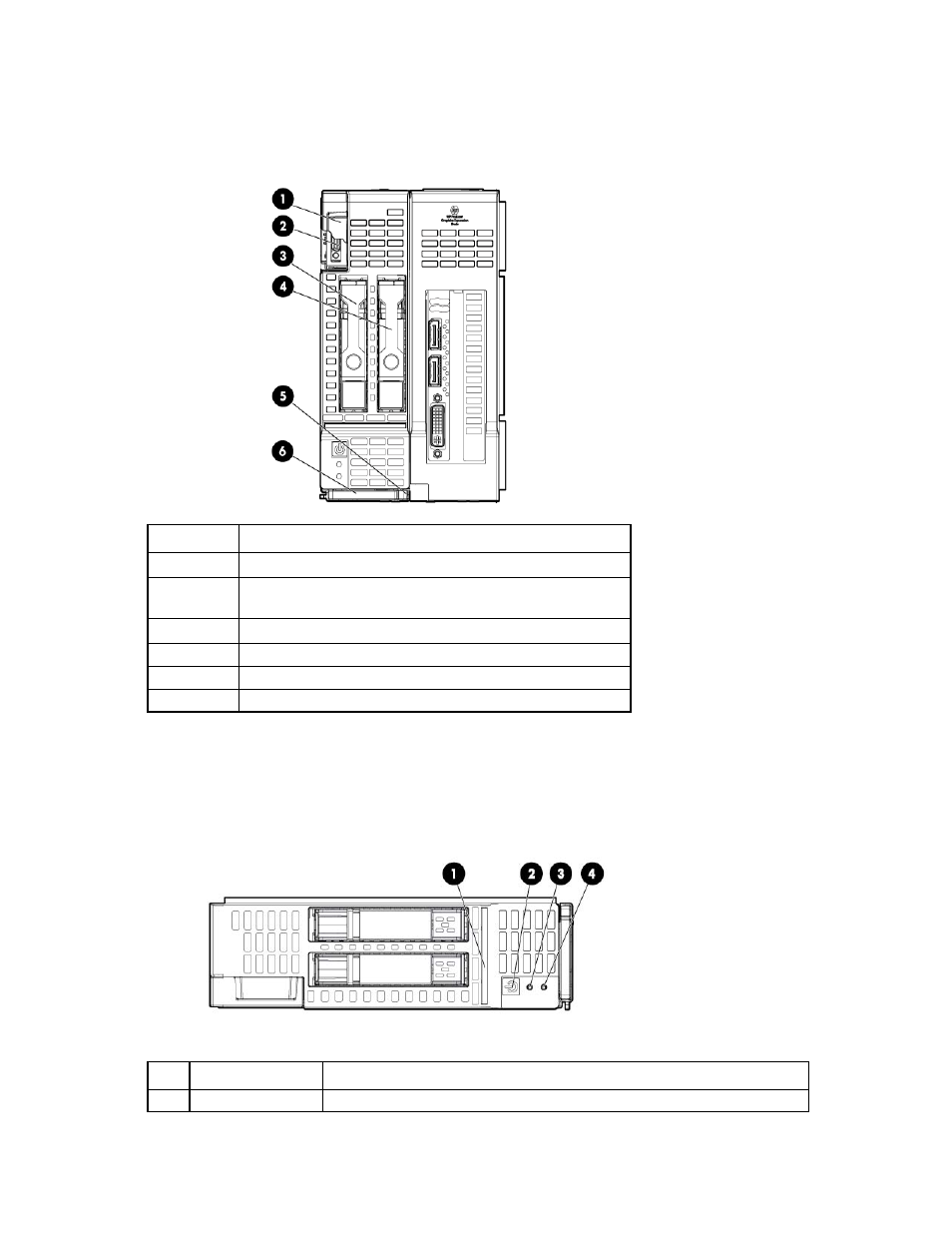

Front panel components for workstation blade with
graphics expansion blade
Item Description
1 Serial label pull tab
2 HP c-Class Blade SUV connector* (behind the serial label pull
tab)
3 Drive bay 2
4 Drive bay 1
5 Server blade release lever
6 Server blade release button
* The SUV connector and the HP c-Class SUV Cable are used for some server blade configuration and diagnostic
procedures.
Front panel LEDs and buttons
Item Description Status
1 Health status LED Solid Green = Normal (System is powered on)
