Page 28
Operations 28
Install the NVIDIA Quadro K5000 or K6000 graphics
card
Required tools for this procedure:
•
T-10/T-15 Torx screwdriver (provided inside the server)
•
HP Insight Diagnostics software
To remove the graphics card from the graphics expansion blade:
1.
Power down the workstation blade (on page
2.
Remove the workstation blade.
3.
Remove the WS460c Graphics Expansion Blade access panel (on page
4.
Remove the WS460c Graphics Expansion Blade PCIe card cage (on page
5.

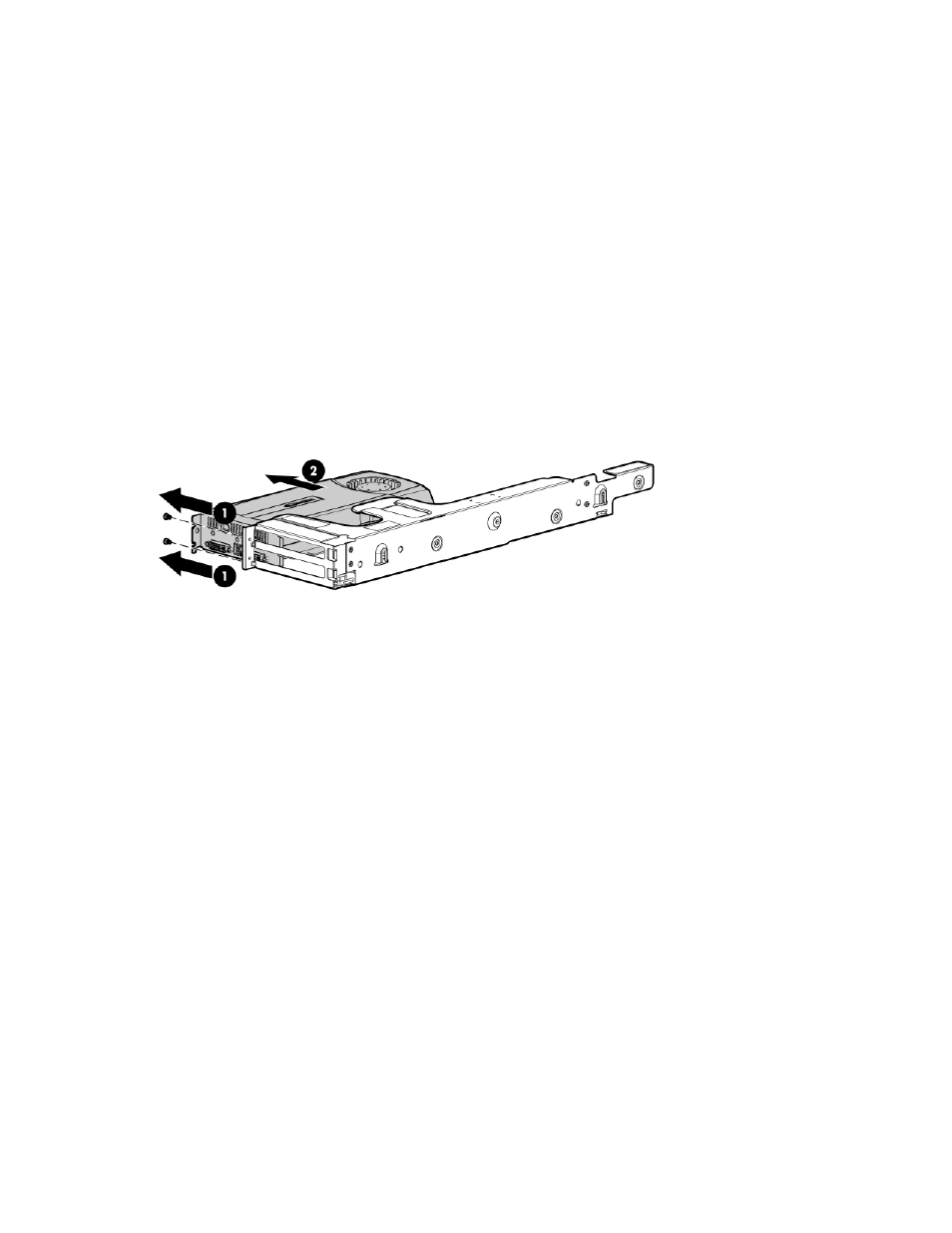

Disconnect any power cables from the graphics card, disconnect the retaining screws, and then remove
the graphics card from the card cage.
6.
Insert the NVIDIA Quadro K5000 or K6000 graphics card into the card cage.
7.
Install two screws at the I/O connector panel to secure graphics card to the card cage.
8.
Install the card cage to the workstation blade.
9.
Install power cables to the graphics card power connector located at the end with cooling fan.
10.
Install access panel and reinstall the workstation blade to the enclosure.
The installation is complete. For software installation information, see the Microsoft Windows on HP ProLiant
WS460c Gen8 Workstation Blade with WS460c Graphics Expansion Blade Administrator Guide.
Install the NVIDIA GRID K1 or GRID K2 I/O Plate
Required tools for this procedure:
•
NVIDIA GRID K1 I/O plate or NVIDIA GRID K2 I/O plate
•
M2.5x6 mm flat head screws (2)
To remove the graphics cards from the graphics expansion blade and install the plate:
1.
Power down the workstation blade (on page
2.
