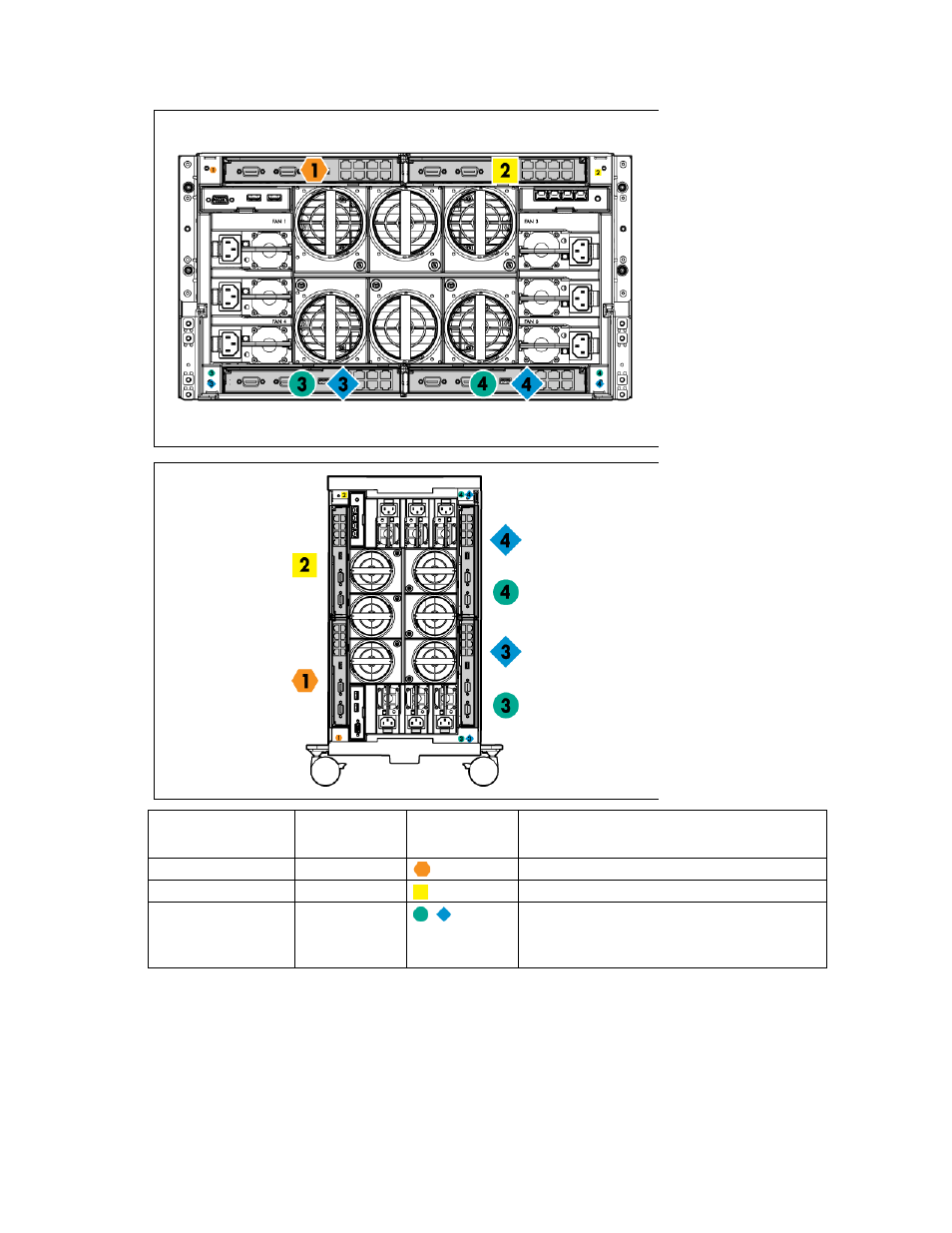

• HP BladeSystem c3000 Enclosure and Tower Enclosure
Server blade signal Interconnect
bay number
Interconnect
bay label Notes
FlexibleLOM 1 —
Mezzanine 1 2 Four port cards connect to bay 2.
Mezzanine 2 3 and 4 • Four port cards
• Ports 1 and 3 connect to bay 3.
• Ports 2 and 4 connect to bay 4.
Connecting to the network
To connect the HP BladeSystem to a network, each enclosure must be configured with network interconnect
devices to manage signals between the workstation blades and the external network.
