Component identification 10
Item LED Status Definition
Flashing amber The drive is not configured and predicts the drive will fail.
Solid amber The drive has failed.
Off The drive is not configured by a RAID controller.

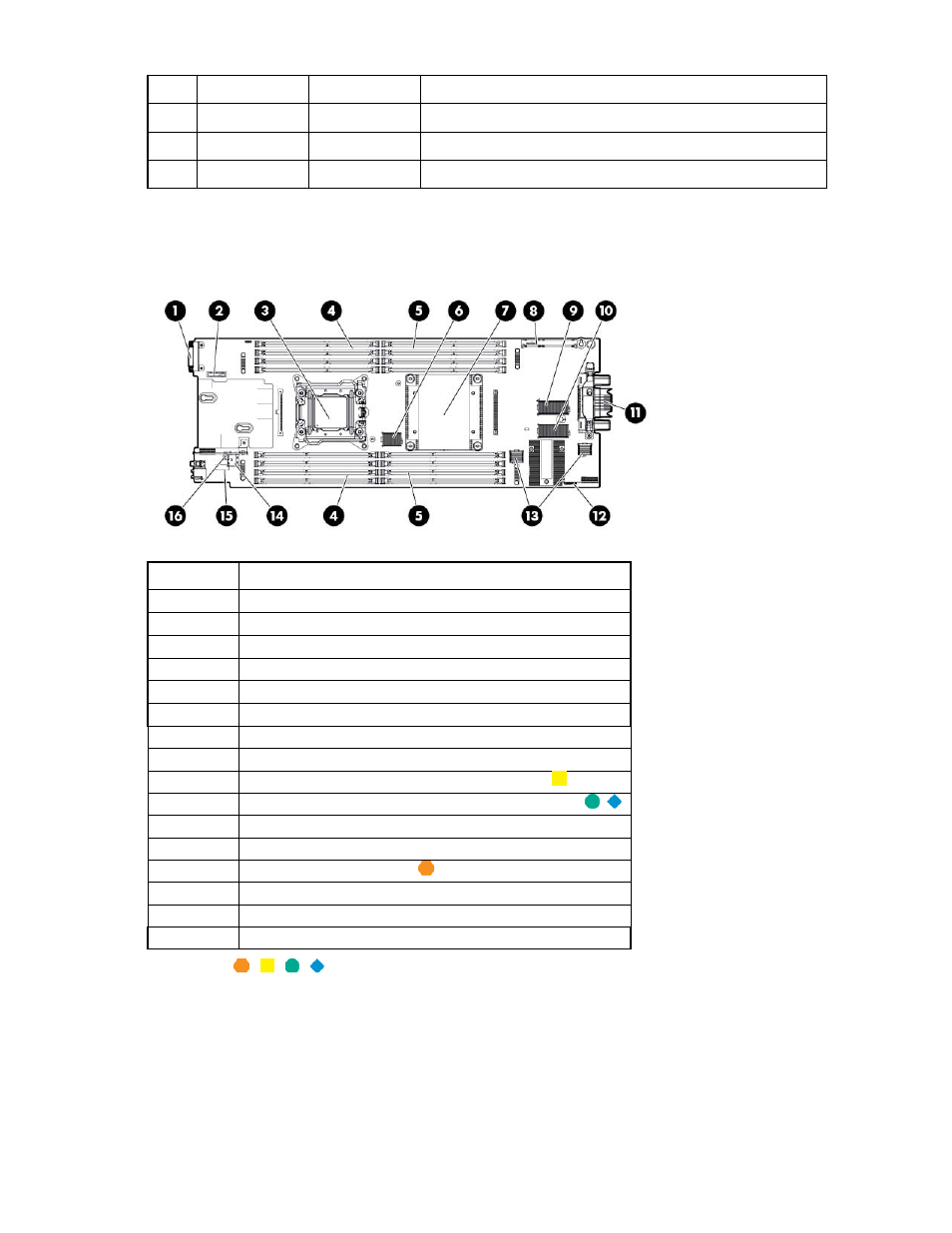

System board components
Item Description
1
HP c-Class Blade SUV Cable connector
2 System battery
3 Processor socket 2
4 Processor 2 DIMM slots (8)
5 Processor 1 DIMM slots (8)
6 SAS controller connector
7
Processor socket 1 (populated)
8 Accelerator cache connector
9 Mezzanine connector 1 (Type A mezzanine only)
10 Mezzanine connector 2 (Type A or Type B mezzanine)
11 Enclosure connector
12 MicroSD card slot
13 FlexibleLOM connectors (2)
14 Internal USB connector
15 System maintenance switch
16 TPM connector
The symbols correspond to the symbols located on the interconnect bays. For more information, see the
HP ProLiant WS460c Gen8 Graphics Server Blade and Expansion Blade Installation Instructions on the HP website
(
http://www.hp.com/support ).
