Operations 26

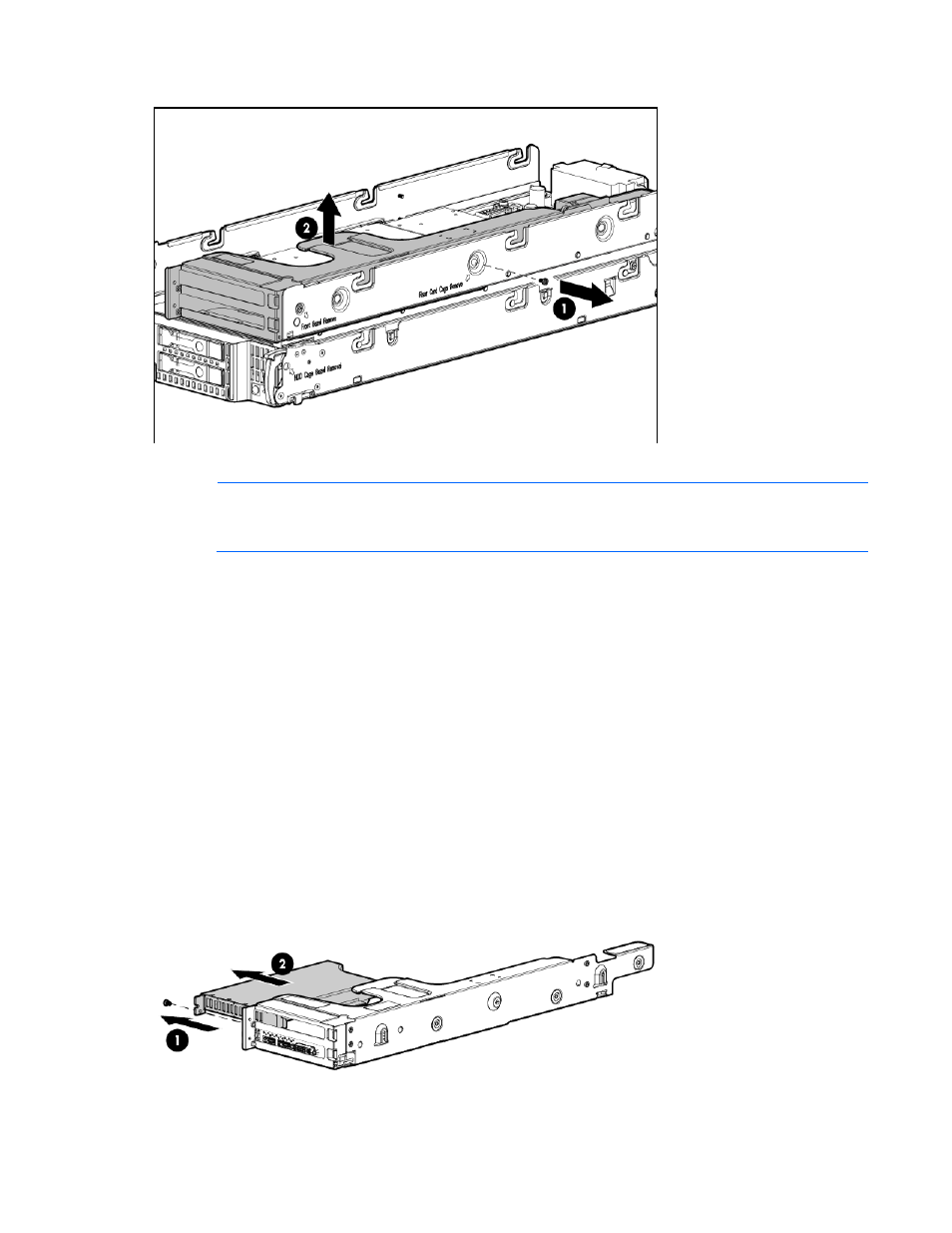

9. Remove the anchoring pin from the graphics expansion blade, and then remove the card cage.
To reinstall the component, reverse the removal procedure.
NOTE: After the reinstalling the pass-through mezzanine cards, ensure DIMMs are seated
correctly by pressing down the DIMMs and locking the latch.
Install the NVIDIA Quadro K4000 graphics card
Required tools for this procedure:
• T-10/T-15 Torx screwdriver (provided inside the server)
• HP Insight Diagnostics software
For basic installation instructions, follow these steps. For more specific installation information, see the HP
ProLiant WS460c Gen8 Graphics Server Blade and Expansion Blade Maintenance and Service Guide.
1. Power down the workstation blade (on page 14 ).
2. Remove the workstation blade (on page 15 ).
3. Remove the WS460c Graphics Expansion Blade access panel (on page 20 ).
4. Remove the WS460c Graphics Expansion Blade PCIe card cage (on page 23 ).
5. Disconnect any power cables from the graphics card, disconnect the retaining screws, and then remove
the graphics card cover from the top slot of the card cage.
