Remove the WS460c Graphics Expansion Blade

1.

Power down the workstation blade (on page

14

).

2.

Remove the workstation blade.

3.

Remove the WS460c Graphics Expansion Blade access panel (on page

20

).

4.

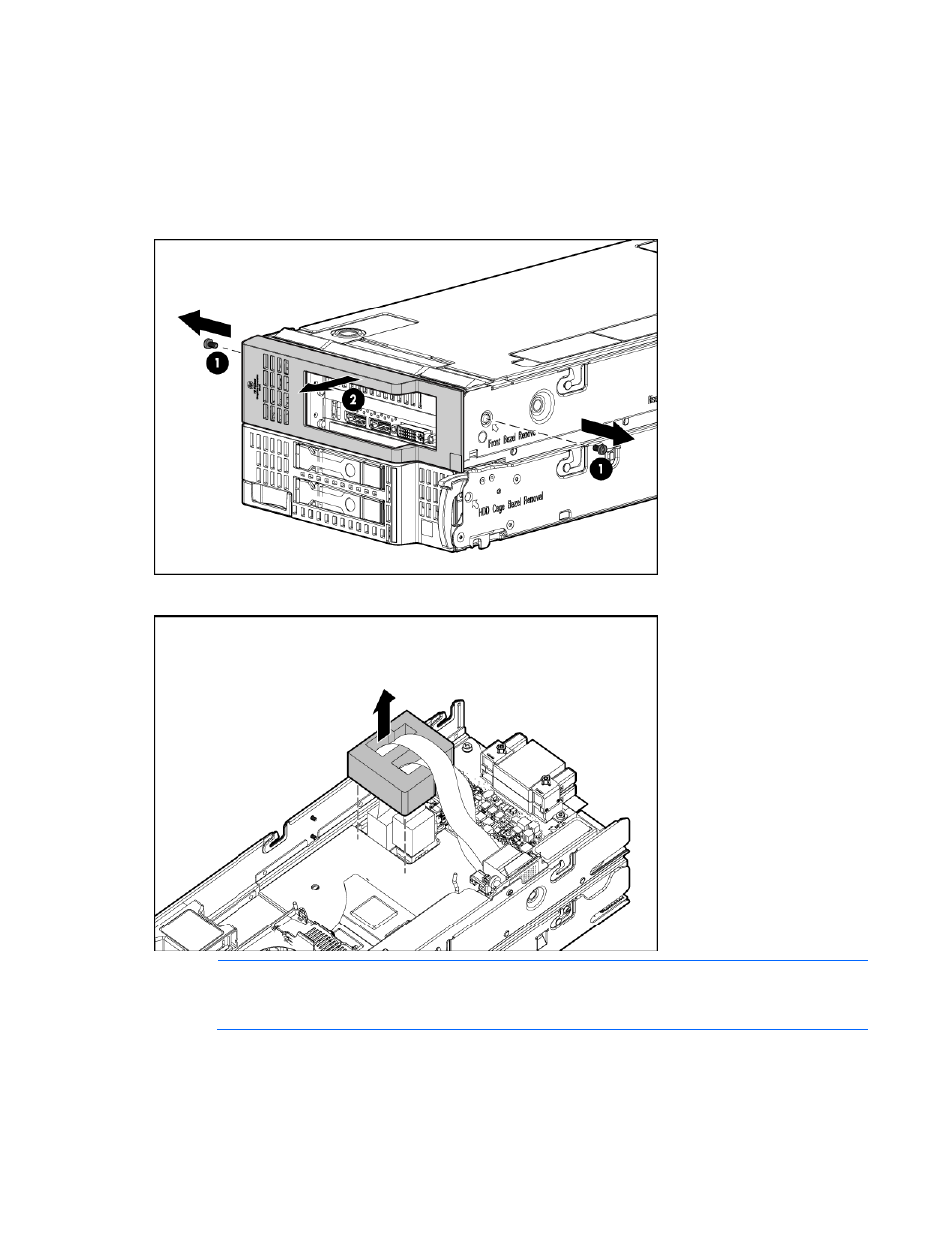

Remove the screws (1) and the front bezel (2).

5.

Remove the gasket.

NOTE:

A stabilizer/coupler (black) is used when coupling and stabilizing two mezzanine

pass-through cards. For a single mezzanine pass-through card, a stabilizer/coupler (clear)

enables the use of the upper mezzanine slot with other mezzanine cards.

Depending on the number of mezzanine pass-through cards used, select the appropriate
stabilizer/coupler (black or clear). A stabilizer/coupler must always be used when an expansion blade
