Setup 38

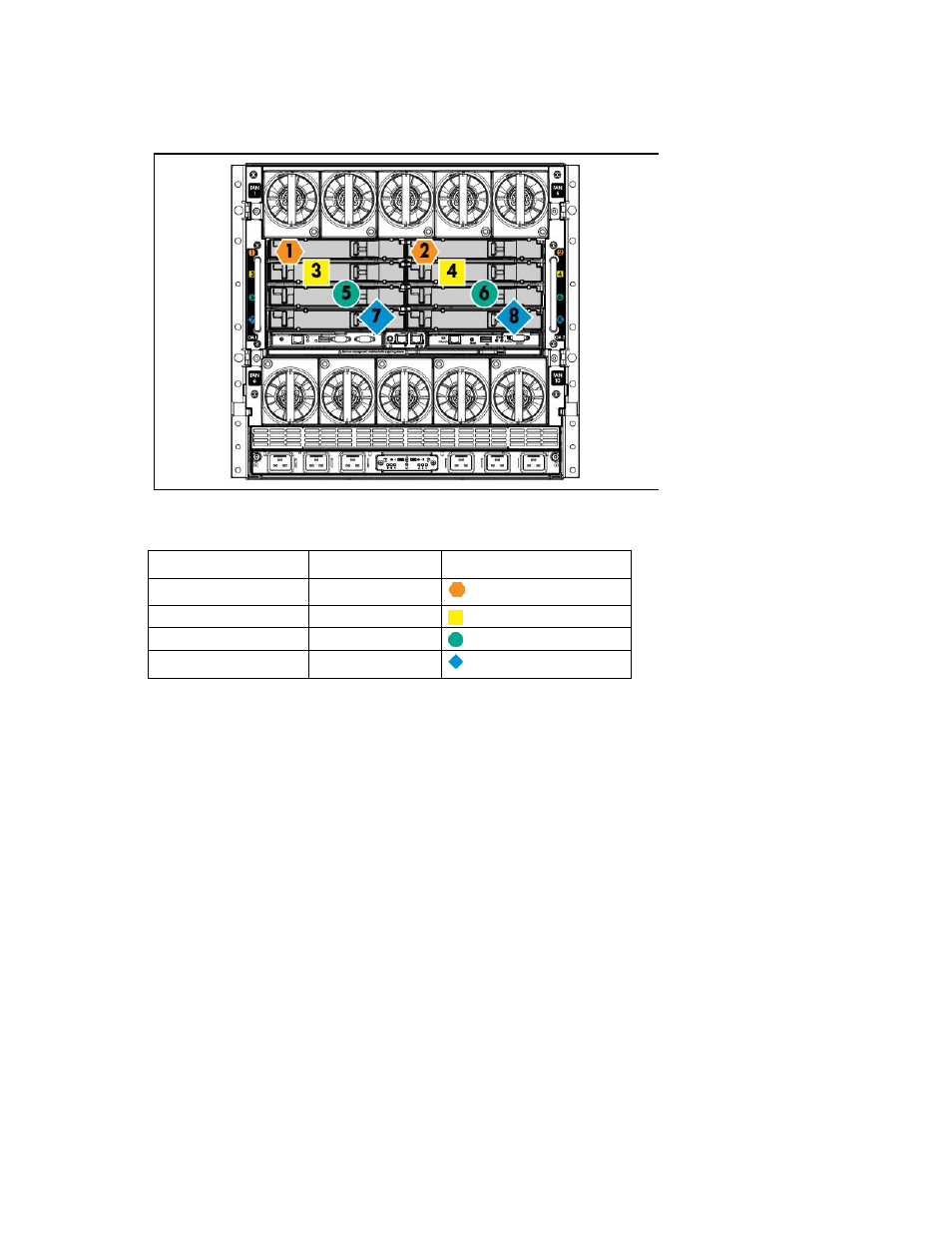

Interconnect bay numbering and device mapping
• HP BladeSystem c7000 Enclosure
To support network connections for specific signals, install an interconnect module in the bay corresponding
to the FlexibleLOM or mezzanine signals.
Server blade signal Interconnect bay Interconnect bay labels
FlexibleLOM 1 and 2
Mezzanine 1 3 and 4
Mezzanine 2 5 and 6
7 and 8
For detailed port mapping information, see the HP BladeSystem enclosure installation poster or the
HP BladeSystem enclosure setup and installation guide on the HP website
( http://www.hp.com/go/bladesystem/documentation ).
