HP StorageWorks Simple SAN Connection Manager User Guide 77

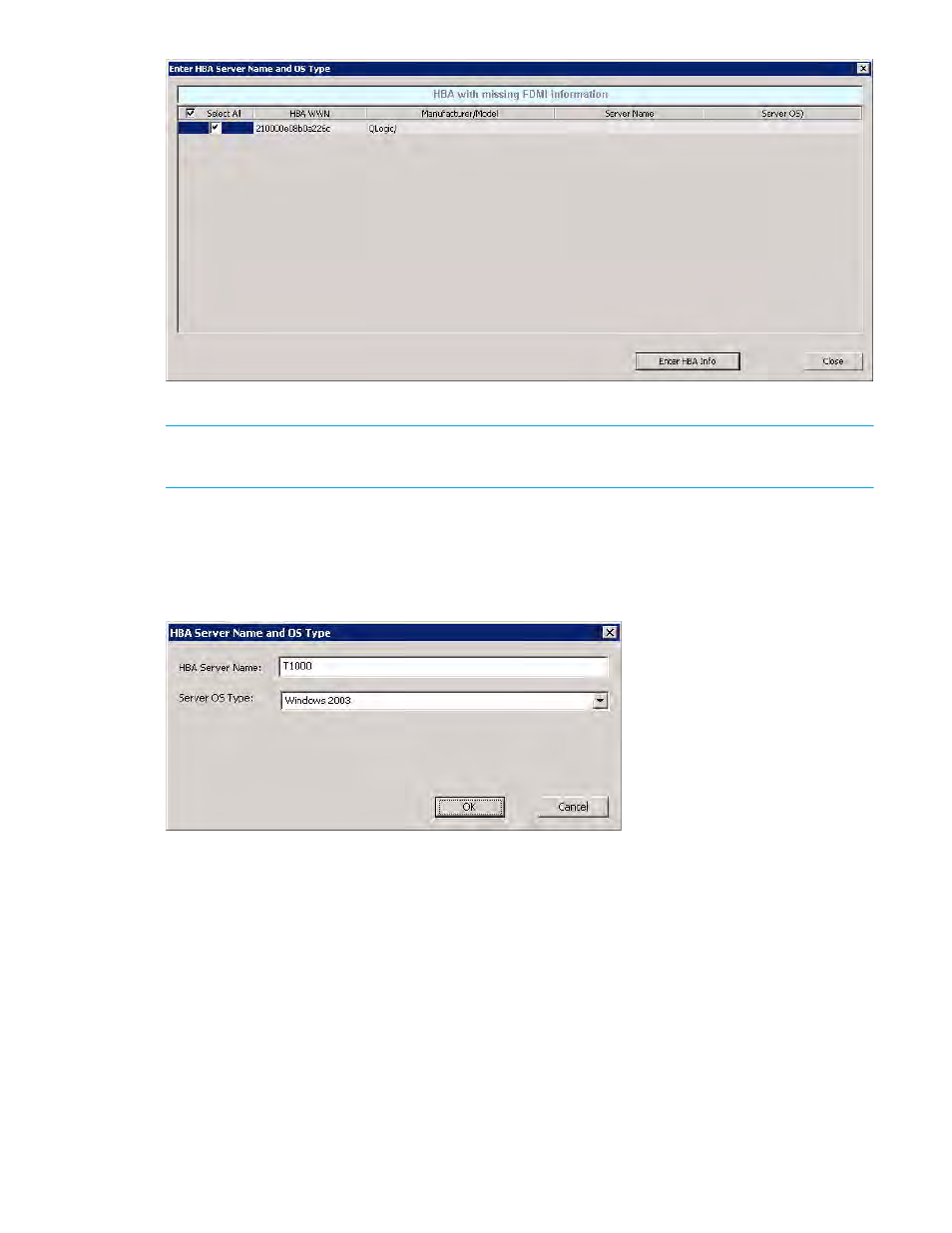

Figure 48 Enter HBA Server Name and OS Type dialog box
NOTE: You can also access the Enter HBA Server Name and OS Type dialog box by opening the
Advanced Operations menu, and then clicking Edit Manual FDMI List.
2. From the list of HBAs with missing FDMI information, select the check box next to one or more HBAs. To
select all HBAs, select the Select All check box.
When at least one HBA is selected, the Enter HBA Info button is enabled.
3. Click Enter HBA Info.
The HBA Server Name and OS Type dialog box (
Figure 49 ) opens.
Figure 49 HBA Server Name and OS Type dialog box
4. In the HBA Server Name box, type a server name for the HBA.
5. From the Server OS Type list, select the operating system type for the server.
6. To save this data for the HBA and close this dialog box, click OK. To close this dialog box without
saving the HBA data, click Cancel.
The Enter HBA Server Name and OS Type dialog box in
Figure 48 now shows the server name and
OS type that you entered in the dialog box shown in Figure 49 .
7. Click Close to save this information and exit the dialog box.
