HP StorageWorks Simple SAN Connection Manager User Guide 31

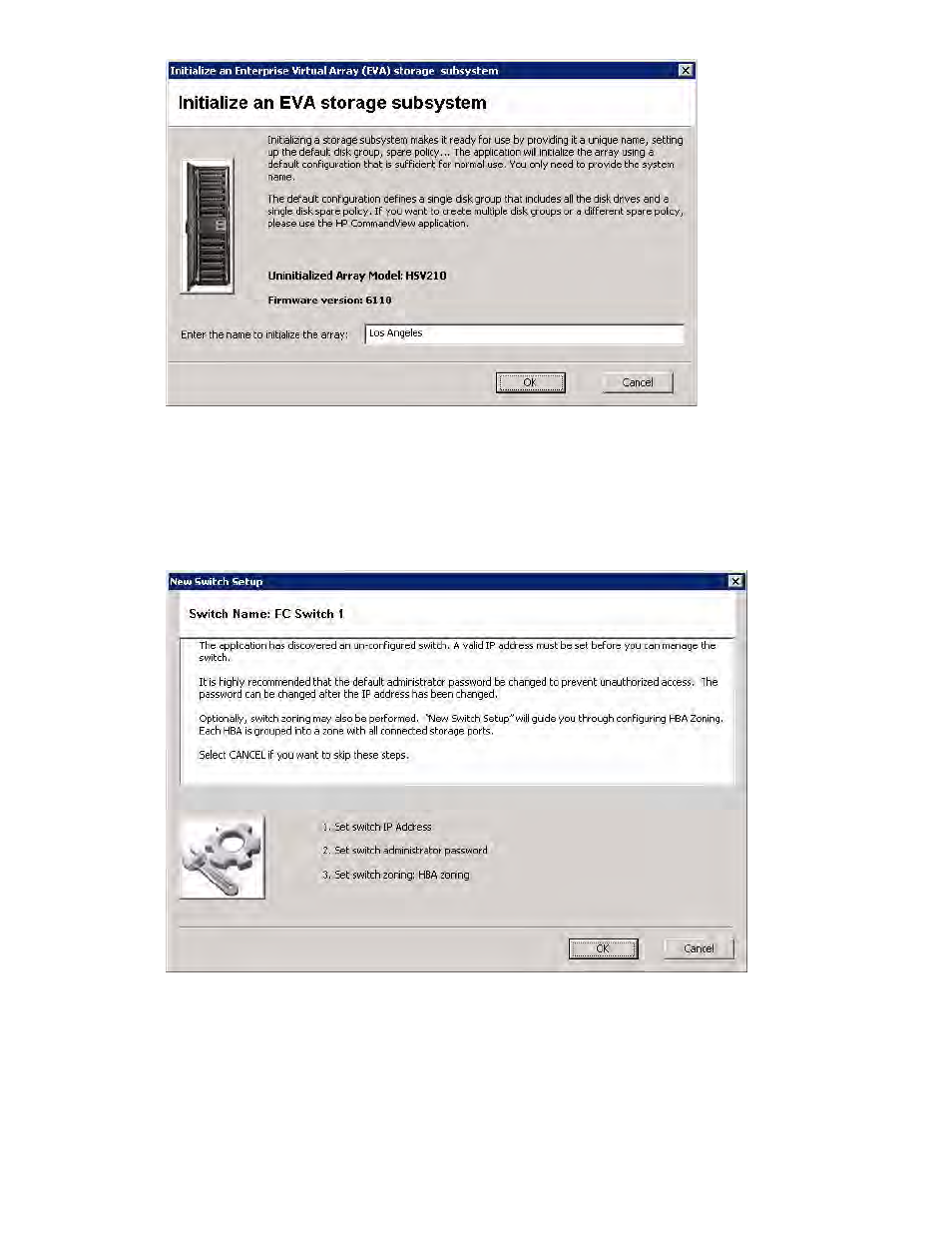

Figure 10 Initialize an Enterprise Virtual Array (EVA) Storage Subsystem dialog box
3. Enter a name to identify this new storage subsystem array, and then click OK to initialize the subsystem
using the default configuration. (This step is not required for MSA storage.)
4. Wait while the application discovers (detects) switches, servers, storage subsystems, and logical disks.
This may take a few minutes.
If the application detects a new, unconfigured switch in your SAN, the New Switch Setup dialog box
( Figure 11 ) opens.
Figure 11 New Switch Setup dialog box
The New Switch Setup dialog box prompts you to set up the new switch by completing these three
steps:
1. Set switch IP address
2. Set switch administrator password
3. Set switch zoning: HBA zoning
