Managing H3C LSW1FC4P0 Interface Card
Configuring an H3C LSW1FC4P0 Interface Card
59273-00 C 33
Configuring VLAN Manager
The VLAN Manager dialog enables you to add, remove, or reset VLAN port
assignments. To open the VLAN Manager dialog (
Figure 2-17 ), open the Switch
menu, select FCoE, and select VLAN Manager. In the VLANs area, the list of
existing VLANs on this switch is displayed along with the maximum number of
VLANs allowed on the switch. The VLAN Assignments area shows the VLAN
each Ethernet port is in. Only Ethernet internal ports can be in VLANs, and any
given Ethernet port can only be assigned to a single VLAN at a time. There will
always be a default VLAN on the switch, and the default VLAN will always be
1002. By default, all the internal Ethernet ports are in the default VLAN. You are
not allowed to remove that default VLAN.

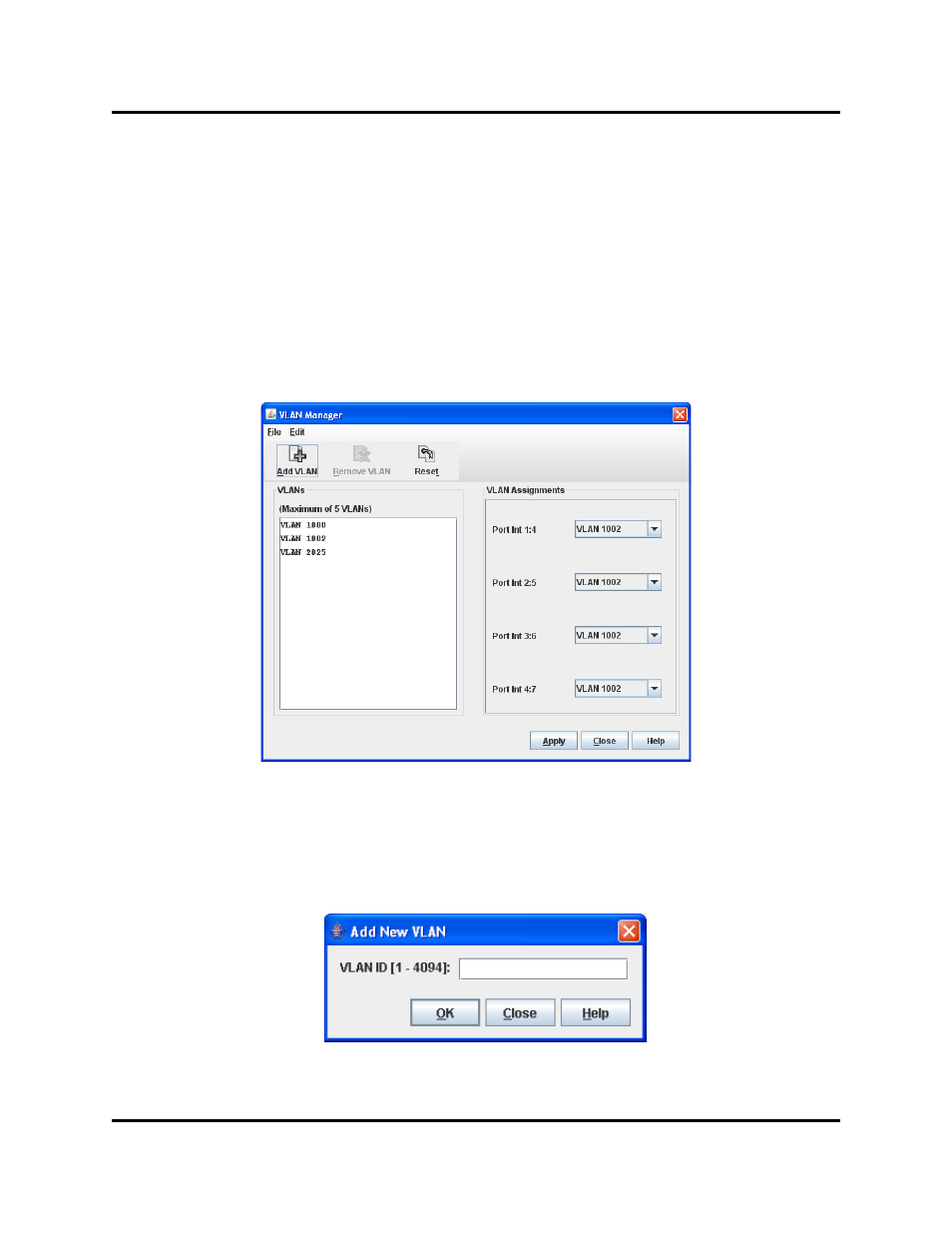

Figure 2-17. VLAN Manager Dialog
Adding a New VLAN The Add New VLAN dialog enables you to create a new
VLAN ID number. To open the Add New VLAN dialog ( Figure 2-18 ), open the Add
menu and select Add, or click the Add VLAN button on the VLAN Manger dialog
toolbar. Enter a number between 1 and 4094 in the VLAN ID box and click OK.
Figure 2-18. Add New VLAN Dialog
