Set up the printer – HP Designjet 4500 Printer series User Manual
Page 76

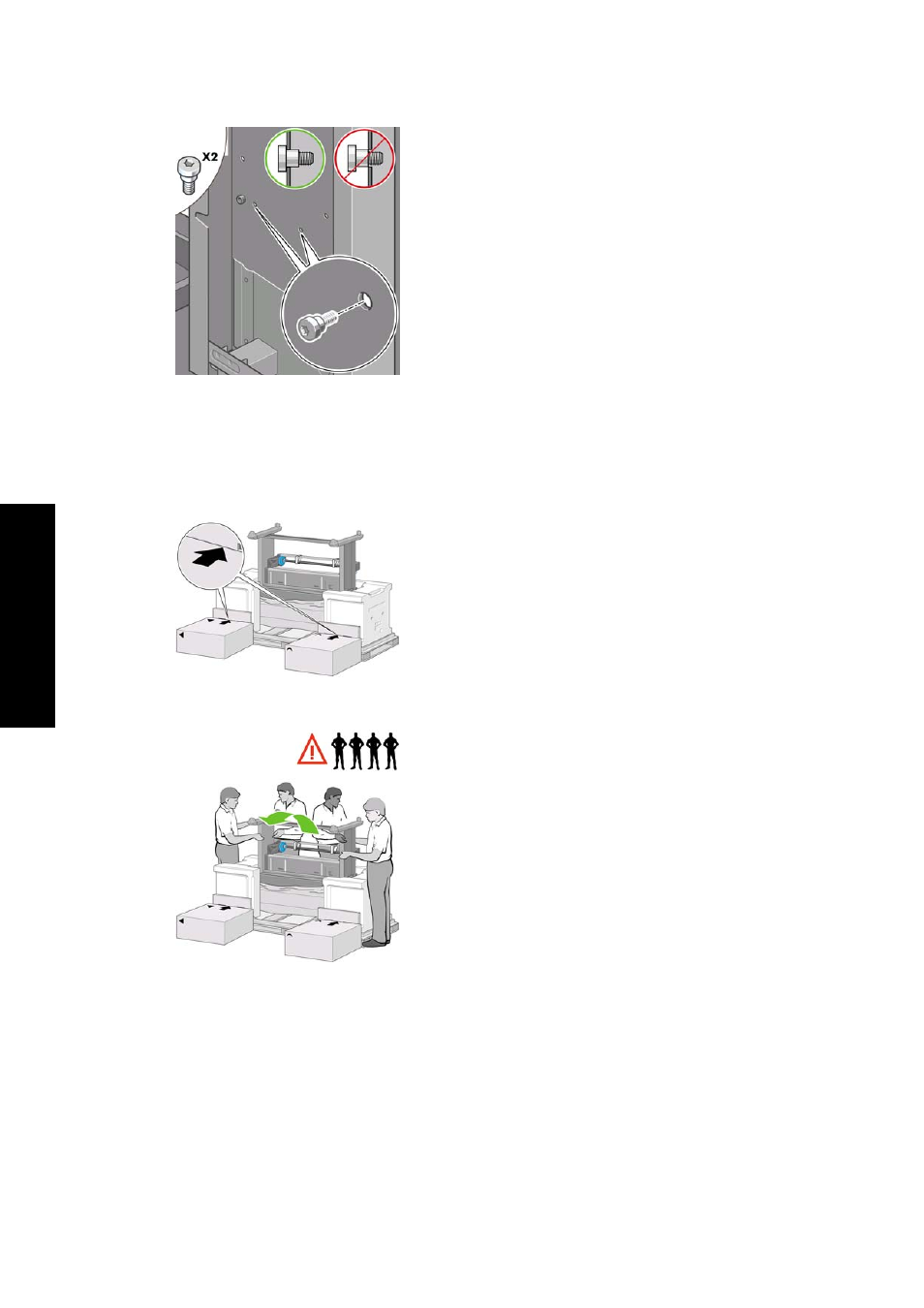

13. Fix the roll module to the left leg of the stand using two collar-headed screws.
Set up the printer
1.
Place the spare and consumables boxes against the rear of the printer box. The arrows on the
boxes must point towards the printer box. Check that the anti-slip material is still fixed to the two
rear wheels.
2.
Using four people, rotate the printer onto the spare and consumables boxes.
62
