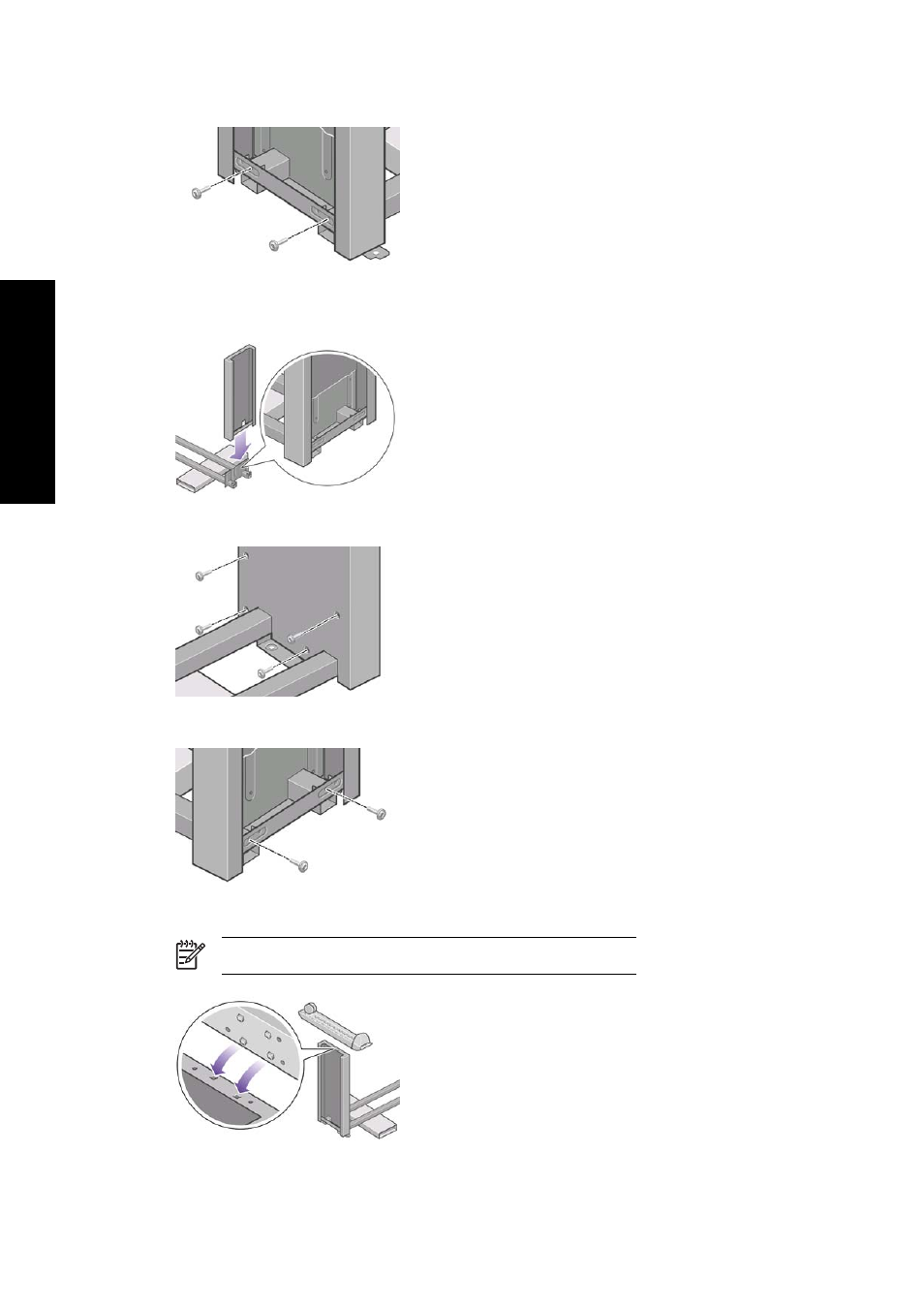

9. Fix the left leg to the cross-brace using two screws on the outer side of the leg.
10. Lower the right leg onto the right side of the cross-brace. The right leg will fit only on the right
side of the cross-brace.
11. Fix the right leg to the cross-brace using four screws on the inner side of the leg.
12. Fix the right leg to the cross-brace using two screws on the outer side of the leg.
13. Position a foot on the left leg. There are pins to help you to position the foot correctly.
NOTE Do not remove the anti-slip material from the wheel.
