HP Designjet 4500 Printer series User Manual
Page 67

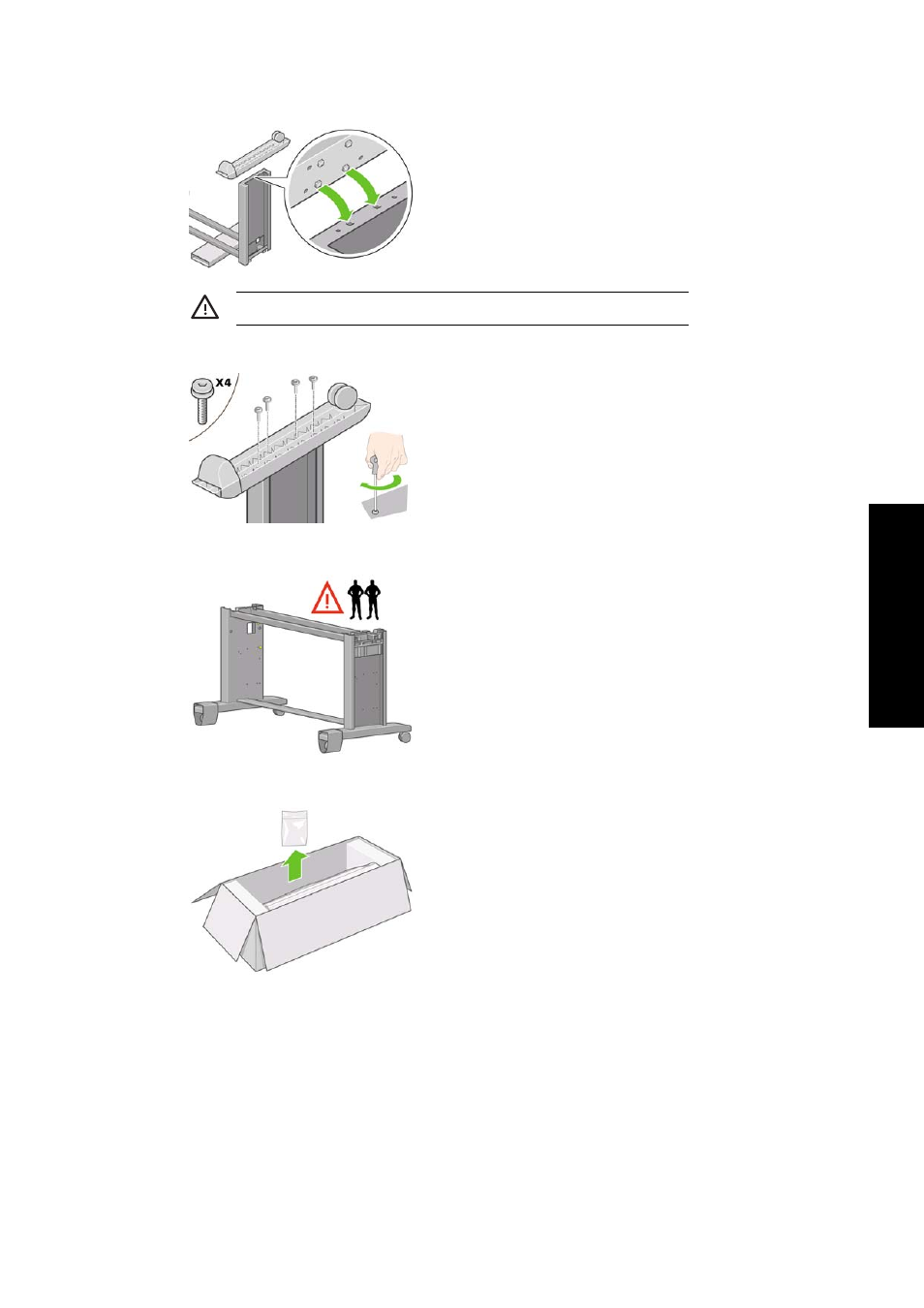

17. Position a foot on the right leg. There are pins to help you to position the foot correctly.
WARNING! Do not remove the anti-slip material from the wheel.
18. Fix the right foot using four screws.
19. Turn the stand assembly into an upright position as shown.
20. Open the box containing the roll module. Remove the plastic box containing the screws.
ENWW
Assemble the stand
53
