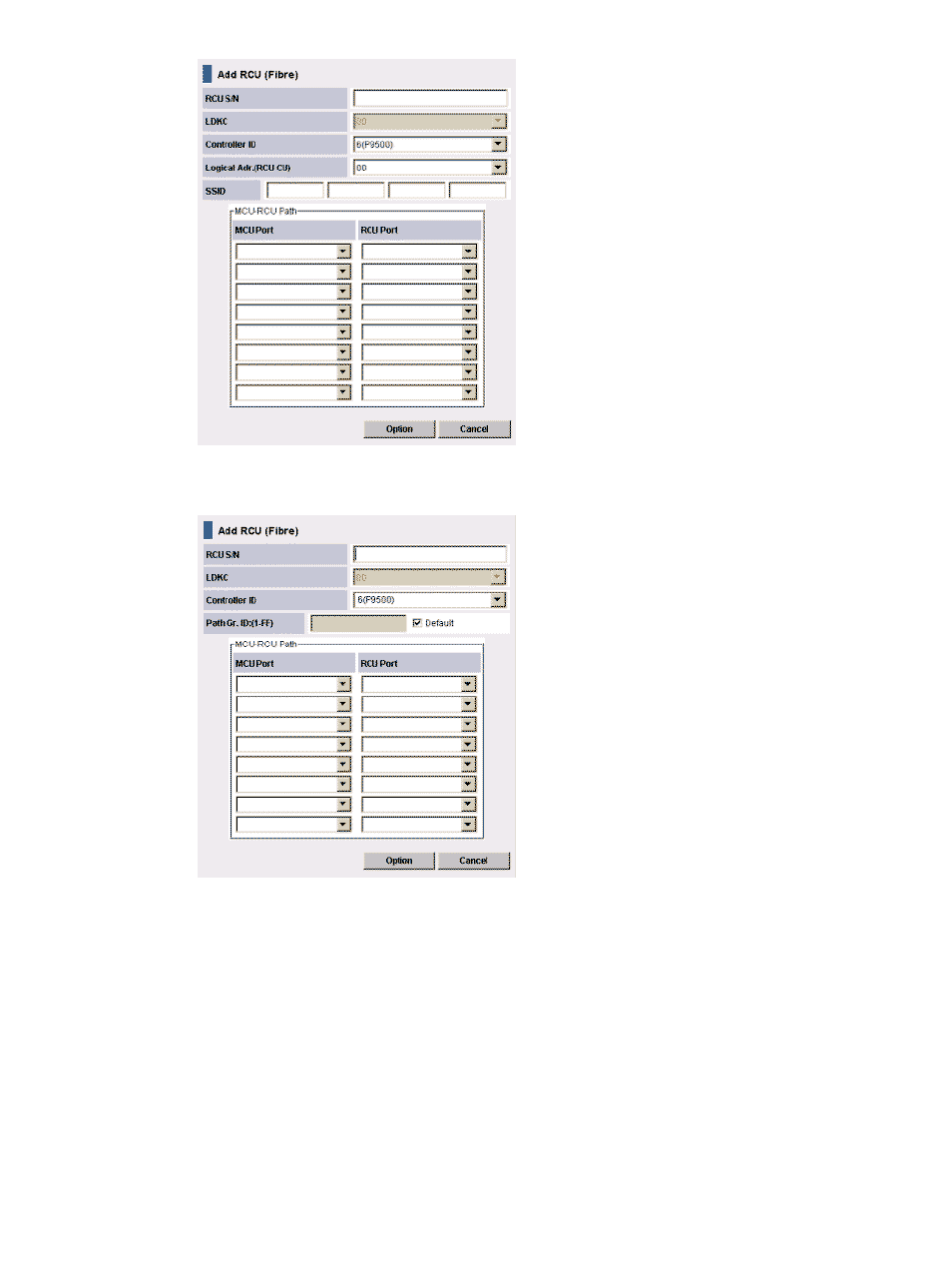

When CU Free is selected
6. In the RCU S/N box, enter the RCU’s 5-digit serial number.
7. In the Controller ID box, select the remote system’s controller ID.
8. In the Logical Adr. (RCU CU) box (appears when specific CU selected - not CU Free), enter the
CU number of the RCU being added. The CU number differs by the specified controller ID,
as follows:
•
When the specified controller ID is 6 (XP P9500) or 5 (XP24000/XP20000 Disk Array),
or 4 (XP12000 Disk Array or XP10000 Disk Array), you can select a CU number from
00 to FE.
•
When the specified controller ID is 4 (XP12000 Disk Array or XP10000 Disk Array), you
can select a CU number from 00 to 3F.
9. In the SSID boxes (appears when specific CU selected - not CU Free), type the SSIDs of the
RCU being added. The XP P9500 uses one SSID for each set of 256 volumes and one SSID
for each set of 64 volumes or four SSIDs per CU. SSID is 4-FFFF (hexadecimal).
