When a CU is selected, the CU setting is not available.

When a port is selected, the port setting is not available.

When GID is selected, the group and port settings are not available.

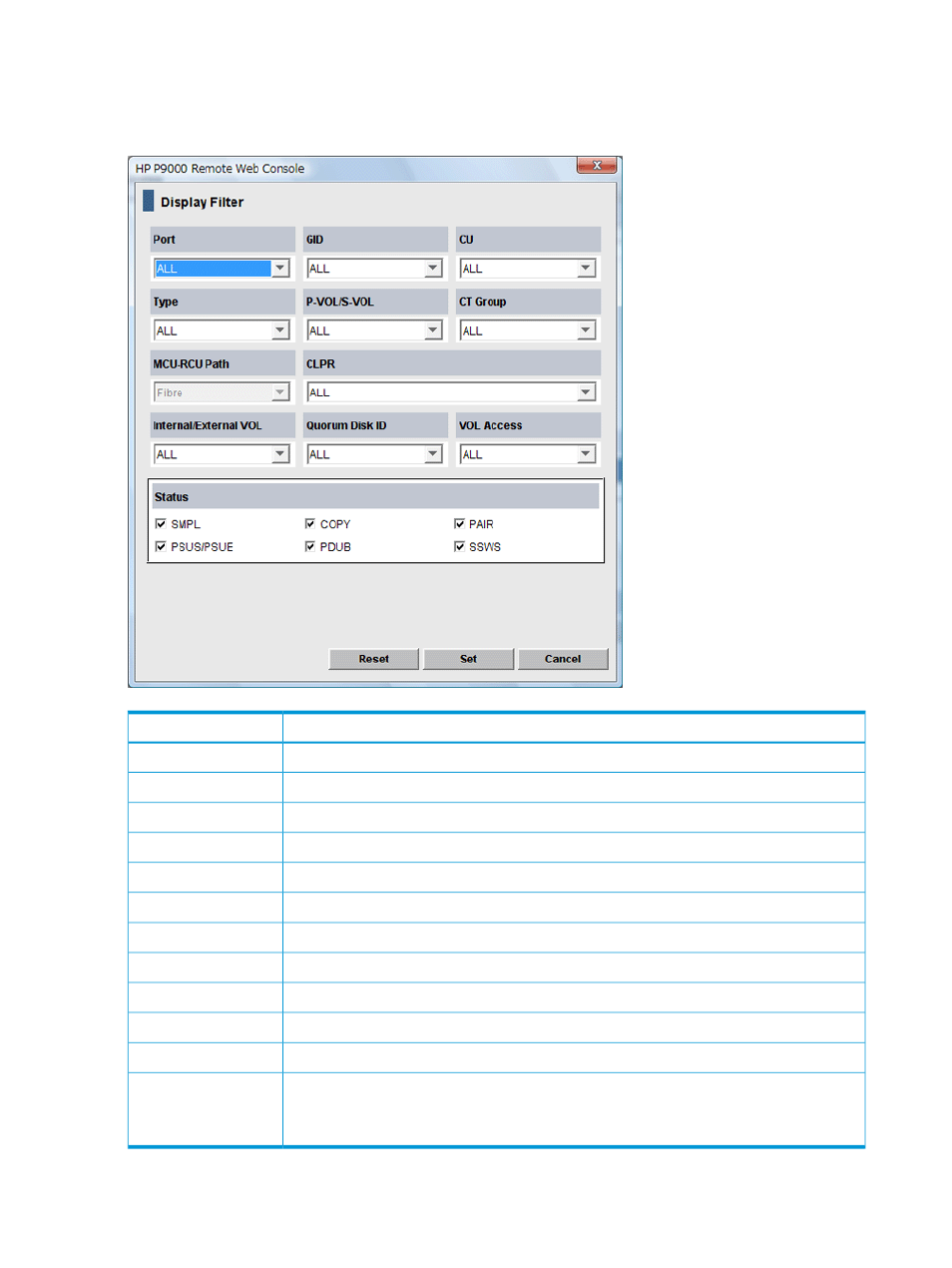

Description

Item

The volume’s port

Port

The GID (host group identification number)

GID

The related CU

CU

Pair type: synchronous, synchronous-C, Multi-C, ESAM, or all types

Type

The type of pair volume to display, P-VOL or S-VOL, or all types

P-VOL/S-VOL

The consistency group that a pair or volume belongs to.

CT Group

Path type (disabled at this time)

MCU-RCU Path

Cache logical partition

CLPR

Whether the volume is internal or external

Internal/External VOL

ESAM only. The quorum disk identification number specified for the ESAM pair.

Quorum Disk ID

ESAM volumes only. Identifies the volume that receives host I/Os (Access(Lock)).

VOL Access

Displays only volumes that have the selected RWC pair status: SMPL, COPY, PAIR, PSUS/PSUE,
PDUB (a LUSE status), and/or SSWS (ESAM pair only).

Status

When PDUB is selected, simplex volumes are not displayed.

104 GUI reference
