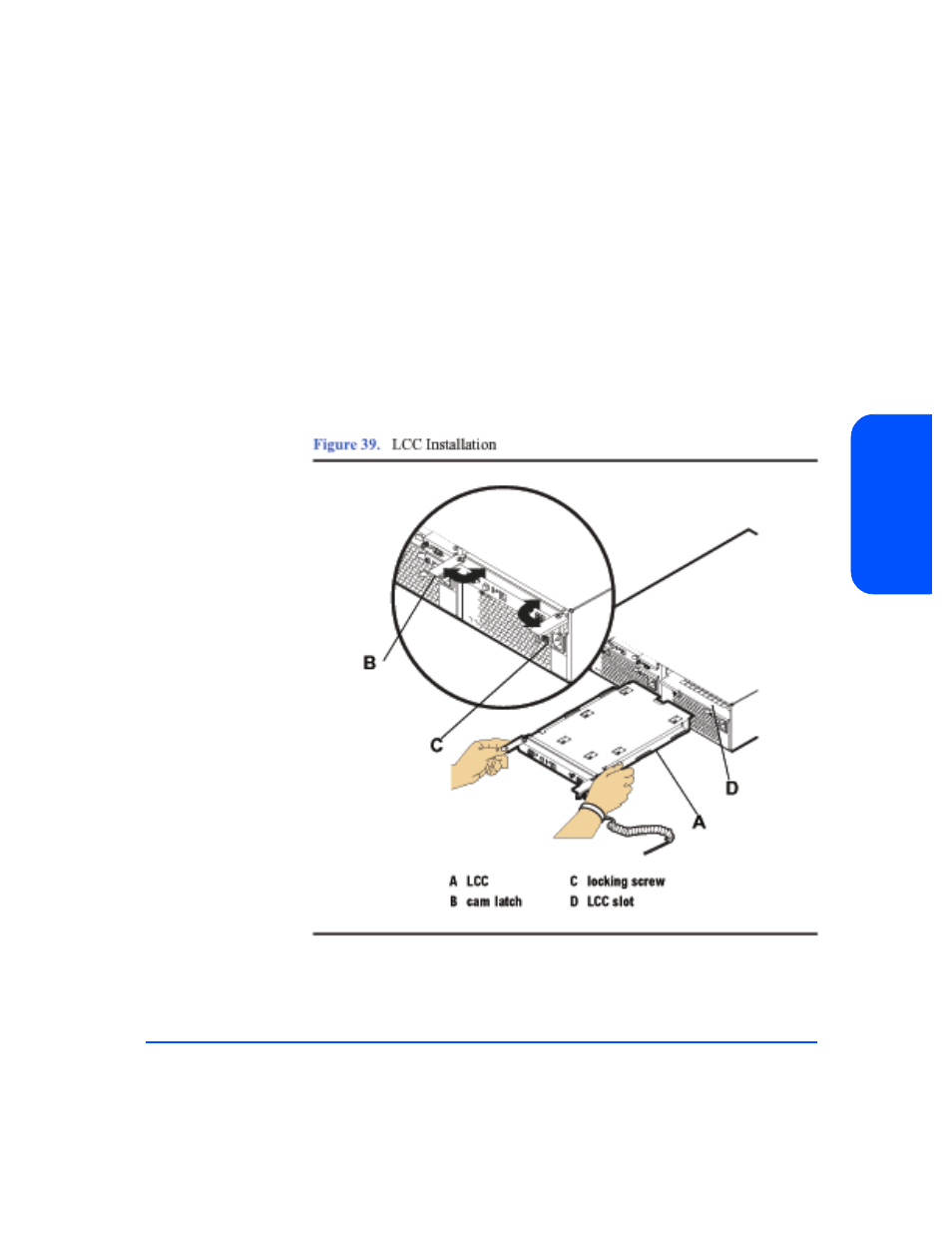

Figure 39, Lcc installation 65 – HP StorageWorks 2405 Disk System User Manual
Page 65

Installation
65
In
st
al
la
ti
o
n
4
Open the LCC cam latches (B in Figure 39) by pulling them away from the
center.
5
Align the LCC with the slot (D in Figure 39), and insert the LCC into the slot
at the back of the disk system. Stop pushing when the LCC meets the
midplane.
6
Press the cam latches inward and flat against the center. The cam action
draws the LCC completely into the slot and seats the connector pins on the
midplane.
7
Tighten the locking thumbscrews (C).
8
Repeat steps 2 through 7, installing the second LCC in the remaining empty
slot.
