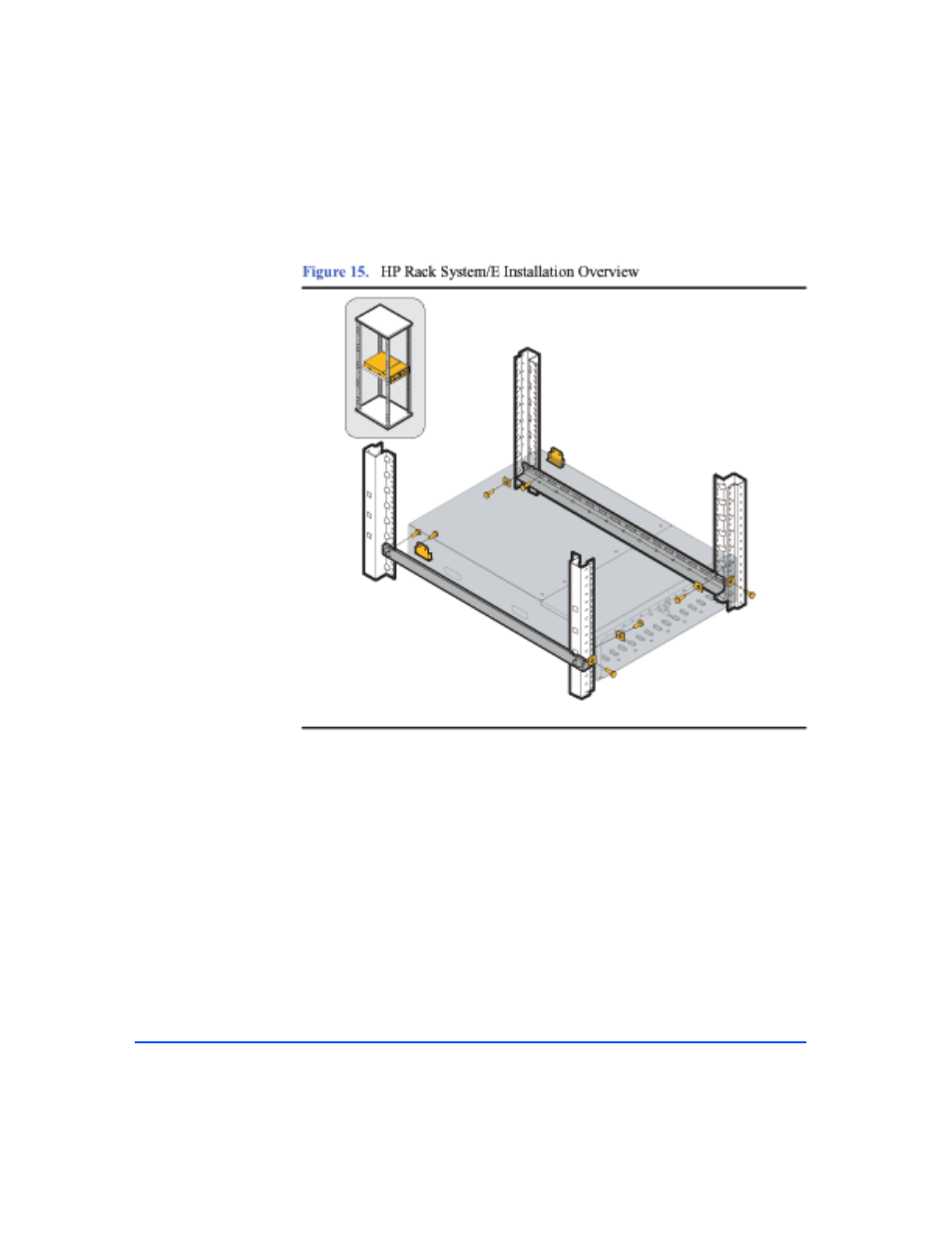

Figure 15, Hp rack system/e installation overview 42 – HP StorageWorks 2405 Disk System User Manual

Page 42

background image

42

Installation

2

Study the installation overview (see Figure 15).

The following tools are required for the installation of the storage device:

Flat-blade screwdriver

T25 nut driver

WARNING

To ensure cabinet or rack stability, and avoid possible injury,
always install the storage devices in the rack or cabinet from the
bottom up.

3

Locate a place on the rack columns with the available space required for the
installation of the storage device. The storage device and the rail kit require 3
EIA units of space.
