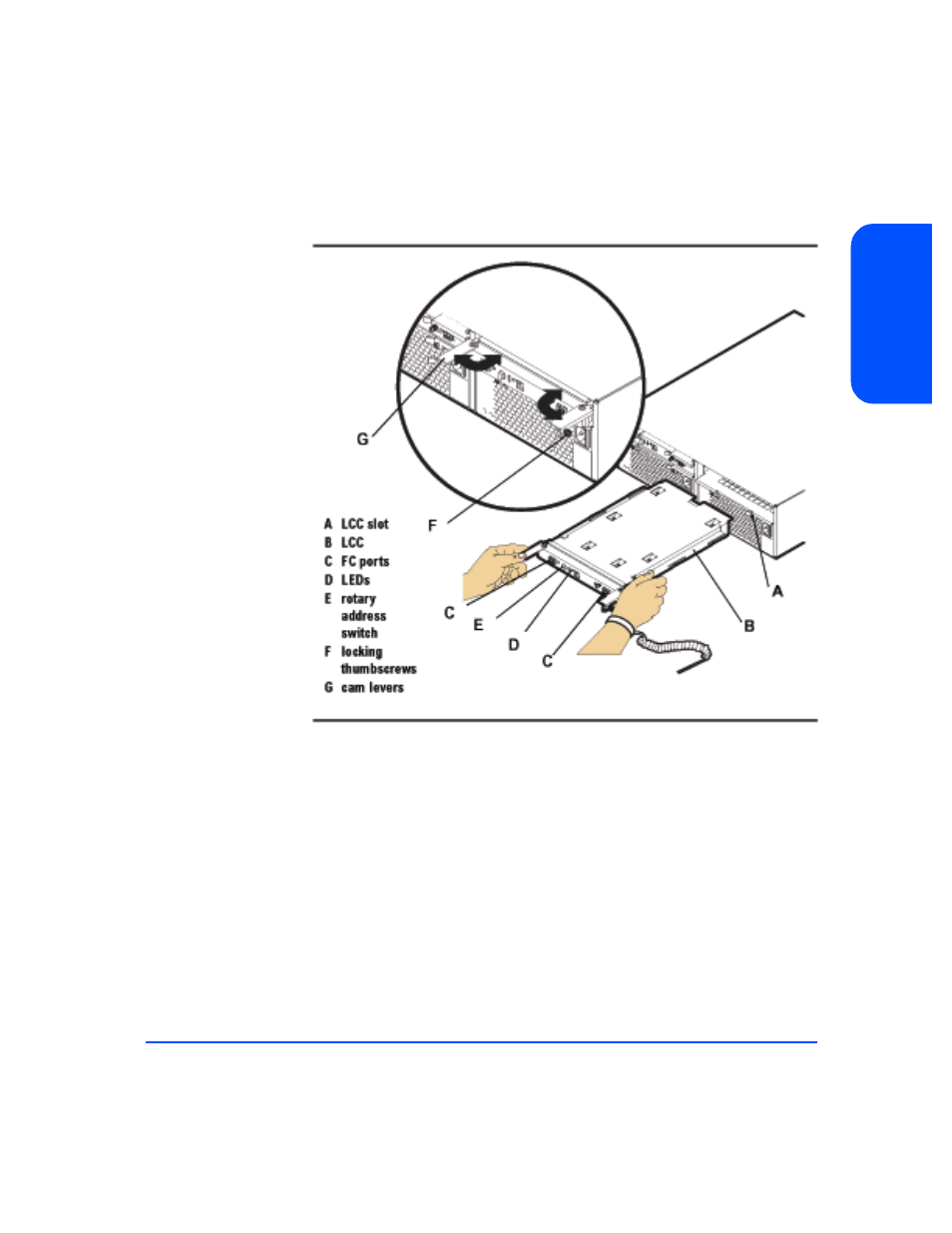

Figure 4.

LCC

Other features of the LCC are:

■

LEDs (D) indicating LCC status and bus configuration

■

Rotary switch (E)

■

Configuration switch with four settings:

1

Link Speed (1.0625 Gb/s or 2.125 Gb/s)

2

Reserved

3

Reserved

4

Power fail warning (enable/disable)

■

Locking screws (F)

■

Cam levers (G)
