3-28 Chapter 3: BIOS setup
Chapter 3
3.5.6 Onboard Devices Configuration
HD Audio Controller [Enabled]
[Disabled] Disables the controller.
[Enabled] Enables the High DUEFInition Audio Controller.
The following two items appear only when you set the HD Audio Controller item to
[Enabled].
Front Panel Type [HD]
Allows you to set the front panel audio connector (AAFP) mode to legacy AC’97 or
high-dUEFInition audio depending on the audio standard that the front panel audio
module supports.
[HD] Sets the front panel audio connector (AAFP) mode to high dUEFInition audio.
[AC97] Sets the front panel audio connector (AAFP) mode to legacy AC’97
SPDIF Out Type [SPDIF]
[SPDIF] Sets to [SPDIF] for SPDIF audio output.
[HDMI] Sets to [HDMI] for HDMI audio output.
Main Ai Tweaker Advanced Monitor Boot Tool
Exit
Version 2.10.1208. Copyright (C) 2012 American Megatrends, Inc.
Enabled/Disabled ASM1061 Storage
OPROM
→← : Select Screen
↑↓ : Select Item
Enter: Select
+/-: Change Opt.
F1: General Help
F2: Previous Values
F5: Optimized Defaults
F10: Save ESC: Exit
F12: Print Screen
Back Advanced\ Onboard Devices Configuration >

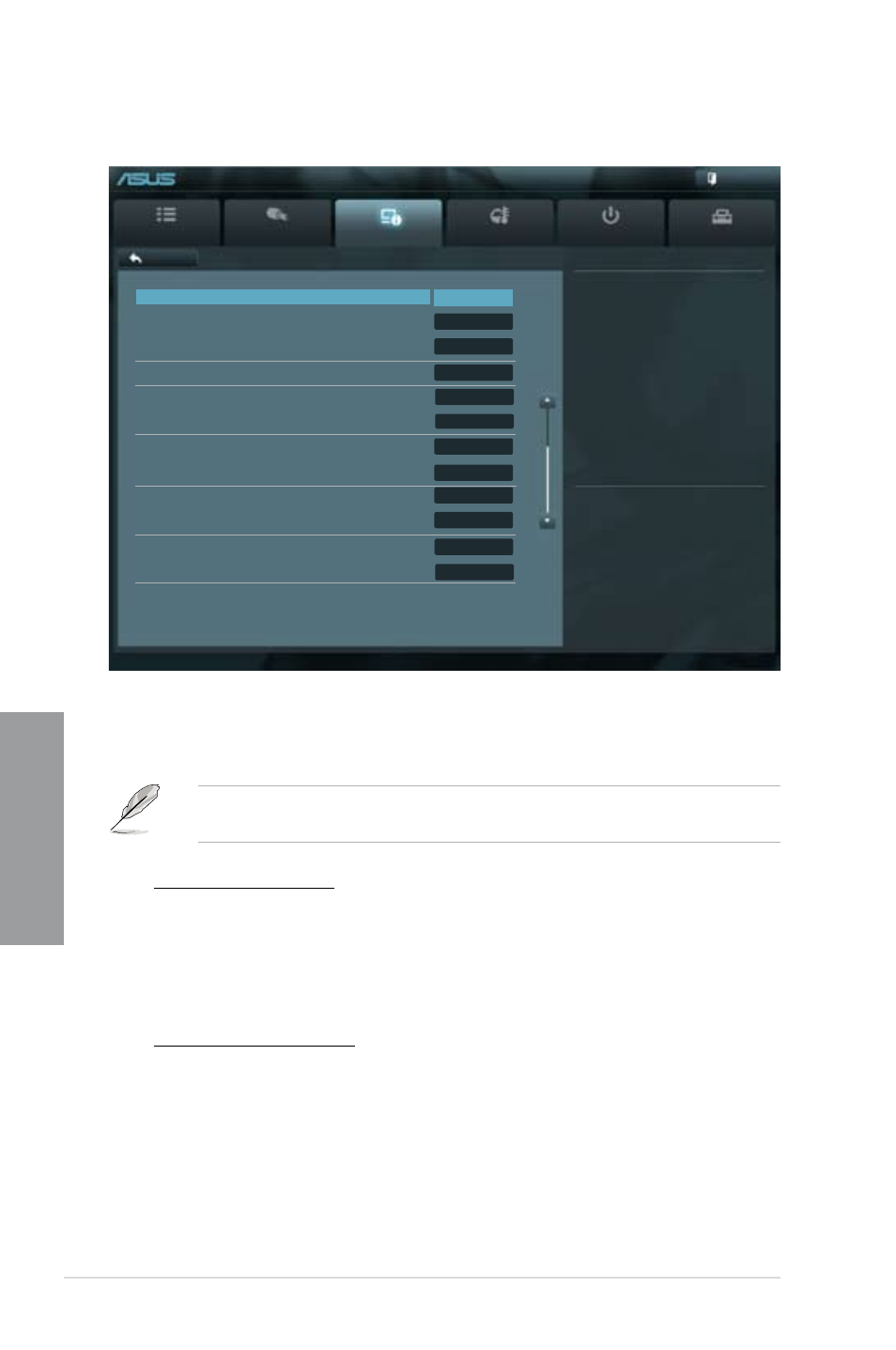

UEFI BIOS Utility - Advanced Mode
HD Audio Controller Enabled
Front Panel Type HD
SPDIF Out Type SPDIF
PCI Express X16_3 slot (black) bandwidth) X1 mode
ASM1061 Storage Controller (Rear) Enabled
ASM101 Storage OPROM Enabled
ASM1061 Storage Controller (Front) Enabled
ASM1061 Storage OPROM Enabled
ASmedia USB 3.0 Controller (USB3_E12) Enabled
ASmedia USB 3.0 Battery Charging Support Enabled
Intel LAN Controller Enabled
Intel PXE OPROM Disabled
