3.2.2 Advanced Mode
The Advanced Mode provides advanced options for experienced end-users to configure
the BIOS settings. The figure below shows an example of the Advanced Mode. Refer to the
following sections for the detailed configurations.
To access the EZ Mode, click Exit, then select ASUS EZ Mode.
Menu bar
The menu bar on top of the screen has the following main items:
Main For changing the basic system configuration
Ai Tweaker For changing the overclocking settings
Advanced For changing the advanced system settings
Monitor
For displaying the system temperature, power status, and changing the
fan settings.
Boot For changing the system boot configuration
Tool For configuring options for special functions
Exit For selecting the exit options and loading default settings

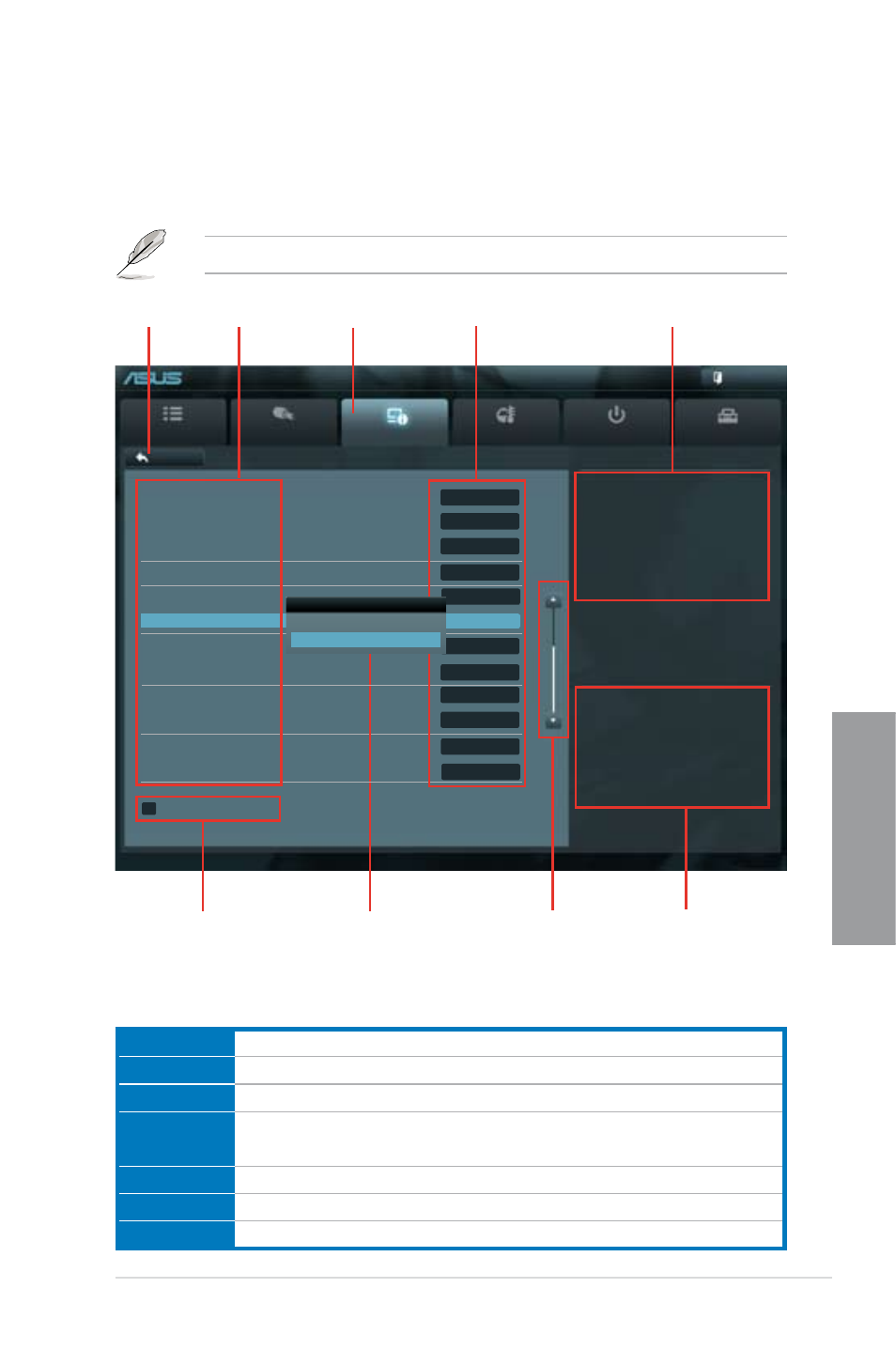

Navigation keys
General help Menu bar
Submenu item
Configuration fields
Scroll bar Pop-up window
Menu items
Main Ai Tweaker Advanced Monitor Boot Tool
Exit
Version 2.10.1208. Copyright (C) 2012 American Megatrends, Inc.
Enabled/Disabled ASM1061 Storage
OPROM
→← : Select Screen
↑↓ : Select Item
Enter: Select
+/-: Change Opt.
F1: General Help
F2: Previous Values
F5: Optimized Defaults
F10: Save ESC: Exit
F12: Print Screen
Back Advanced\ Onboard Devices Configuration >
UEFI BIOS Utility - Advanced Mode
Back button
HD Audio Controller Enabled
Front Panel Type HD
SPDIF Out Type SPDIF
PCI Express X16_3 slot (black) bandwidth) X1 mode
ASM1061 Storage Controller (Rear) Enabled
ASM101 Storage OPROM Enabled
ASM1061 Storage Controller (Front) Enabled
ASM1061 Storage OPROM Enabled
ASmedia USB 3.0 Controller (USB3_E12) Enabled
ASmedia USB 3.0 Battery Charging Support Enabled
Intel LAN Controller Enabled
Intel PXE OPROM Disabled
ASM1061 Storage OPROM
Disabled
Enabled
