Chapter 2 – Asus SABERTOOTH Z77 User Manual
Page 55
ASUS SABERTOOTH Z77
2-35
Chapter 2
2.

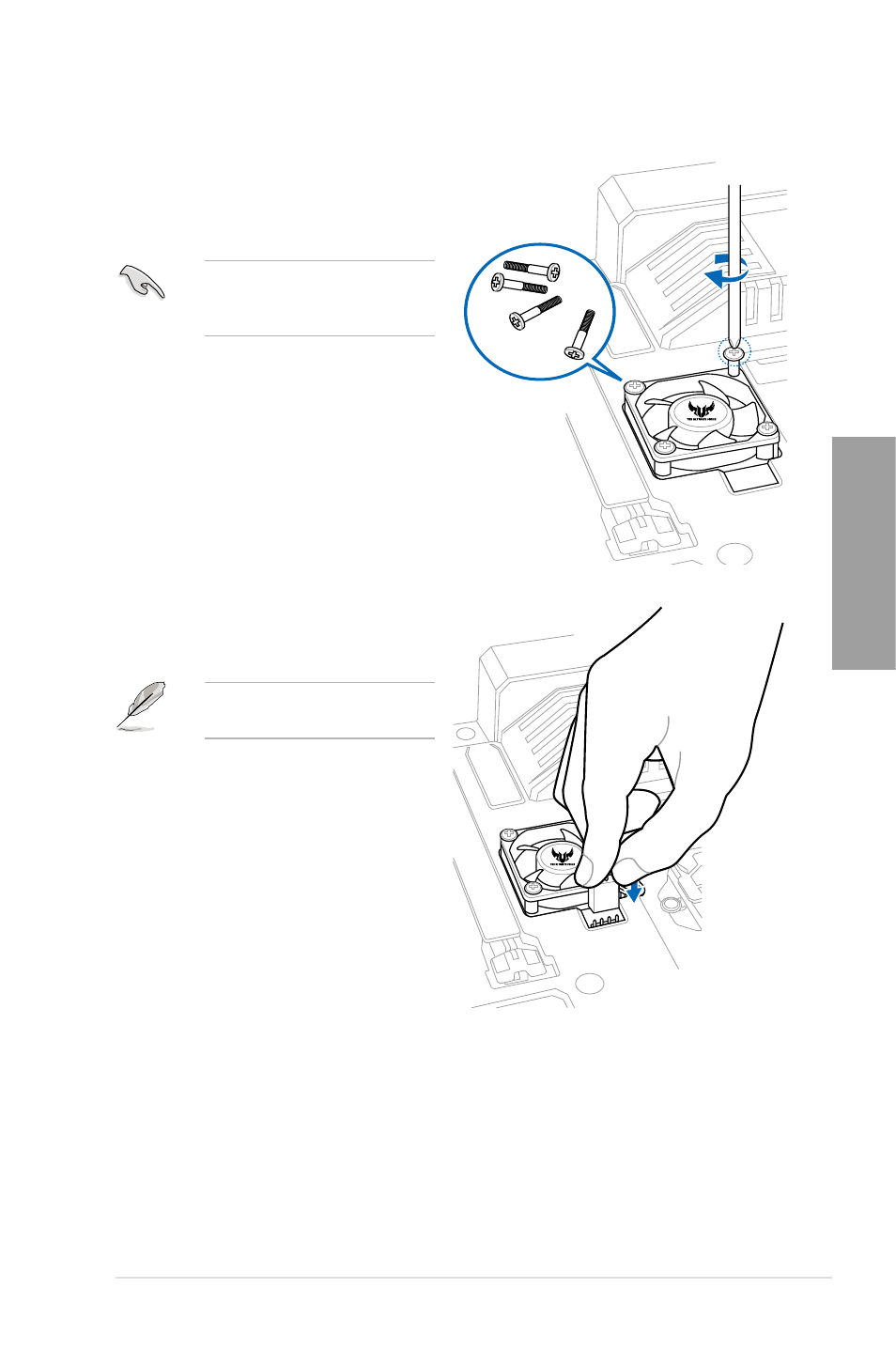

Place the fan into the socket, ensuring
that the TUF logo is facing up, and
screw to lock in place using the four
bundled long screws.
Keep the fan cable hidden under
the thermal armor to prevent
clutter.
3.
Connect the fan cable to the
assistant fan (ASST_FAN2) connector
on the motherboard.
The screwdriver is not included in
the package.
