ASUS SABERTOOTH Z77 2-19
Chapter 2
3. ASMedia ® Serial ATA 6Gb/s connectors (7-pin SATA6G_E1/E2 [gray])
These connectors connect to Serial ATA 6Gb/s hard disk drives via Serial ATA 6Gb/s
signal cables.
• The SATA6G_E1/E2 (gray) connectors do not support ATAPI devices.
• You must install Windows ® XP Service Pack 3 or later versions before using Serial ATA
hard disk drives.
• For regular usage, the SATA6G_E1/E2 connectors are recommended for data drives.
• When using hot-plug and NCQ, set the ASMedia Storage Controller item in the BIOS
to [Enabled]. Refer to section 3.5.5 Onboard Devices Configuration for details.

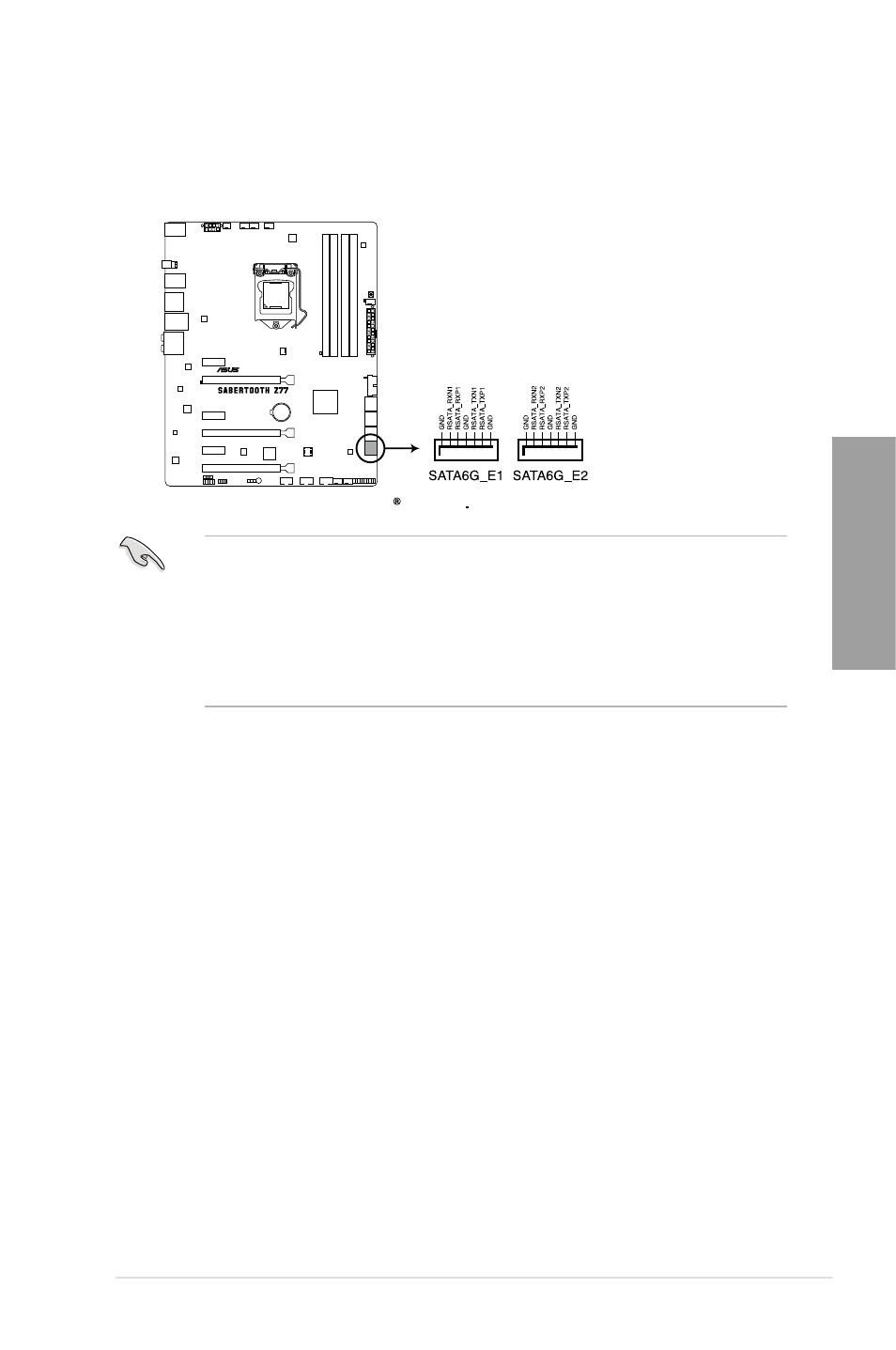

SABERTOOTH Z77 ASMedia SATA 6.0 Gb/s connectors
